LV-671 User’s Manual Hardware Setup
GPIO Interface
33
2.12
The board offers 16-bit digital I/O to customize its configuration to your control needs.
For example, you may configure the digital I/O to control the opening and closing of the
cash drawer or to sense the warning signal from a tripped UPS.

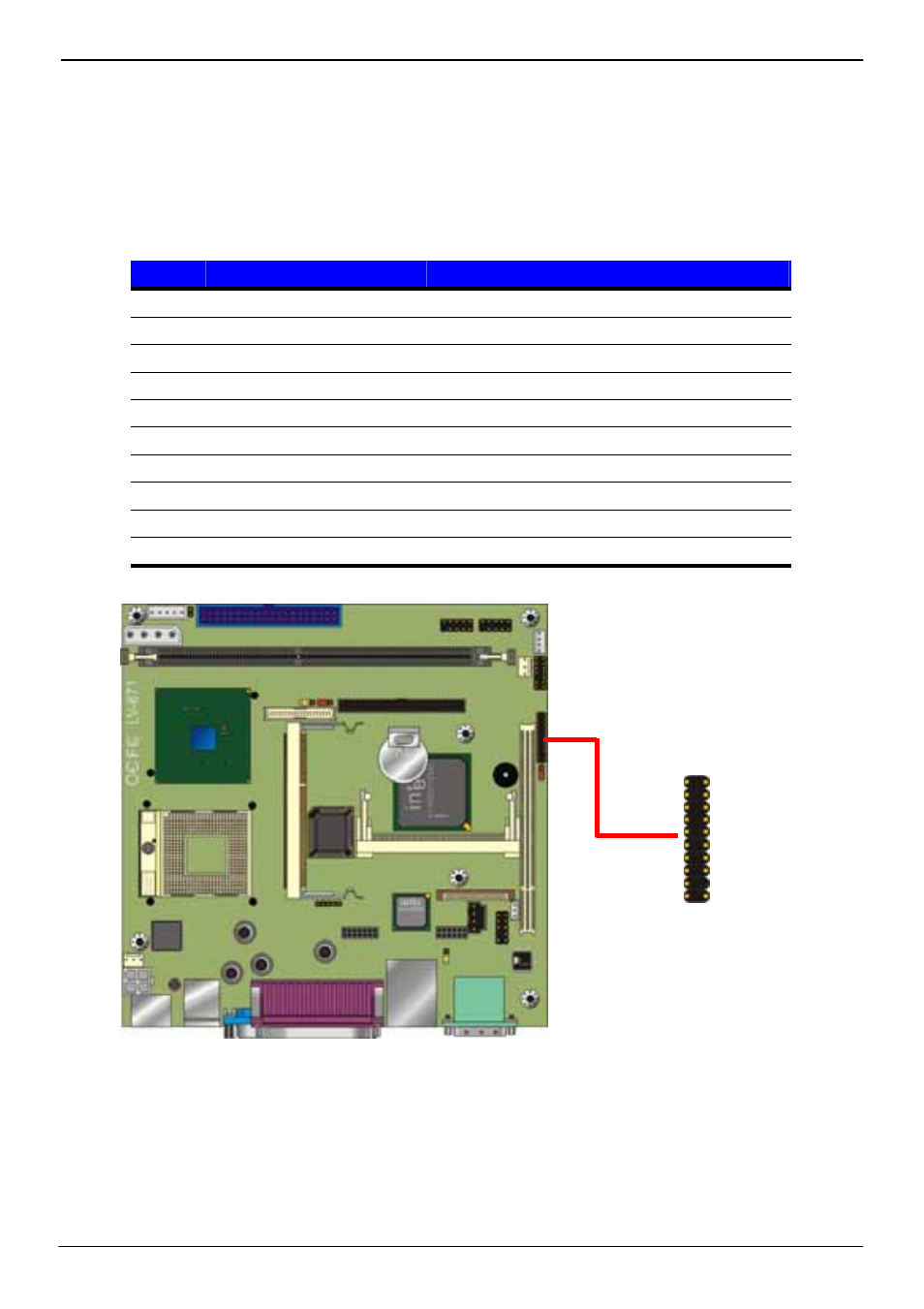

Connector: CN_DIO
Type: 20-pin (10 x 2) header
Pin
Description
Pin
Description
1 GP10
2 GP20
3 GP11
4 GP21
5 GP12
6 GP22
7 GP13
8 GP23
9 Ground
10
Ground
11 GP14
12 GP24
13 GP15
14 GP25
15 GP16
16 GP26
17 GP17
18 N/C
19 12VDU
20 5VDU
1
20
CN_DIO
