LV-671 User’s Manual Hardware Setup

CPU Installation

2.4

2.4.1

The board supports Intel Pentium M/ Celeron M processor with 400MHz of front side bus,

512KB/1MB/2MB of L2 cache, there are two package type of the processor, 478-pin PGA

for socket479 onboard version; 479-pin BGA for embedded processor version. Please

check installation steps below for onboard socket479 version.

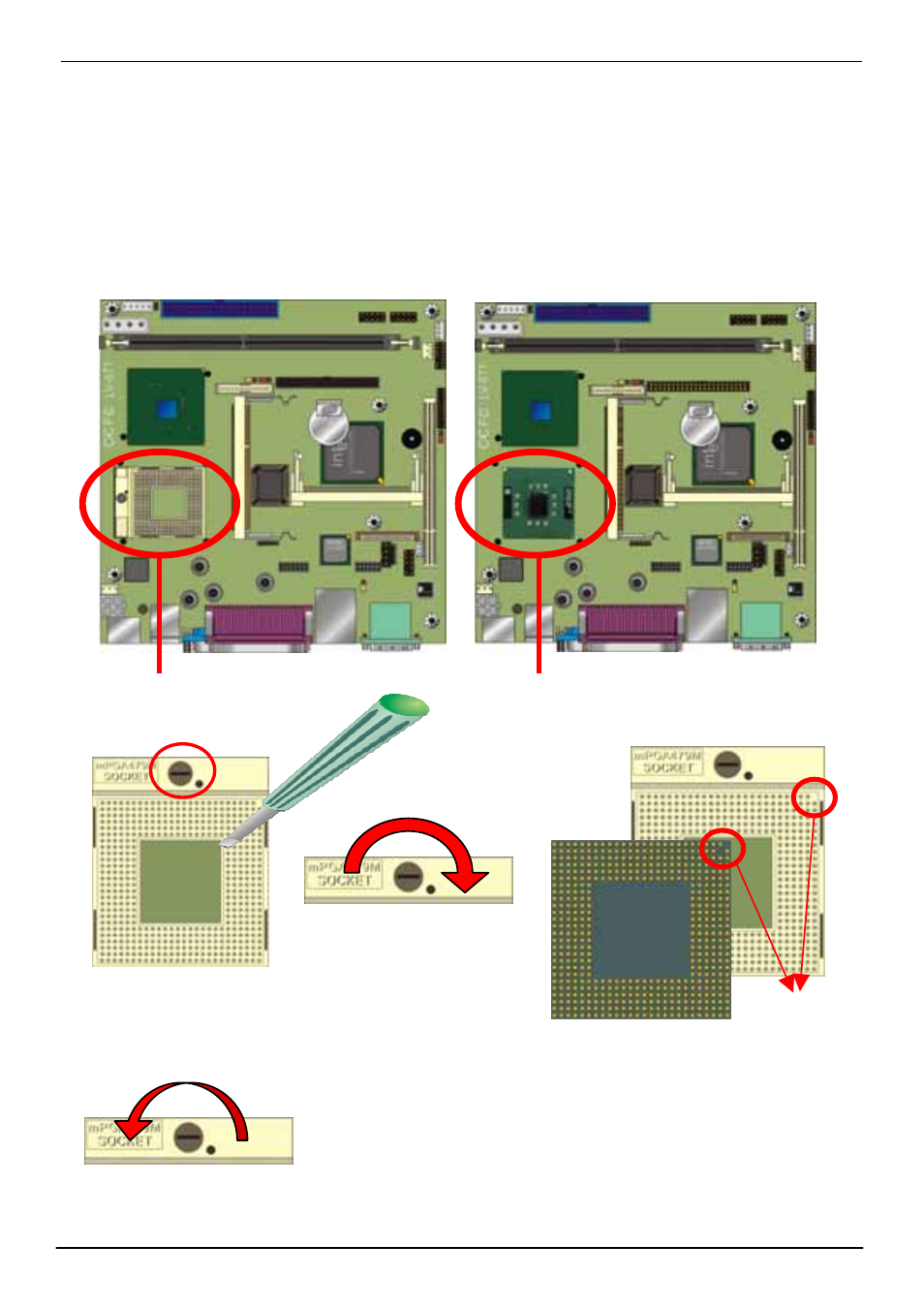

Socket479 for Intel Pentium M/Celeron M

With 478-pin PGA

Embedded Intel Pentium M/Celeron M

With 479-pin LV/ULV

1. Use the flat-type

screw drive to unlock

the CPU socket

Unlock way

Check point

2. Follow the pin direction to install

the processor on the socket

3. Lock the socket
