LV-671 User’s Manual Hardware Setup
IDE Interface 22
2.6
The board supports two IDE interface up to 4 ATAPI devices, base on Intel ICH4, the IDE
interface supports ATA66/100 ATAPI drives. The IDE1 supports +5V on pin-20 for DOM
(Disk on Module), the jumper JDOM can let you select enable/disable this support.
Jumper: JDOM
Type: onboard 3-pin header
JDOM Mode
ON IDE1 pin-20 5V power supply enable
OFF No 5V power supply on IDE1 pin-20
Default setting
JDOM
1
2
39
40

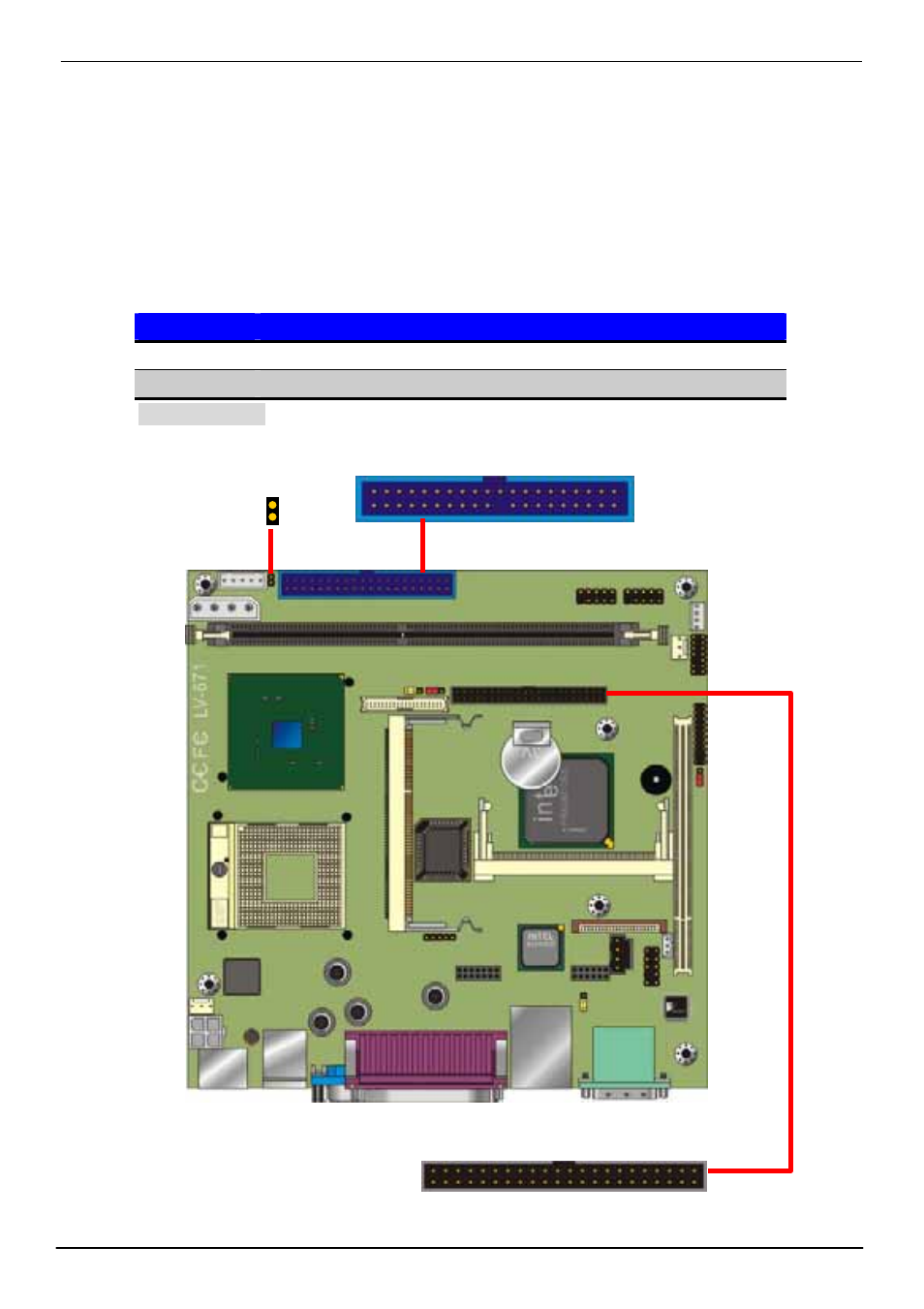

IDE1 (40-pin pitch=2.54)
1
2
43
44
IDE2 (44-pin pitch=2.00)
