LV-671 User’s Manual Hardware Setup

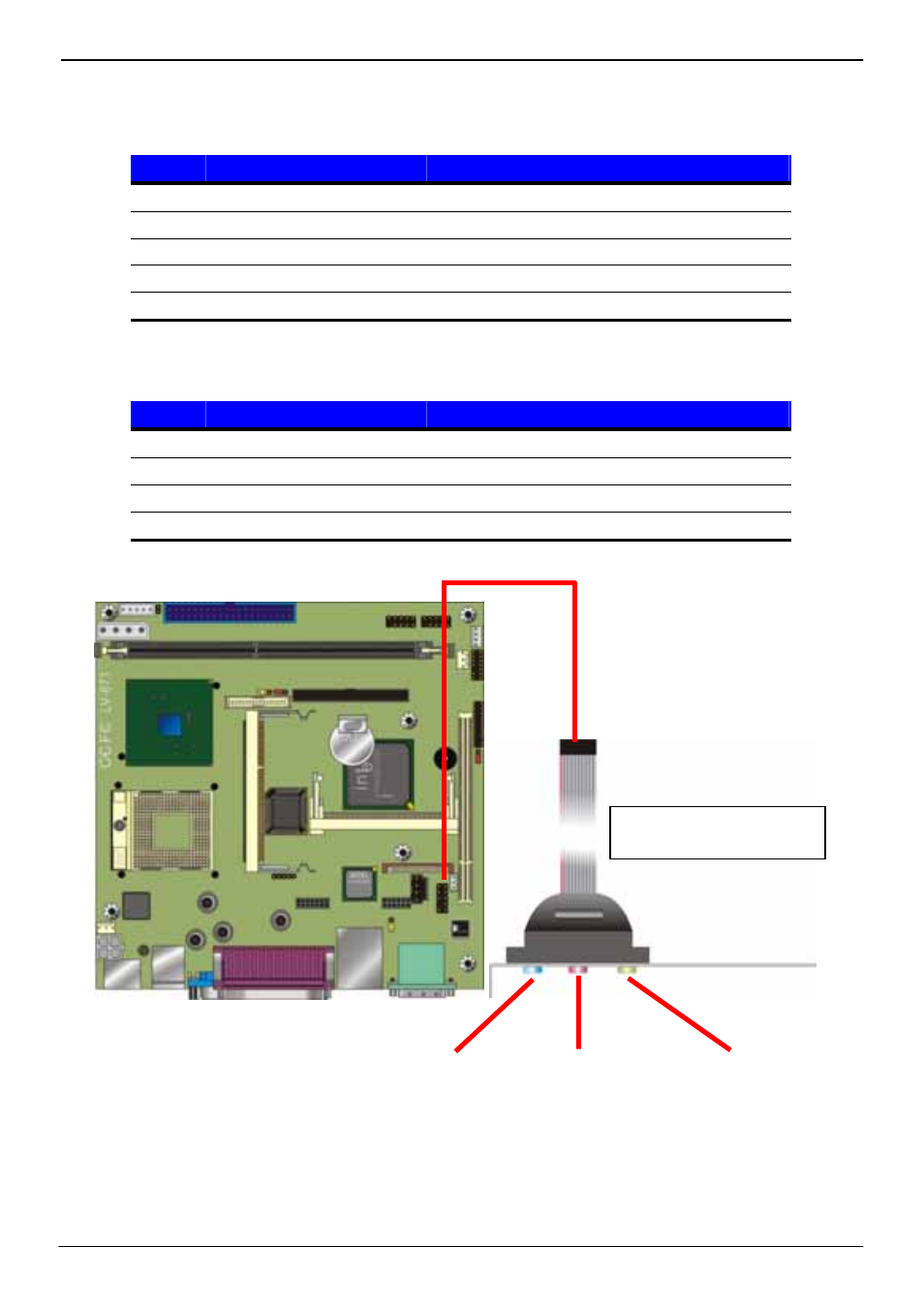

Audio Interface 29
Connector: CN_AUDIO
Type: 10-pin (2 x 5) 2.54-pitch header
Pin Description Pin Description
1 Line – Right 2 Ground
3 Line – Left 4 MIC
5 MIC 6 Ground
7 N/C 8 Line Out – Left
9 Line Out – Right 10 Ground
Connector: CDIN
Type: 4-pin header
Pin Description
1 CD – Left
2 Ground
3 Ground
4 CD – Right
Optional Audio Cable
Line-in/Rear MIC-IN/Center Line-out/Front
