LV-671 User’s Manual Hardware Setup
Compact Flash Interface 23

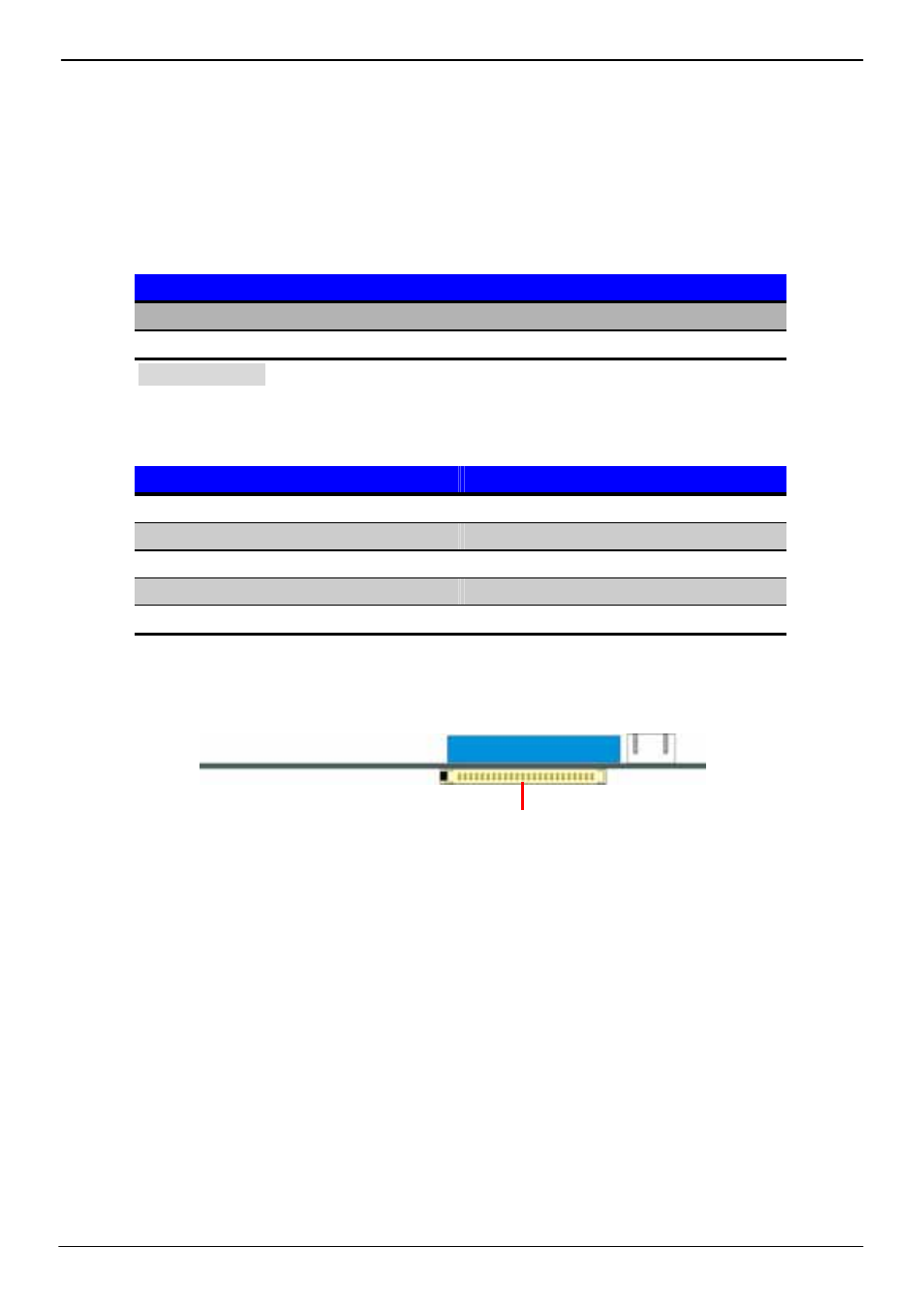

2.7 Compact Flash Interface
The board supports Compact Flash Type I socket for storage flash disk only, the jumper
JCFSEL can let you to setup the flash card operate on secondary master or slave mode.
Jumper: JCFSEL
Type: onboard 3-pin header
JCFSEL Mode
1-2 Master
2-3 Slave
Default setting
Tested Compact Flash Disk
Manufacture Capacity
LEXAR 16MB
DigitFab 32MB
RiDATA 256MB
HAGIWARA SYS-COM 512MB
Sandisk 2GB
CF
