LV-671 User’s Manual Hardware Setup

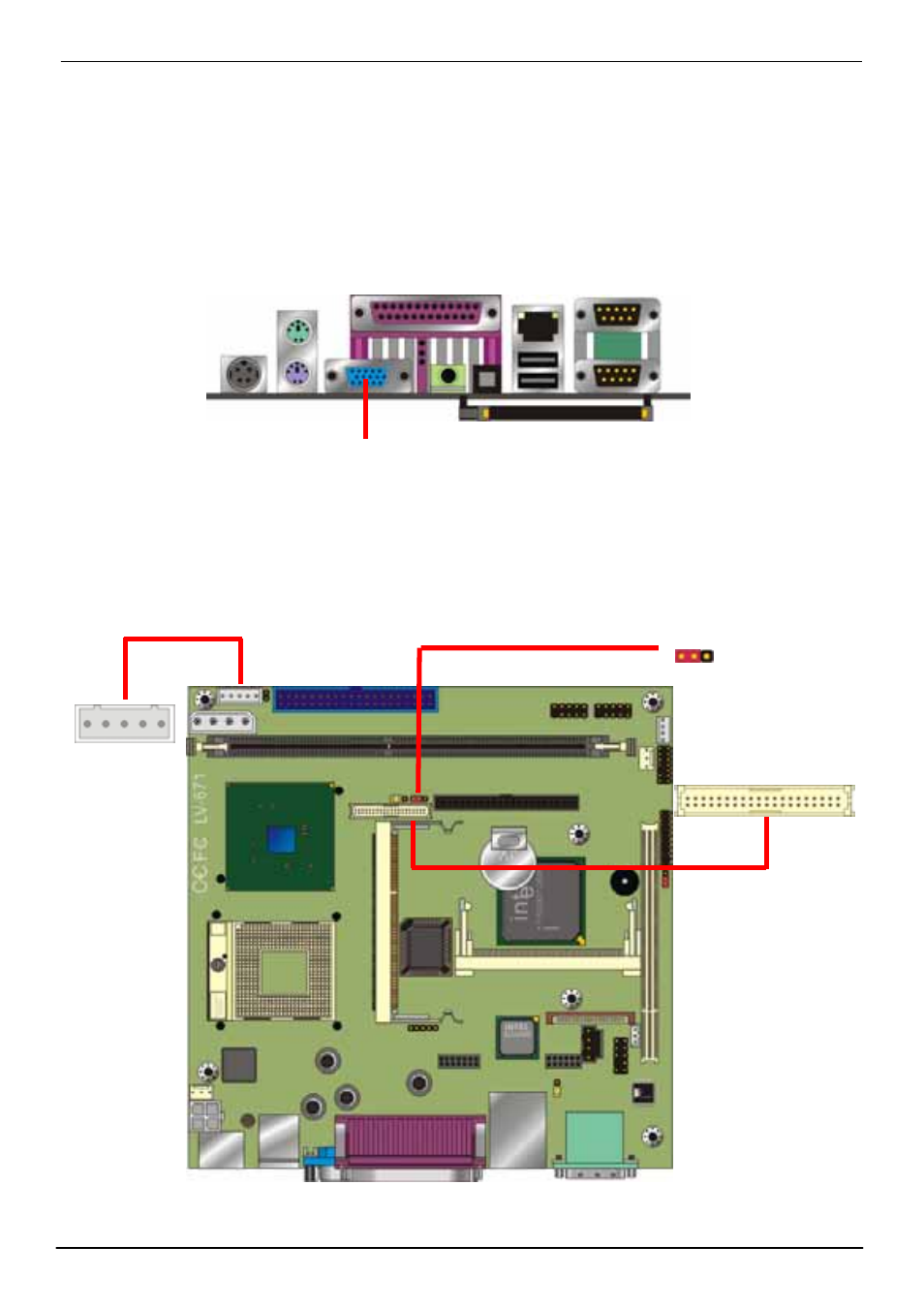

Display Interface
24
2.8
2.8.1
The board is integrated with Intel 855GM GMCH chipset built-in Intel Extreme
Graphics 2 with 266 MHz VGA core, 256-bit 3D engine and Intel Dynamic Video Memory
up to 64MBytes shared with system memory. The CRT / analog VGA interface includes
one external DB15 female connector on bracket on board.
2.8.2
The board’s digital video interface provides LVDS flat panel support. The built-in 18/24-bit
dual channel LVDS interface offers the economical solution for LVDS-based LCD display.
VGA
5
1
CN_INV
1
40
1
3
JVLCD
CN_LVDS
