LV-671 User’s Manual Hardware Setup
Display Interface 27

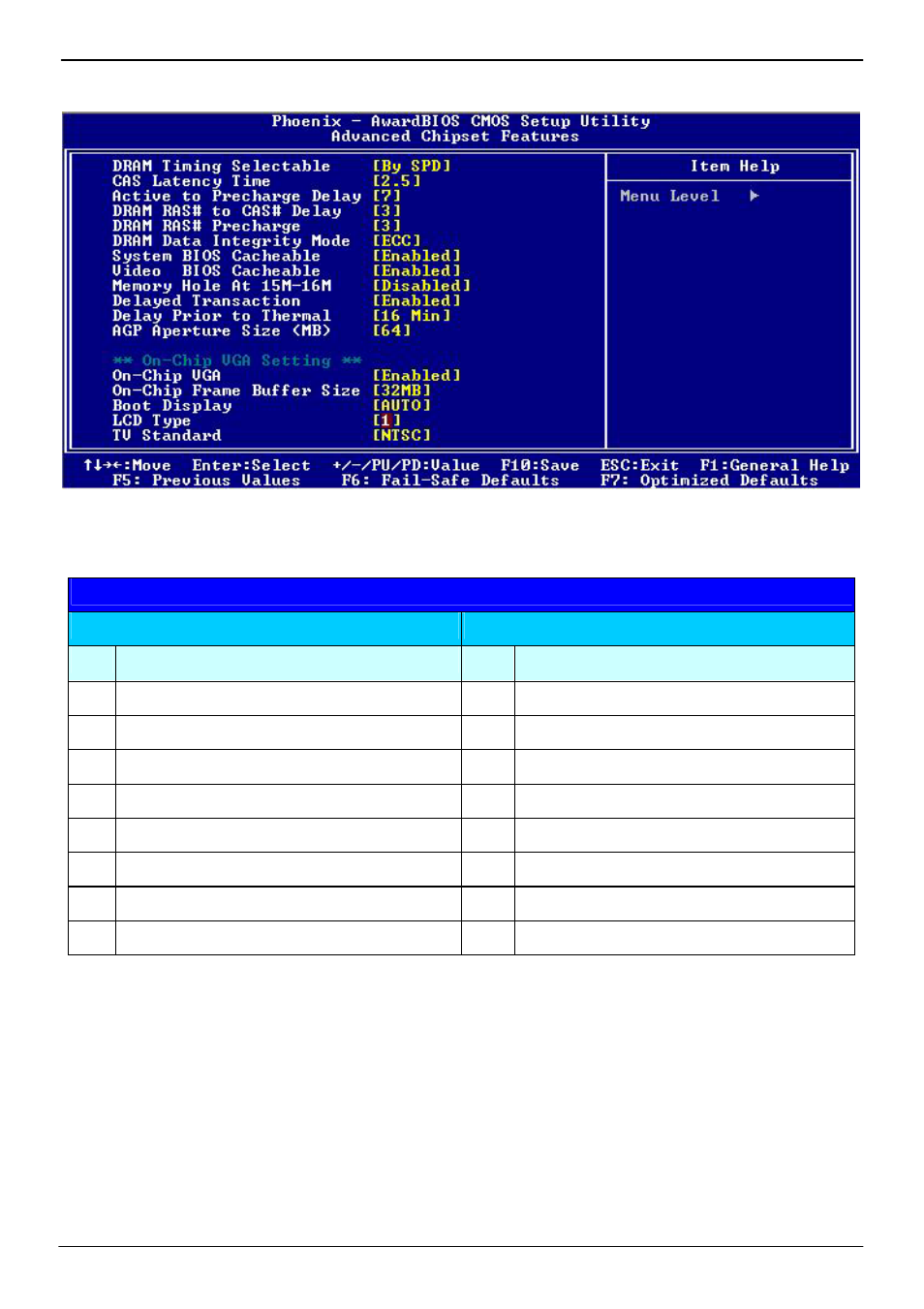

After setup the devices well, you need to select the LCD panel type in the BIOS.
The panel type mapping is list below:
BIOS panel type selection form
For 18-bit color For 24-bit color
NO. Output format NO. Output format
1 640 x 480 8 1024 x 768
2 800 x 600 9 1280 x 1024 Dual Channel
3 1024 x 768 10 1400 x 1050 Dual Channel
4 1280 x 1024 11 1600 x 1200 Dual Channel
5 1400 x 1050 Dual Channel @ 108Mhz 13 1024 x 768 Dual Channel
6 1400 x 1050 Dual Channel @ 122Mhz 14
7 1600 x 1200 Dual Channel 15 1280 x 768Dual Channel
12 1024 x 768 Dual Channel
