Enjoying Movies and Music in the Remote Zone (Zone 2/3)
—Continued

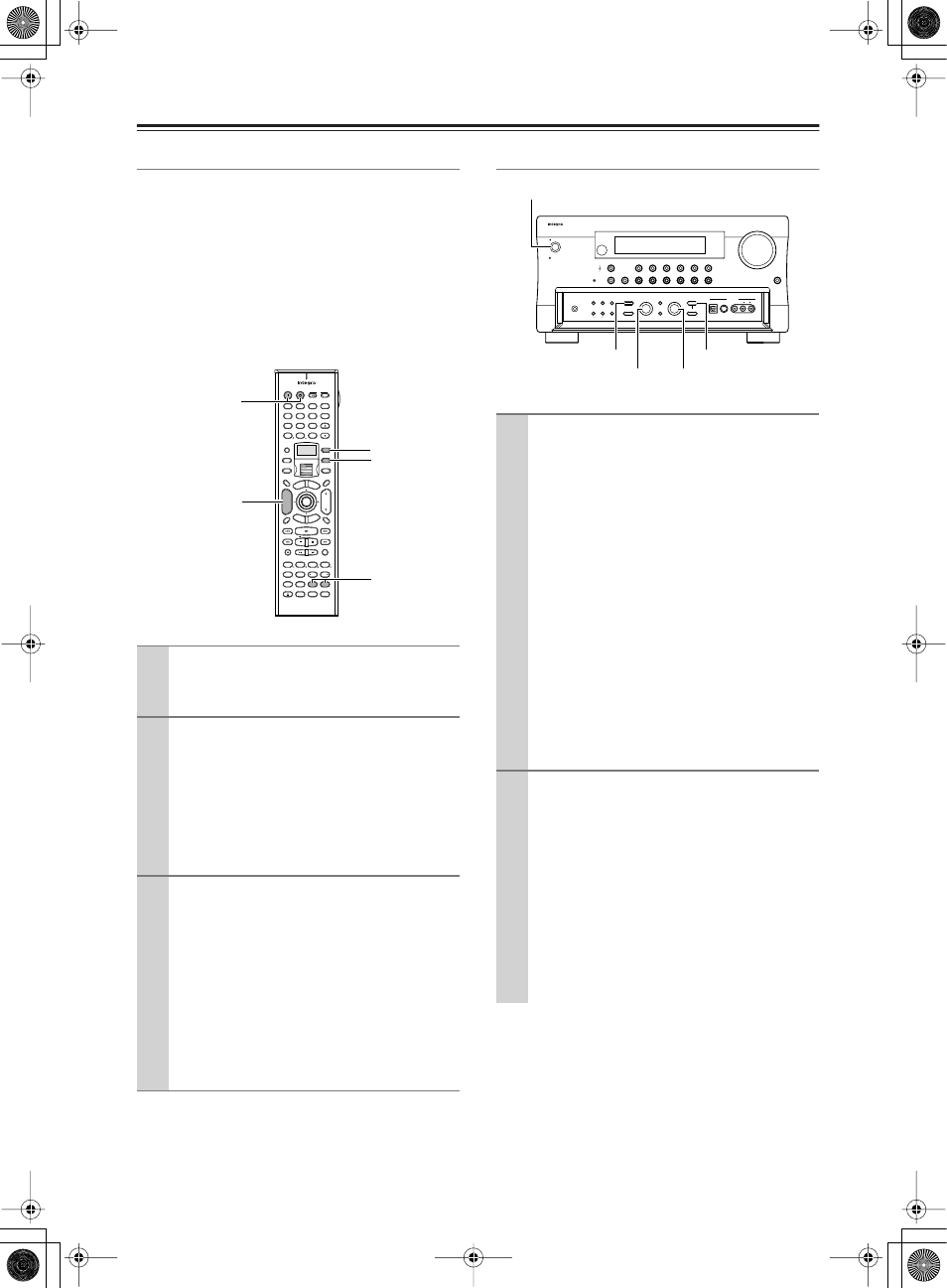

Operating with the Remote Controller
When operating with the remote controller, how to
operate depends on the location of Zone 2 or Zone 3, or
the distance from the DTR-10.5.
• Point the remote controller at the infrared receiver on
the DTR-10.5, and then operate the controller.
• Install a remote controller sensor in Zone 2 or Zone 3
through an IR connection (See page 48).
• Switch the Transmission Signal Format to RF (Radio
Frequency) (depending on the destination) (See page
141).
Operating on the DTR-10.5
1
Power on the devices in Zone 2 or Zone 3.
Press the [Zone 2] or [Zone 3] button, and then
the [On] button.
2
Select a source.
Rotate the scroll wheel to select a source while
the [Zone 2] or [Zone 3] button is lighted (if the
button is not lighted, press the [Zone2] or [Zone
3] button to light it).
• When you have selected the tuner, you can
choose a preset channel with the [CH Disc
+/–] button.
3
Adjust the volume level.
Press the [Zone 2] (or [Zone 3]) button, and
within 5 seconds, press the [Level –/+] button to
adjust the volume level.
Notes:
• When the pre-main amplifier or receiver is
connected, the volume level should be adjusted
at the connected component side.
• When not using Zone 2 or Zone 3, press the
[Zone 2] (or [Zone 3]) button, and then press
the [Standby] button.
ABC
DEF
PQRS
TUV
WXYZ
GHI
JKL
MNO
Caps
Delete
Language
Loca t ion
Album
Ar tist
Genre
Playlist
Repeat
Video
Music
@.-'/
--/---
Direct Tuning
#
Custom
Display
Dimmer
T V
Input
Sleep
Random
Main A Main B
Muting
Angle
Subtitle
Audio
Memory
Search
A-B
Repeat
On
Standby
T V
T V CH
T V VOL
RC-556M
Exit
Gu
ide
Rec
Last Memory
Prev
CH
Enter
Set
up
Retu
rn
Test Tone
CH SEL
Pure A
Surround
Direct
Stereo
Re-EQ
THX
All CH ST
Level +
Level -
L Night
Audio SEL
DSP
DSP
+10
0
Clear
1
2
3
4
5
6
7
8
9
Input
To
p M
enu
Men
u
VOL
CH
Disc
I
+
-
+
-
Zone 3
Zone 2
Input
Mode
Macro
Se
rve
r
Aud
io
A
D
J
CH Disc +/–
On, Standby
Level –/+
Zone 2
Zone 3
1
Turn on the power supply to the DTR-10.5,
and then select a source for Zone 2 or
Zone 3.
For Zone 2, press the [Zone 2] button, and then
select the source with the [Select/Preset] dial.
For Zone 3, press the [Rec/Zone 3] button, and
then, select the source with the [Control/Tuning]
dial.
When you press the [Zone 2] or [Rec/Zone 3]
button, the [Standby] indicator on the DTR-10.5
blinks for five seconds, so perform operations
while it is blinking.
The source button for Zone 2 lights in green and
the source buttton for Zone 3 lights in red.
To switch the source for Zone 2 (or Zone 3) and
the main room simultaneously:
Repeatedly press the [Zone 2] (or [Rec/Zone 3])
button to display “Z2Sel:SOURCE,” and then
select the source.
2
Adjust the volume level.
For Zone 2, press the [Level] button under the
[Zone 2] button, and then adjust with the [Select/
Preset] dial.
For Zone 3, press the [Level] button under the
[Rec/Zone 3] button, and then adjust with the
[Control/Tuning] dial.
Notes:
• When a pre-main amplifier or receiver is
connected to the DTR-10.5, the volume level
should be adjusted at the connected component
side.
Phones
Listening
Mode
Audio
Selector
Tone
Zone 2
Select/ Preset
Push To Enter
Setup
Control / Tuning
Push To Enter
Rec/ Zone 3
Digital
S Video
Video
Audio
L
R
Video 7 Input
Level
Exit
Level
Dimmer
Memory
Tuning
Mode
Clear
Pure Audio
Open
DVD
Display
Tape 1
Tape 2
Tuner
Phono
C D
Net Audio
Video 1
Video 2
Video 3
Video 4
Video 5
Video 6
Video 7
Standby
Master Volume
Rec/ Zone 3 Red )
(
Main Blue
(
)
Zone 2 Green
(
)
Standby/On
Standby/On
Rec/Zone 3
Zone 2
Control/Tuning
Select/Preset
