Hardware Installations and Upgrades
Intel ® Server Chassis SR1450 User Guide 51
Replacing the Intel
®
Local Control Panel
Your server must be operated with a control panel installed. The steps for replacing the Intel Local
Control Panel are listed below.
CAUTION
The control panel is NOT hot swappable. Before removing or replacing the
control panel, you must first take the server out of service, turn off all
peripheral devices connected to the system, turn off the system by
pressing the power button, and unplug the AC power cord(s) from the
system or wall outlet.
1. Observe the safety and ESD precautions at the beginning of this book. See “Safety
Information.”
2. Power down the server and unplug all peripheral devices and the AC power cable(s).
3. Remove the chassis cover. For instructions, see “
Removing the Chassis Cover .”
4. Remove the USB cable from the routing channel.
5. Press the latch at the back of the control panel (See letter “A” in the figure below) and pull the
control panel out several inches.
6. Disconnect the front panel cable and the USB cable from the front panel control board at the
rear of the control panel.
7. Slide the control panel out through the front of the chassis. See letter “B” in the figure.
TP01620
A
B

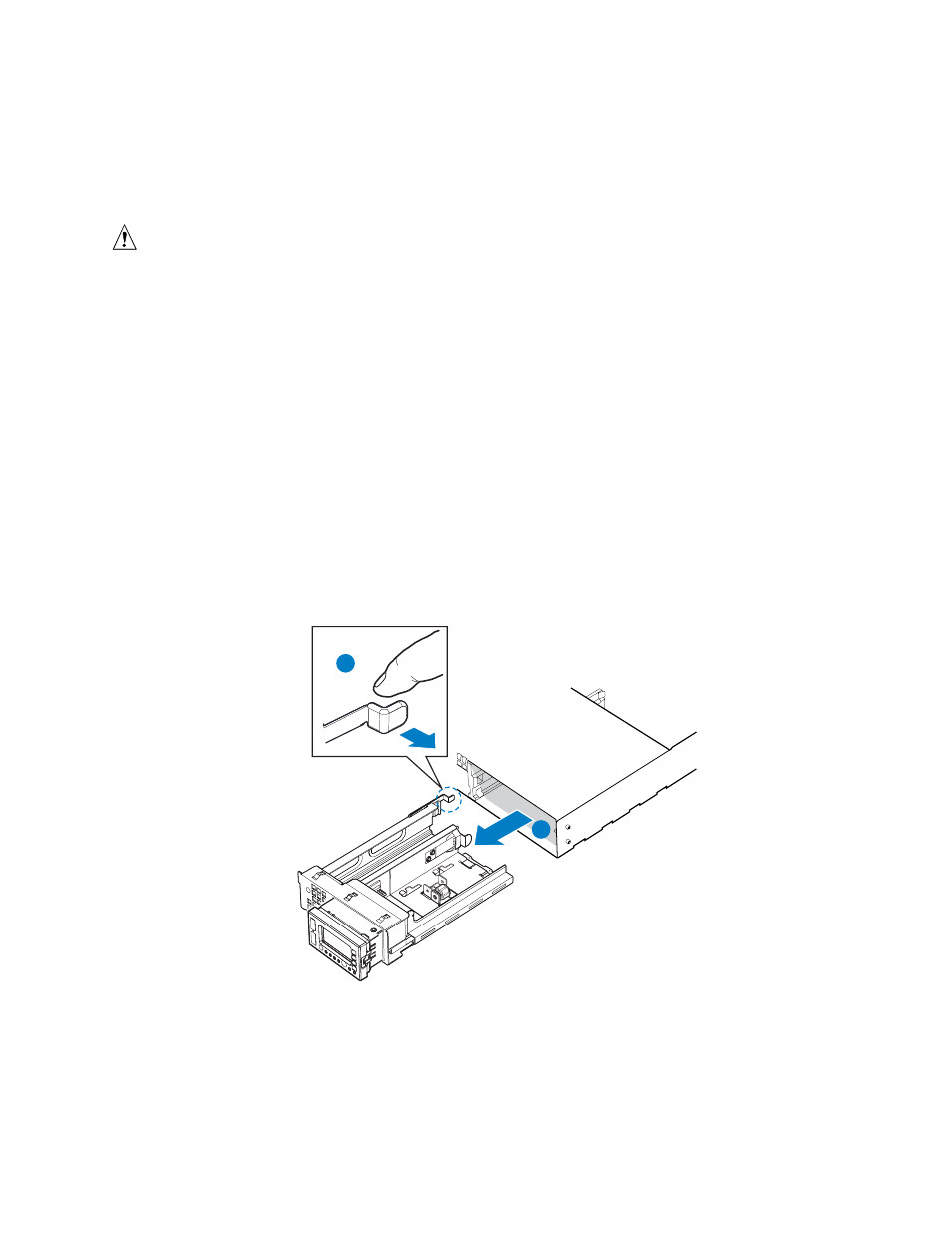

Figure 38. Removing the Intel ® Local Control Panel from the Chassis
