7. Slide the floppy drive into the drive carrier, rear of the drive first, with the underside of the
drive facing down.
8. Line up the holes in the side of the drive with the holes in the carrier. See letter “A” in the
figure below.
TP01610
A
A

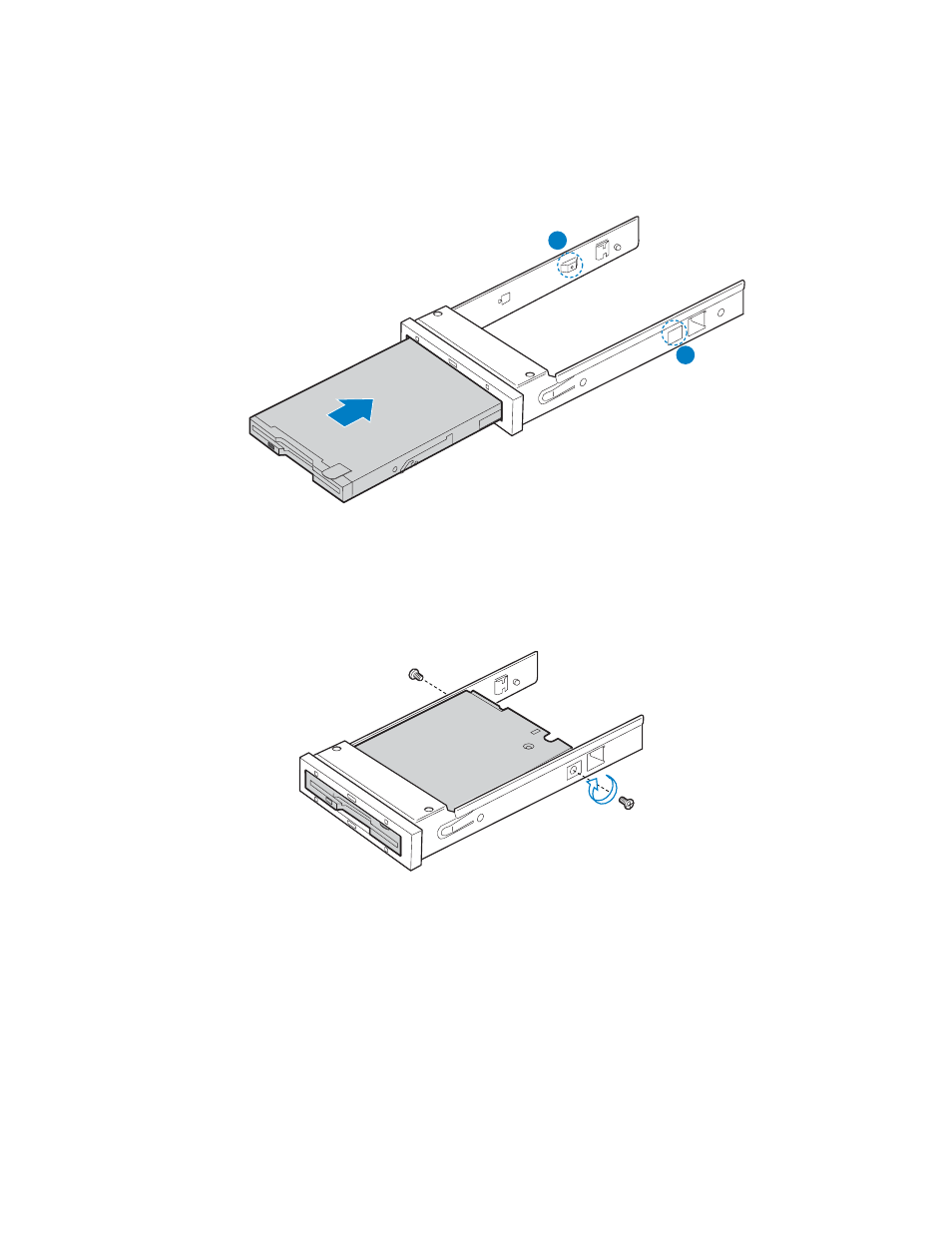

Figure 25. Inserting a Drive into the Floppy Conversion Kit Carrier
9. Attach the floppy drive to the carrier with the screws that came with your floppy drive
conversion kit. One screw attaches at each side. See the figure below.
TP01323
Figure 26. Attaching a Drive to Floppy Drive Conversion Kit Carrier
