Hardware Installations and Upgrades
Intel
®
Server Chassis SR1450 User Guide
39

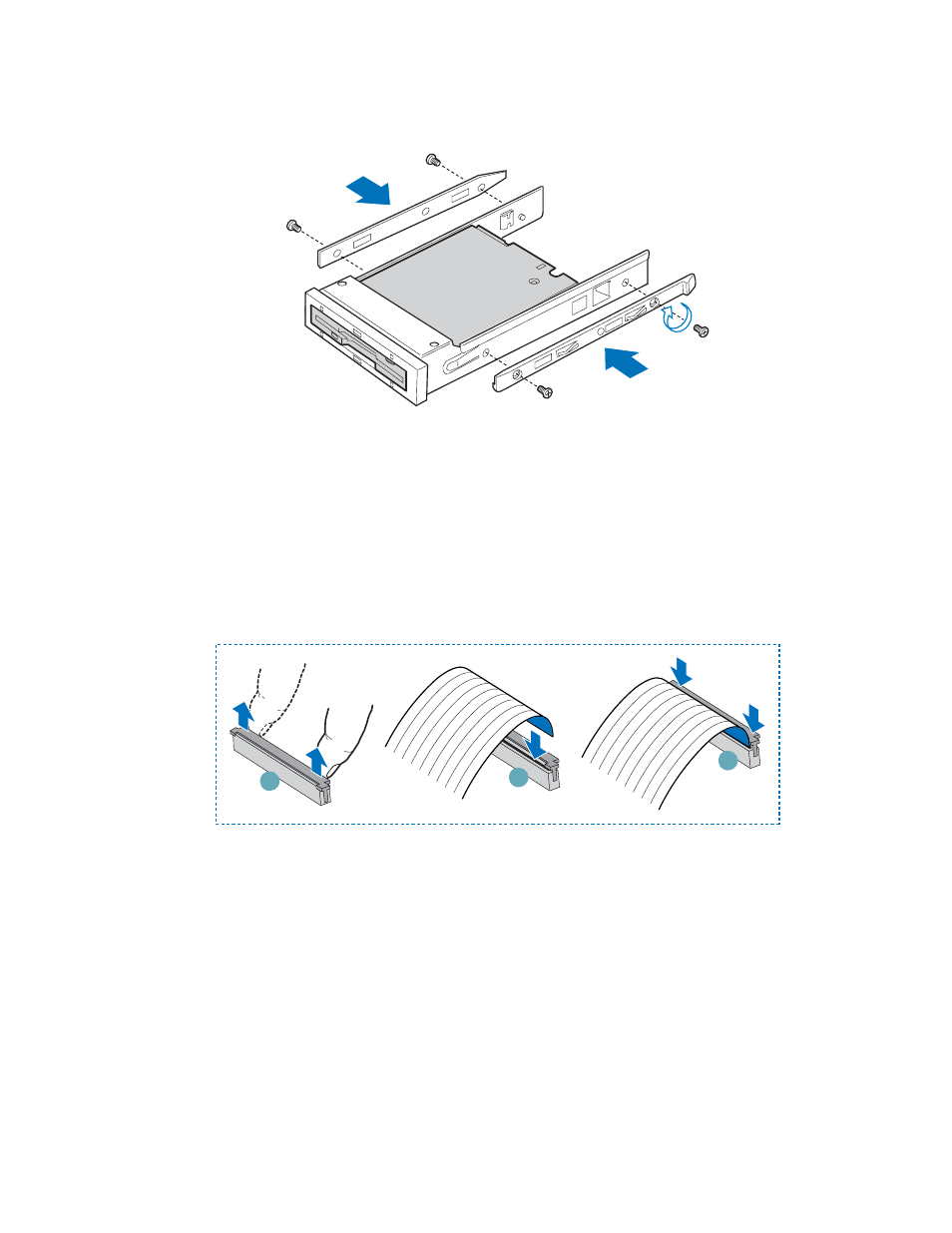

10. Reattach the slide rails onto floppy drive conversion kit carrier. See the figure below.
TP01309
Figure 27. Install the Rails onto the Floppy Drive Conversion Kit Carrier
11. Open the connector on the rear of the floppy drive by pulling up on the connector cover. See
letter “A” in the figure below.
12. Insert one end of the flat flex cable end into the floppy drive connector. See letter “B” in the
figure.
13. Push down on the connector cover to lock the cable into place. See letter “C” in the figure.
A
B
C
TP01311
Figure 28. Installing the Flat Flex Cable to the Floppy Drive
