Removing the Processor Air Duct
1. Observe the safety and ESD precautions at the beginning of this book. See “Safety
Information.”
2. Power down the server and unplug all peripheral devices and the AC power cable(s).
3. Remove the chassis cover. For instructions, see
“Removing the Chassis Cover.”
4. Lift the processor air duct from its location over the two processor sockets.
TP01596
Fan 4A/4B
Fan 3A/3B
Fan 2A/2B
Fan 1A/1B

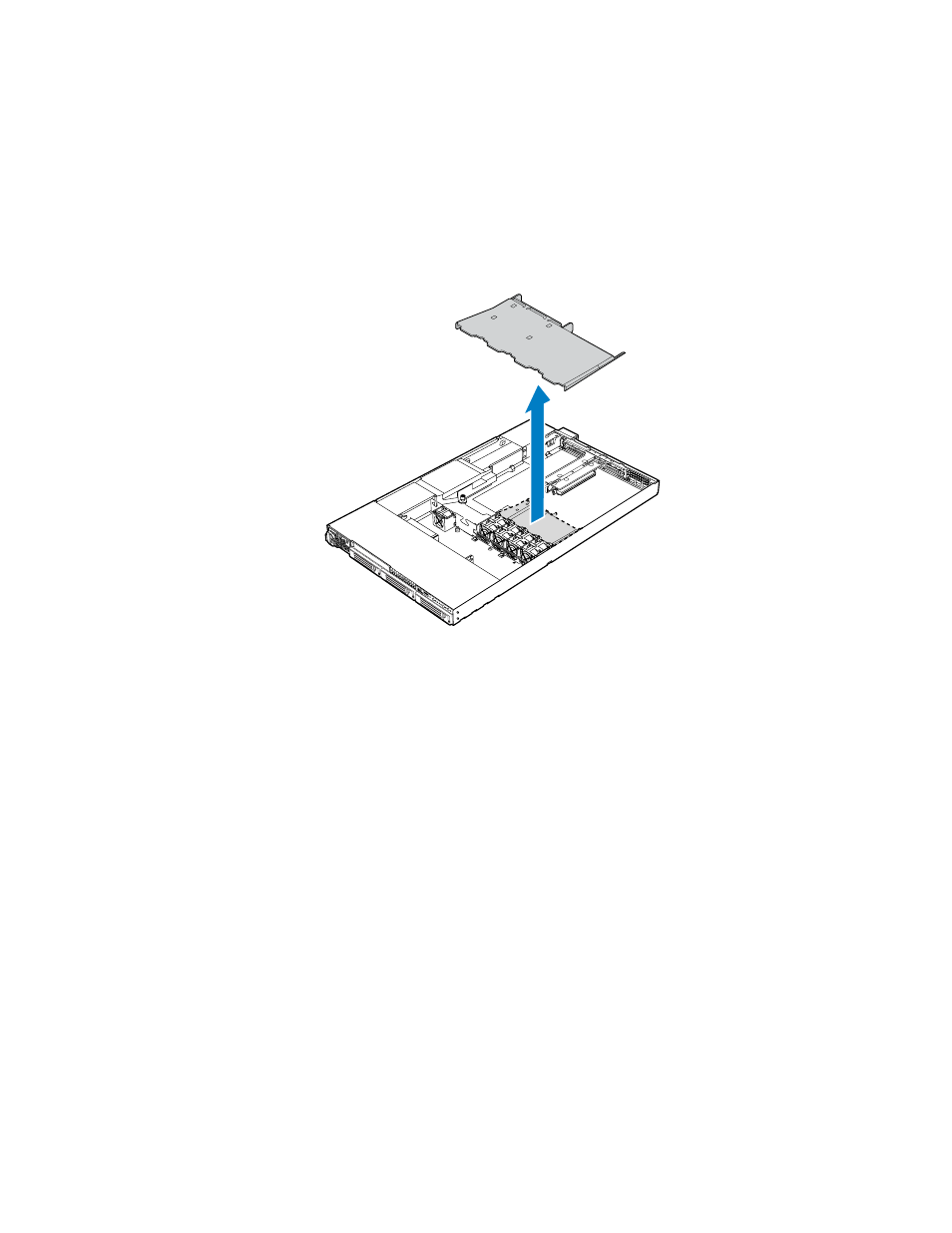

Figure 13. Removing the Processor Air Duct
Installing the Processor Air Duct
1. Observe the safety and ESD precautions at the beginning of this book. See “Safety
Information.”
2. Power down the server and unplug all peripheral devices and the AC power cable(s).
3. Remove the chassis cover. For instructions, see
“Removing the Chassis Cover.”
4. If you are installing the processor air duct for the first time after installing a second processor,
remove the tab on the back side of the processor air duct. See Figure 14.
