Hardware Installations and Upgrades
42
9. Slide the DVD-ROM / CD-ROM drive carrier into the chassis. See letter “A” in the figure
below.
10. Attach the 44-pin CD-ROM drive cable to the exposed side / back of the interposer board. See
letter “B” in the figure below.
11. Connect the loose end of the CD-ROM drive cable to the server board IDE connector. See
letter “C” in the figure below.
12. Connect the longest of the two device power cables coming from the backplane power
connector. See letter “D” in the figure below.
TP01614
B
D C
A

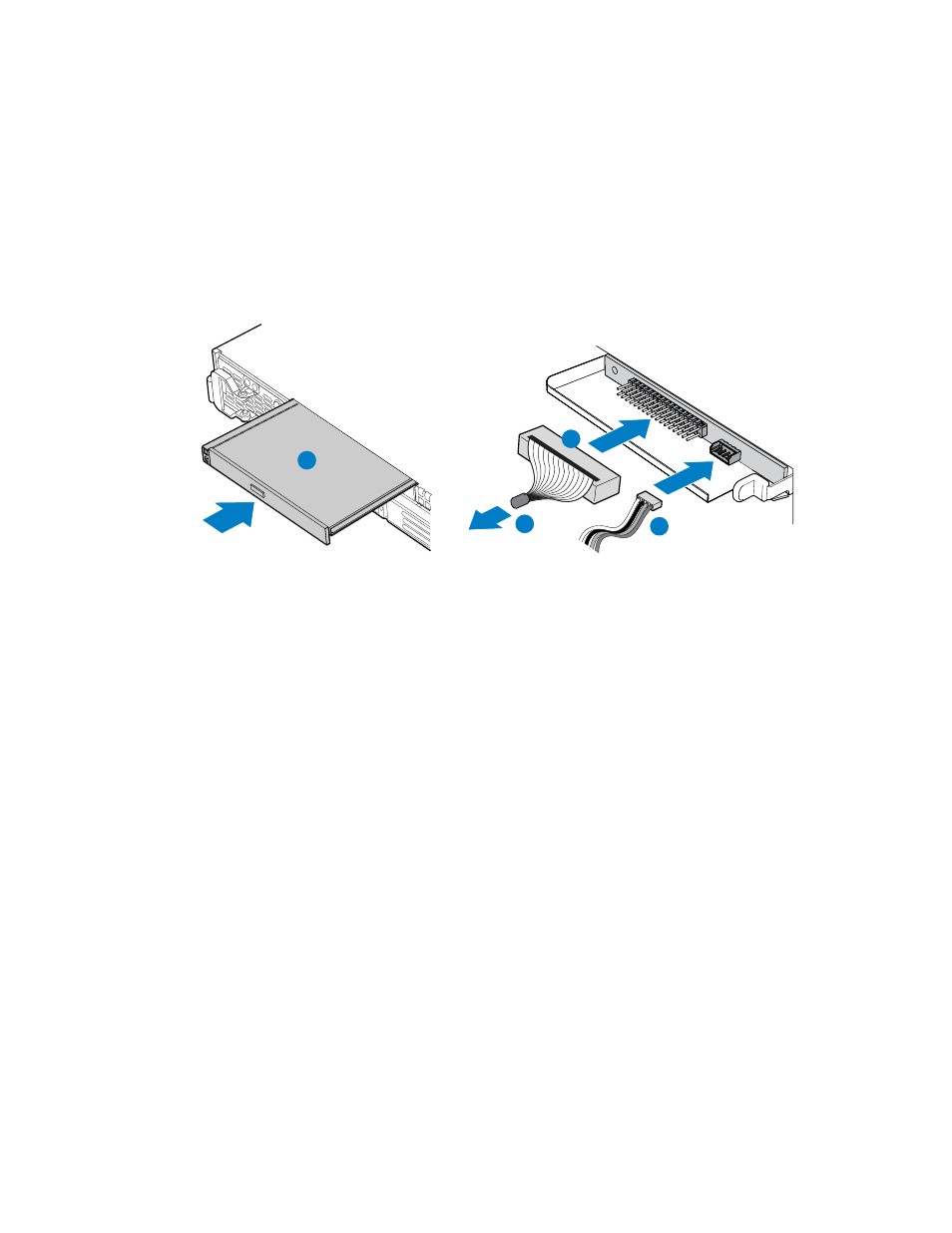

Figure 30. Installing a DVD/CDROM Drive into the Chassis
13. Install the chassis cover. For instructions, see
“Installing the Chassis Cover.”
14. (Optional) Install the front bezel. For instructions, see “Removing and Installing the Front
Bezel.”
15. Plug all peripheral devices and the AC power cable(s) back into the server.
