IXDP465 Development Platform—Quick Start Guide
May 2005 Intel
®
IXDP465 Development Platform AN
20 Order Number: 305825, Revision: 002

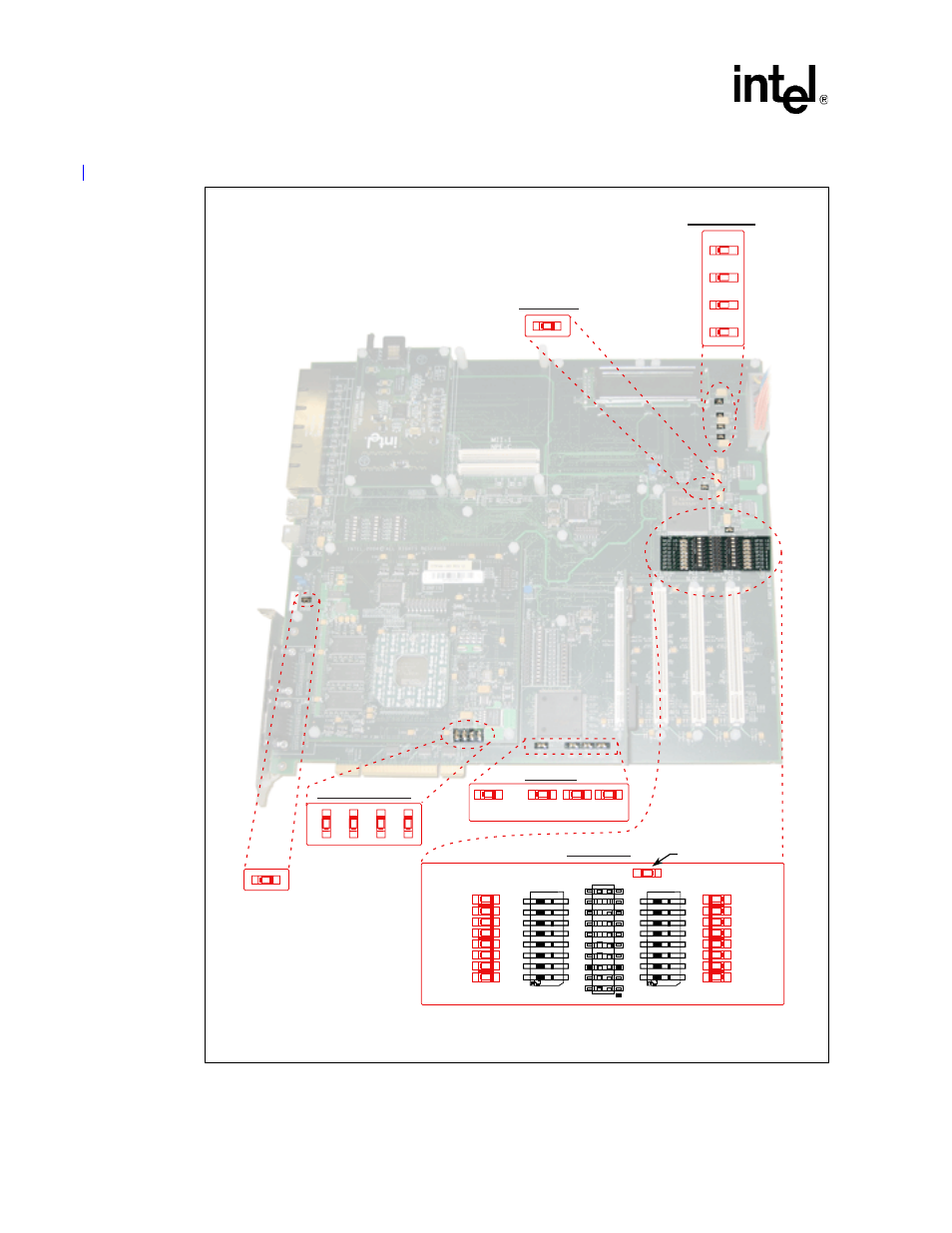

Figure 6. Intel
®
IXDP465 Development Platform LED Locations
Note: In the Power LED area, the silkscreen text reads “+1.5V” however, core voltage is actually 1.3/1.4V.
B5022-01
Power LED: +2.5V
GPIO LEDs
PCI LEDs
CPU Power LEDs
GPIO 15
GPIO 13
GPIO 11
GPIO 9
GPIO 7
GPIO 5
GPIO 3
GPIO 1 GPIO 14
GPIO 12
GPIO 10
GPIO 8
GPIO 6
GPIO 4
GPIO 2
GPIO 0
P34
SW1
PCI
Option
PCI
66 MHz
PCI
33 MHz
PCI
Host
SW2
RESET
3.3V 2.5V
COREV
+12.0V
+5.0V
-12.0V
+3.3V
Power LED
Power LEDs
+1.5V
FLASH
STATUS
