M S-7236 M ainboard
A-14
n 6-Channel Mode for 6-Speaker Output
Description:
Connect two speakers to back
panel
’s Line Out connector, two
speakers to the rear-channel
Line out connec tor and two
s p e a k e r s t o t h e c e n t e r /
subwoofer-channel Line Out
connector.

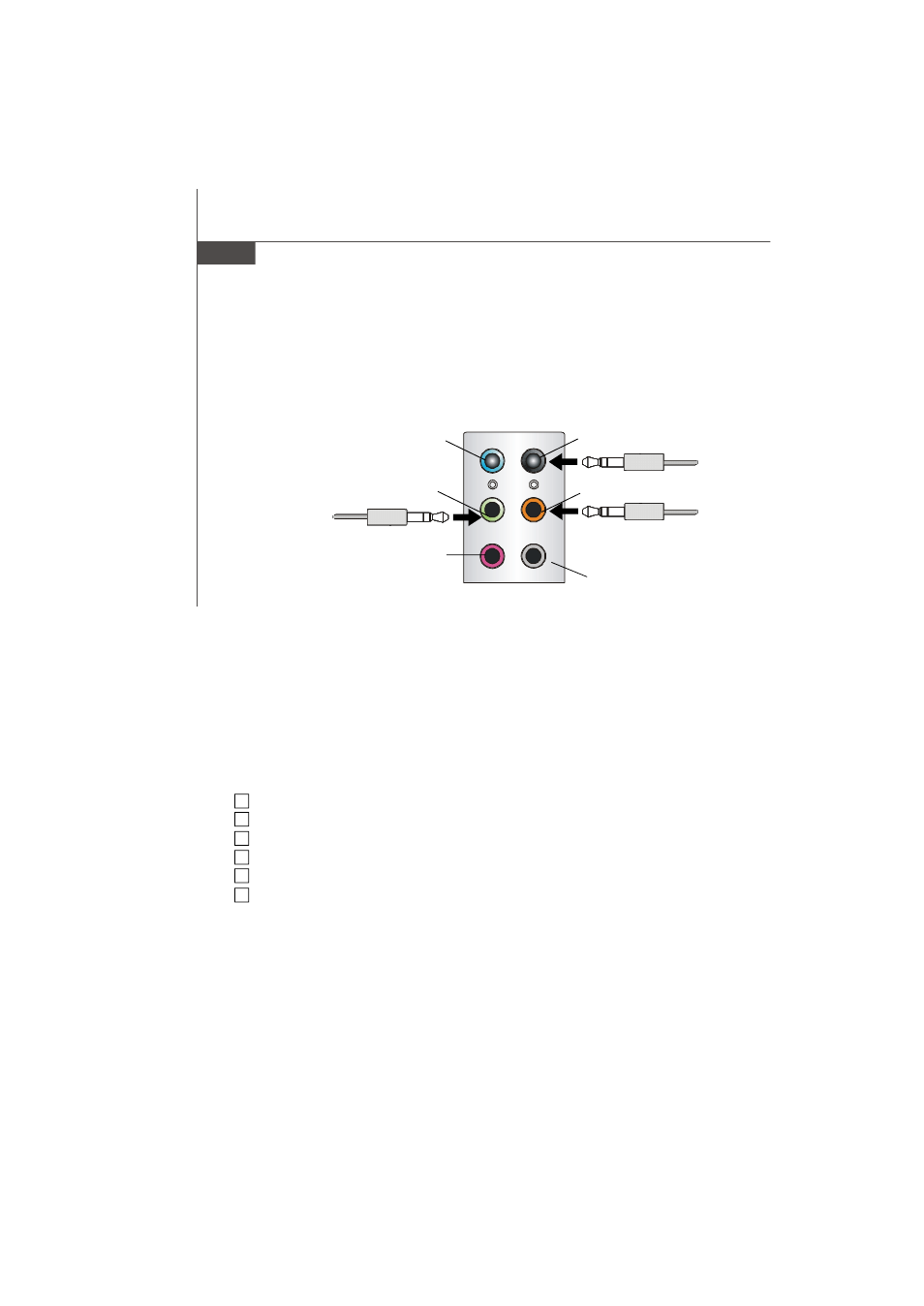

6-Channel Analog Audio Output
1 Line In
2 Line Out (Front channels)
3 MIC
4 Line Out (Rear surround channels)
5 Line Out (Center and Subwoofer channel)
6 Line Out (Side surround channels, but no functioning in this mode)
1
2
6
4
5
3
Back Panel
