M S-7236 M ainboard
2-16
Serial ATAII Connectors controlled by Intel ICH7: SATA1~SATA4
The SouthBridge of this mainboard is Intel ICH7 which supports four serial ATAII
connectors SATA1~SATA4.SATA1~SATA4 are dual high-speed Serial ATAII interface
ports. Each supports Serial ATAII data rates of 300MB/s. Both connectors are fully
compliant with SATA 1.0 and 2.0 specifications. Each Serial ATA connector can
connect to 1 hard disk device.
Please do not fold the serial ATA cable in a 90-degree angle, since this
might cause the loss of data during the transmission.
Impor tant

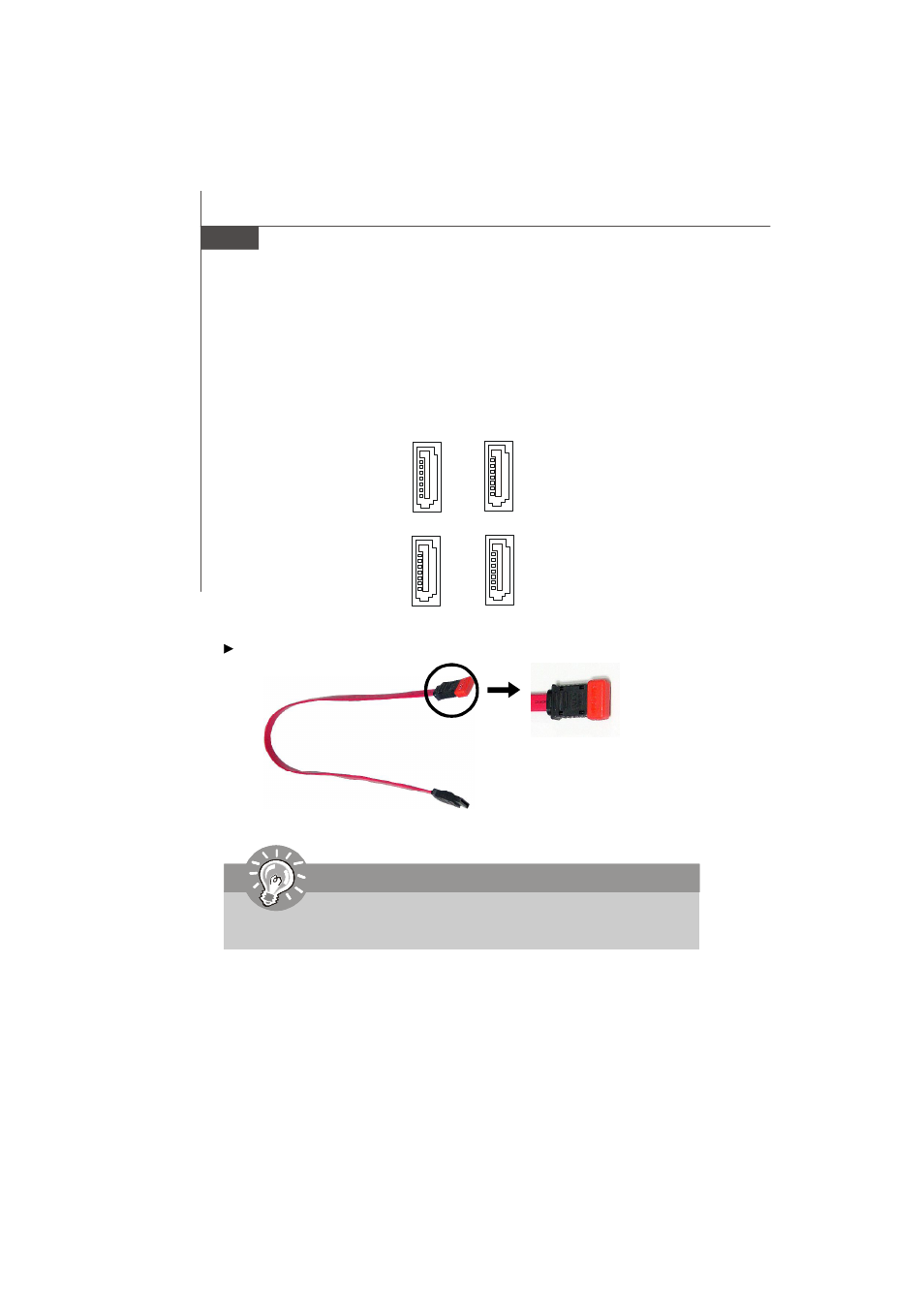

Serial ATA cable
Connect to SATA1~4
Take off the Dust Cover and
connect to the Hard Disk
Devices
SATA4
SATA3
SATA2
SATA1
