IBM MS-7236 (V2.X) Mainboard G52-72361X2 User Manual
Page 31
2-15
Hardware Setup

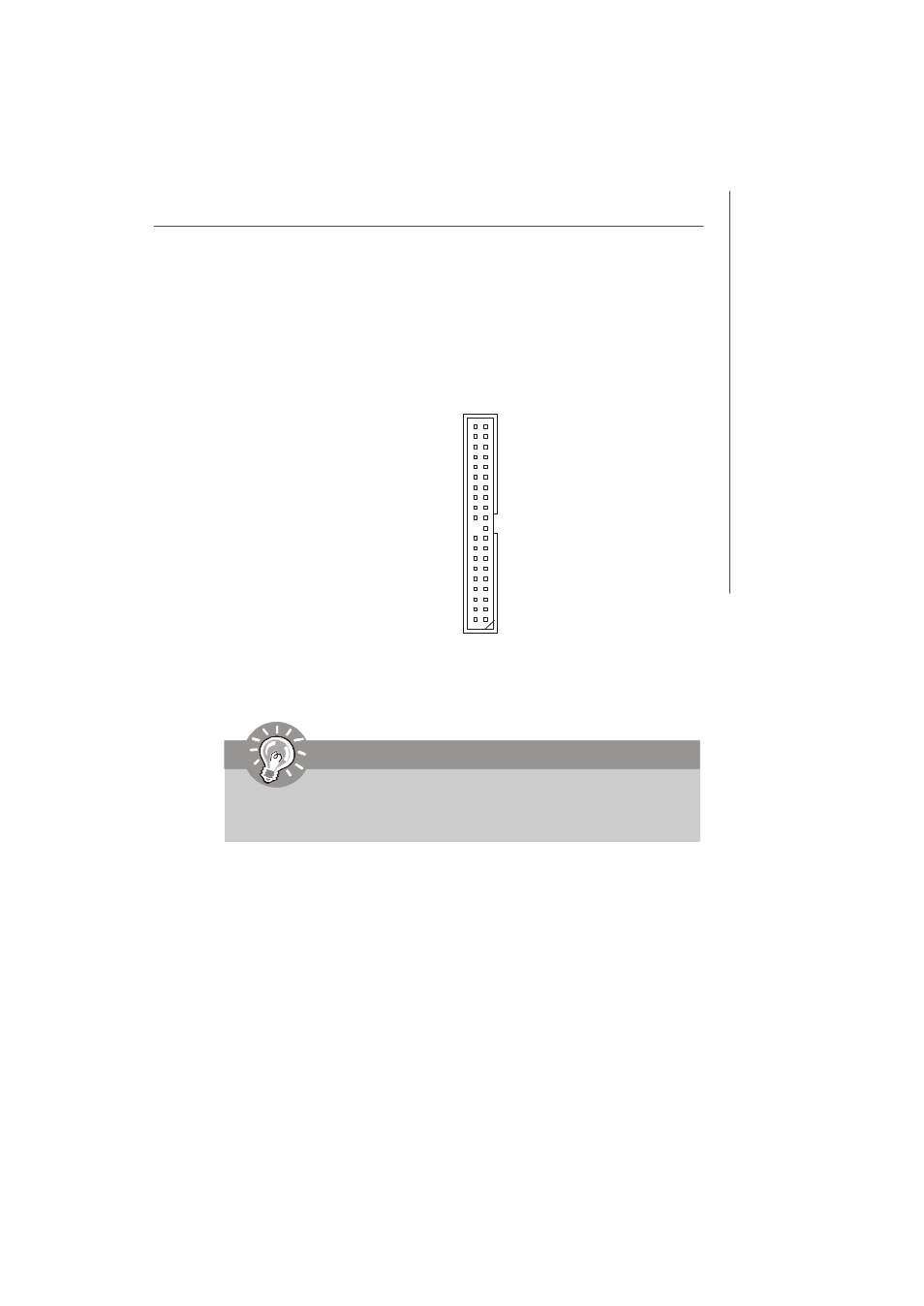

Hard Disk Connector: IDE1
The mainboard has 32-bit Ultra DMA 66/100 IDE controllers integrated in the chips
Intel ICH7, which supports PIO & Bus Master operation modes and it can connect up
to two Ultra ATA drives.
IDE1 can connect a Master and a Slave drive. You must configure second hard drive
to Slave mode by setting the jumper accordingly.
If you install two hard disks on cable, you must configure the second
drive to Slave mode by setting its jumper. Refer to the hard disk docu-
mentation supplied by hard disk vendors for jumper setting instructions.
IDE1 (blue)
Impor tant
