IBM MS-7236 (V2.X) Mainboard G52-72361X2 User Manual

Page 21

Text mode
Original mode

2-5

Hardware Setup

1. Confirm if your CPU cooler is firmly installed before turning on your

system.

2. Do not touch the CPU socket pins to avoid damaging.
3. The availability of the CPU land side cover depends on your CPU

packing.

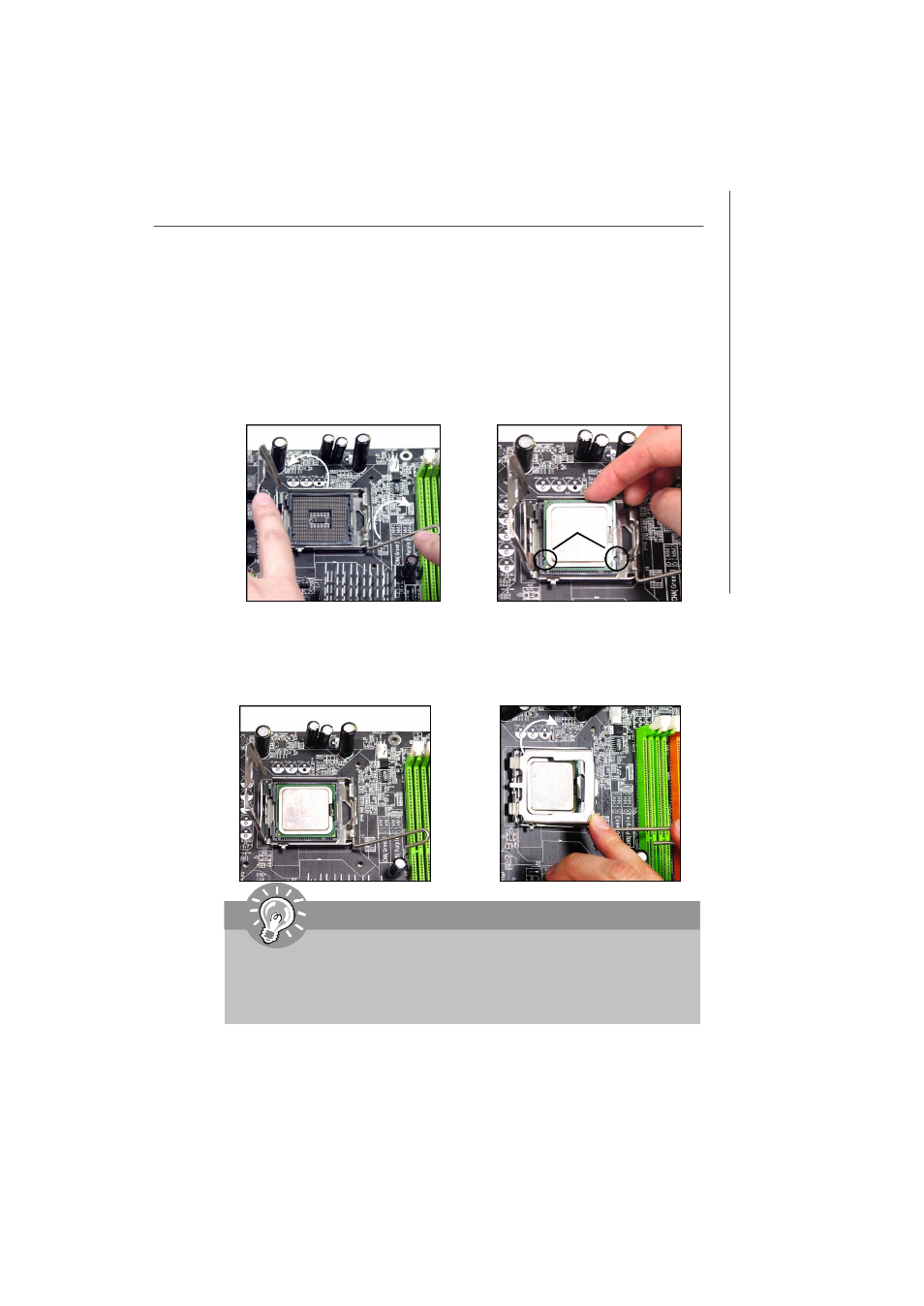

6. After confirming the CPU direction

for correct mating, put down the
CPU in the socket housing frame.
Be sure to grasp on the edge of
the CPU base. Note that the align-
ment keys are matched.

8. C over the load plate onto the

package.

7. Visually ins pect if the C PU is

seated well into the socket. If not,
take out the CPU with pure vertical
motion and reinstall.

alignment

key

5. Lift the load lever up and open the

load plate.

Impor tant
