IBM MS-7236 (V2.X) Mainboard G52-72361X2 User Manual
Page 20
M S-7236 M ainboard
2-4
CPU & Cooler Installation
W hen you are installing the CPU, make sure the CPU has a cooler attached on
the top to prevent overheating. If you do not have the cooler, contact your dealer
to purchase and install them before turning on the computer. Meanwhile, do not
forget to apply some silicon heat transfer compound on CPU before installing the heat
sink/cooler fan for better heat dispersion. Follow the steps below to install the CPU &
cooler correctly. W rong installation will cause the damage of your CPU & mainboard.

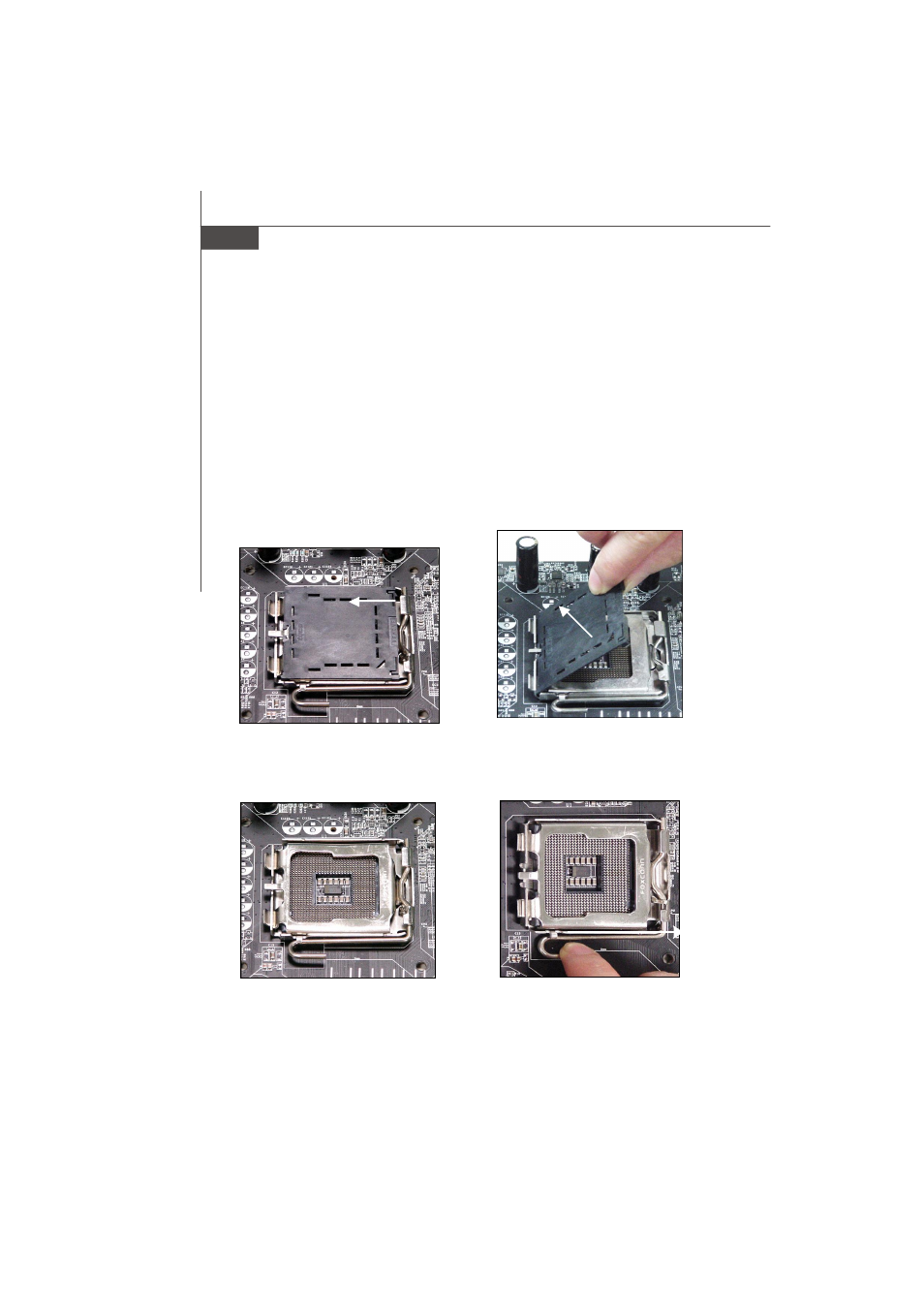

2. Remove the cap from lever hinge
side (as the arrow shows).
1. The CPU socket has a plastic cap on
it to protect the contact from damage.
Before you install the CPU, always
cover it to protect the socket pin.
4. Open the load lever.
3. The pins of socket reveal.
