M S-7236 M ainboard
3-18

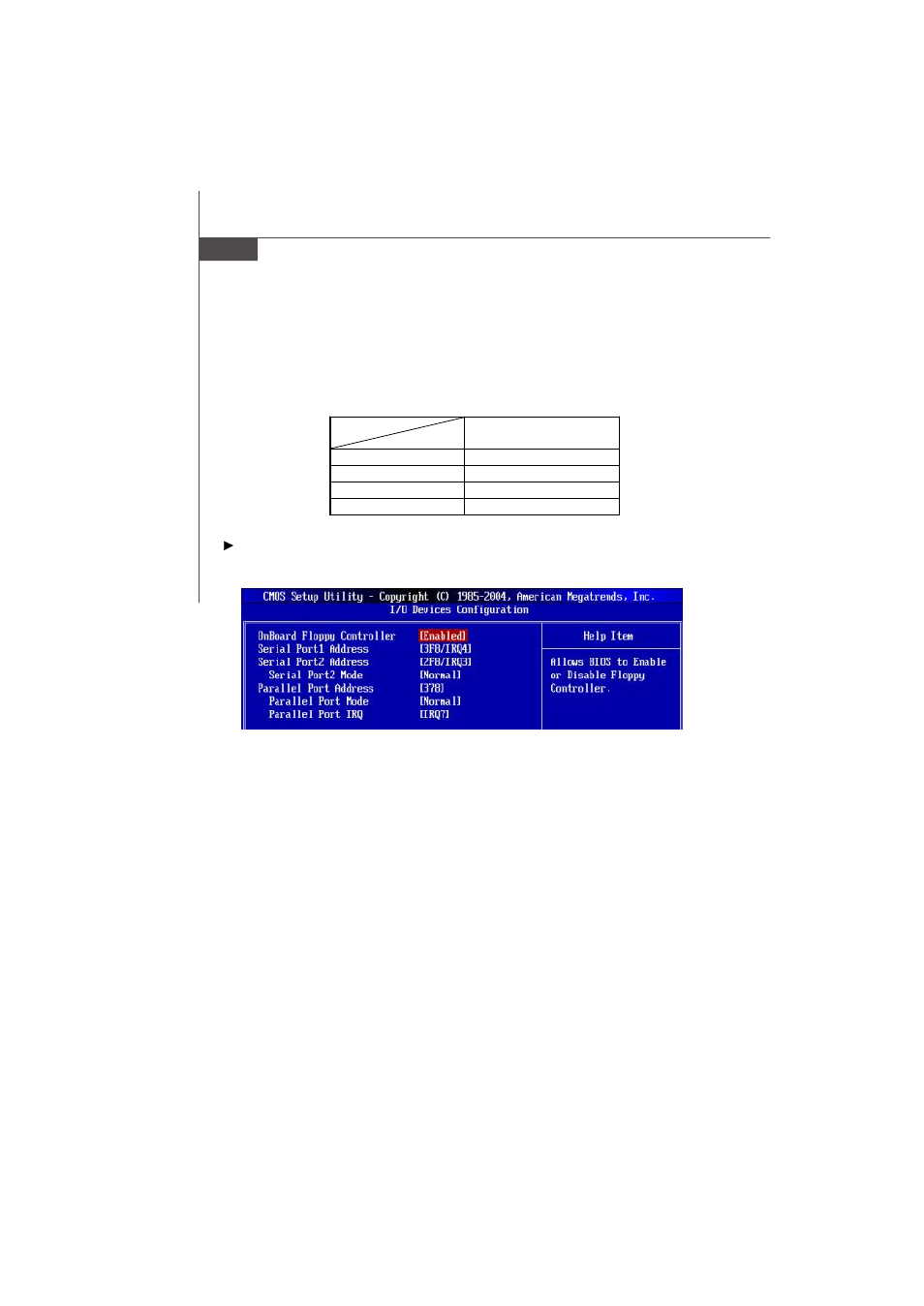

IO Devices Configuration
Press
ATA/IDE Configuration
These 2 items allow you to select the ATA/IDE and SATA configuration. Select
[Disabled] in ATA/IDE Configuration if you want to disable both ATA/IDE
configuration. Select [Compatible] or [Enhanced] to use the IDE, S-ATA and P-
ATA devices. Refer to the following tables for details.
ATA/IDE Configuration
(Compatible)
SATA Only
[SATA 1/3/2/4]
PATA Pri, SATA Sec
[IDE1, SATA2/4]
SATA Pri, PATA Sec
[SATA1/3, IDE1]
PATA Only
[IDE1]
Onboard Floppy Controller
Select [Enabled] if your system has a floppy disk controller (FDC) installed on
the system board and you wish to use it. If you install add-on FDC or the
system has no floppy drive, select [Disabled] in this field. Setting options:
[Enabled], [Disabled].
Serial Port1/2 Address
These items specify the base I/O port addresses of the onboard Serial Port 1
. Selecting [Auto] allows BIOS to automatically determine the correct base I/O
port address. Settings: [3F8/IRQ4], [2F8/IRQ3], [3E8/IRQ4], [2E8/IRQ3] and
[Disabled].
Serial Port2 M ode
This item allows you to select mode for Serial Port2. Setting options: [Normal],
[IrDA], [ASK IR].
