1. Check the information in H/W Monitor in BIOS (Chapter 3) for the
CPU temperature.
2. Whenever CPU is not installed, always protect your CPU socket pin with
the plastic cap covered (shown in step 1) to avoid damaging.

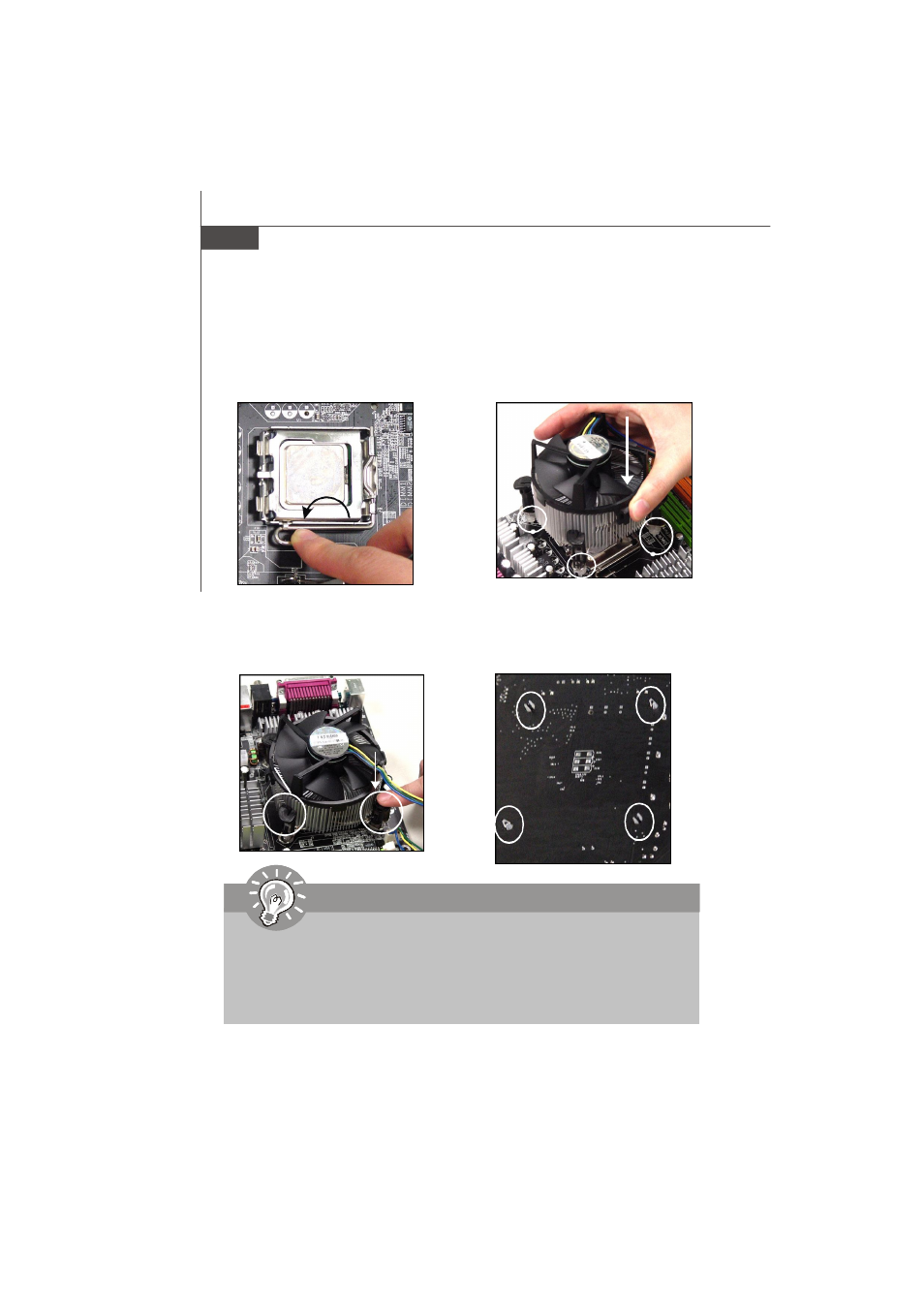

10. Align the holes on the mainboard
with the heatsink. Push down the
c ooler u nti l i ts f ou r c lip s g et
wedged int o t he holes of t he
mainboard.
12. Turn over the mainboard to con-
firm that the clip-ends are cor-
rectly inserted.
11. Press the four hooks down to fas-
ten the cooler. Then rotate the lock-
ing switch (refer to the correct di-
rection marked on it) to lock the
hooks.
9. Press down the load lever lightly
onto the load plate, and then se-
cure the lever with the hook under
retention tab.
locking
switch
Impor tant
