PCI-X Layout Guidelines
8.6.5 PCI 33 MHz Embedded Mode Topology
Figure 22 and Table 14 provide routing details for a topology with an embedded PCI 33 MHz
design.

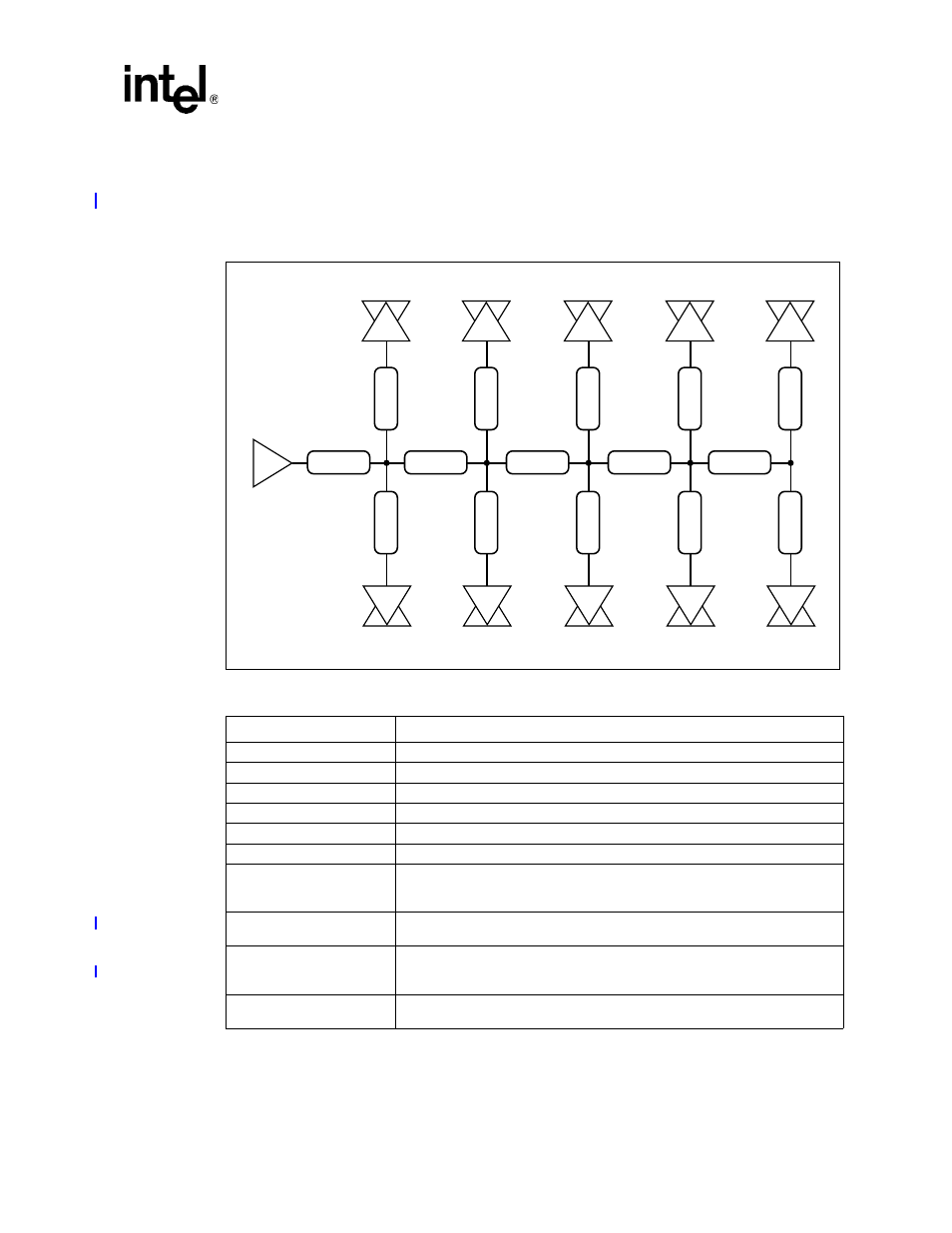

Figure 22. PCI 33 MHz Embedded Mode Routing Topology
Table 14. PCI 33 MHz Embedded Routing Recommendations
Parameter Routing Guideline for Lower AD Bus
Reference Plane Route over an unbroken ground plane
Board Impedance 60
Ω
+/- 15%
Stripline Trace Spacing 12 mils, edge to edge
Microstrip Trace Spacing 18 mils edge to edge
Group Spacing Spacing from other groups: 25 mils min, edge to edge
Breakout 5 mils on 5 mils spacing. Maximum length of breakout region can be 500 mils.
Trace Length 1 TL1: From
41210 Bridge signal Ball to
first junction
5.0” max
Trace Length TL2 to TL5 -
between junctions
0.5” min - 3.5” max
Trace Length TL_EM1 to
TL_EM10 from junction to
embedded devices
2.0” min - 3.0” max
Length Matching
Requirements
Clocks coming from the clock driver must be length matched to within 25 mils.
B2723 -01
