16 Intel® 41210 Serial to Parallel PCI Bridge Design Guide
Package Information

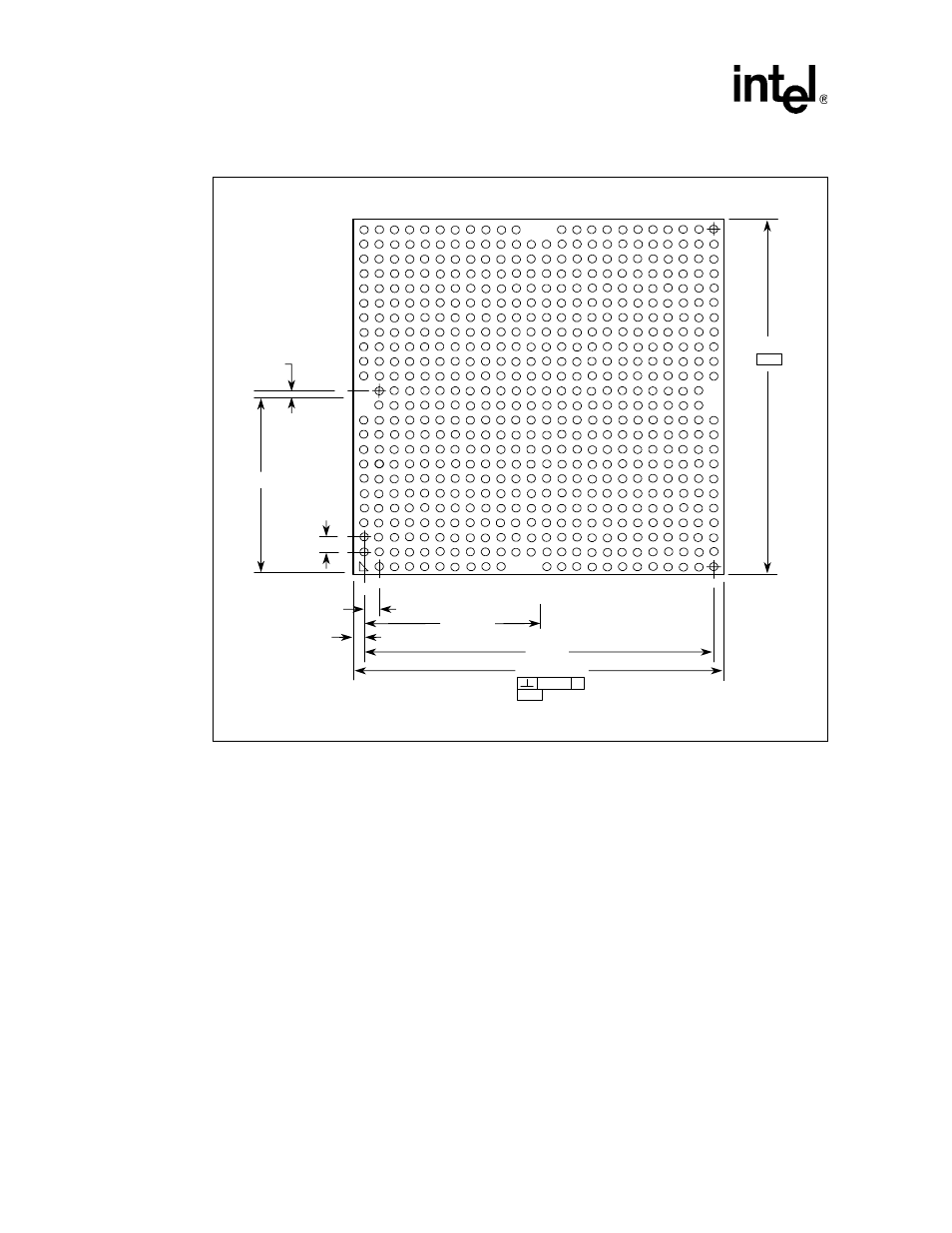

Figure 6. Bottom View - 41210 Bridge 567-Ball FCBGA Package Dimensions
B2711-01
31.00 – 0.100
31.00 – 0.100
29.2100
8X 14.605
23X 1.270
23X 1.270
4X 15.500
4X 0.635
(0.895)
0.200
- B -
- A -
A
+
+
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
T
U
V
W
Y
AA
AB
AC
AD
3 5 7 9 11 13 15 21 1 23 19 17
4 6 8 10 12 16 18 20 22 24 2 14
