Intel® 41210 Serial to Parallel PCI Bridge Design Guide 13
Introduction
2.7 Intel
®
41210 Serial to Parallel PCI Bridge
Applications
This section provides a block diagram for a typical the 41210 Bridge application. This application
shows a PCI-E adapter card with two Dual 2Gb Fibre Channel controllers. Each of the PCI-X bus
segments is connected to the Dual 2Gb Fibre Channel chip running at 133MHz. The two Dual FC
chips provides the four 2Gb/s outputs.

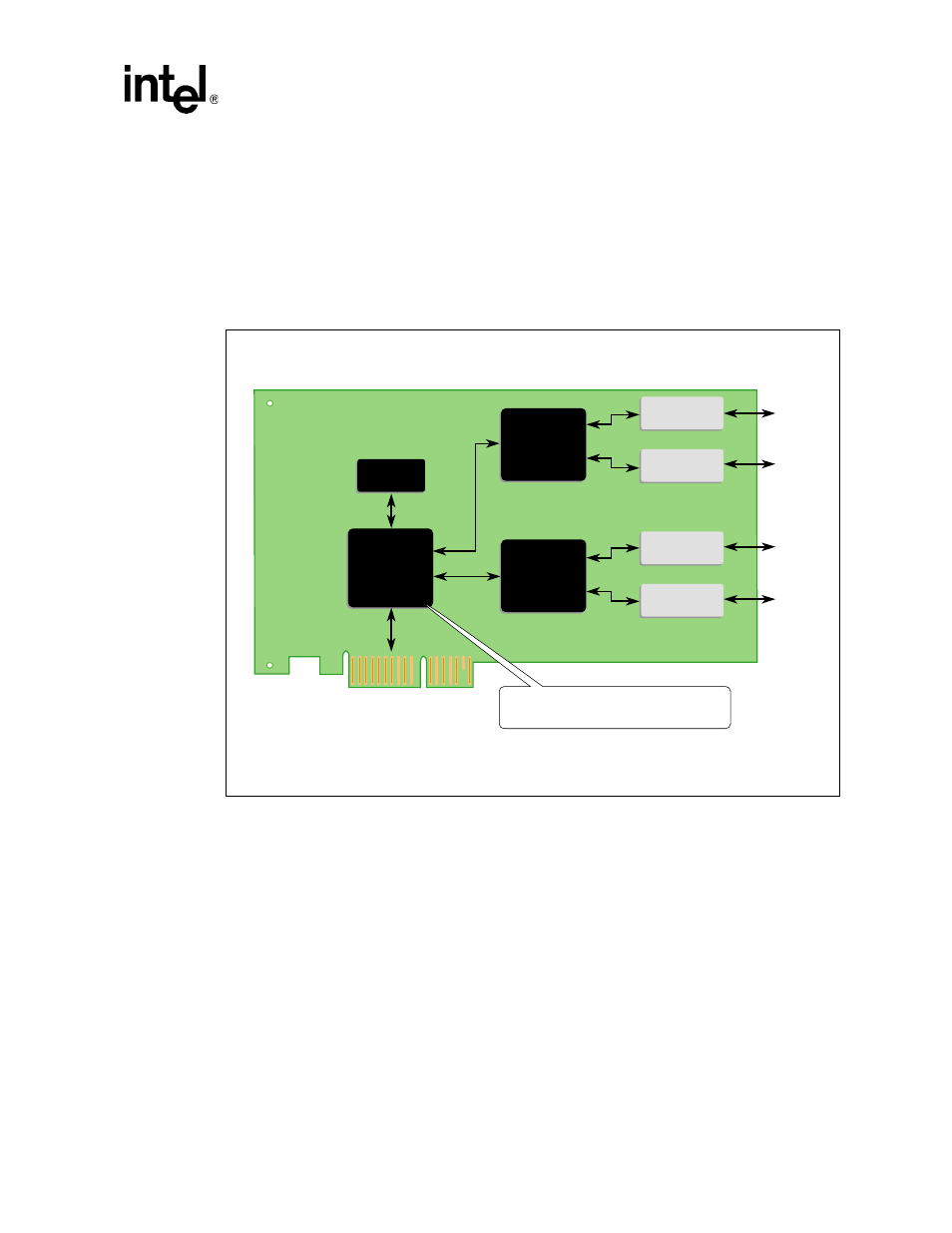

Figure 4. Intel
®
41210 Bridge Adapter Card Block Diagram
B1491-02
Dual 2Gb
FC
Intel ® 41210
Bridge
PCI-X to
PCI Express
I2C Micro
Controller
SFP Optical
Module
SFP Optical
Module
SFP Optical
Module
SFP Optical
Module
Dual 2Gb
FC
2 Gb/s
133 MHz
PCI-X
2 Gb/s
2 Gb/s
PCI Express
(to Server)
2 Gb/s
This is locally configurable from SMBus or
PCI-X interfaces (no BIOS support or Drivers
required)
