RRP2.3 CASSETTE ASSY FRONT (REFERENCE ONLY)

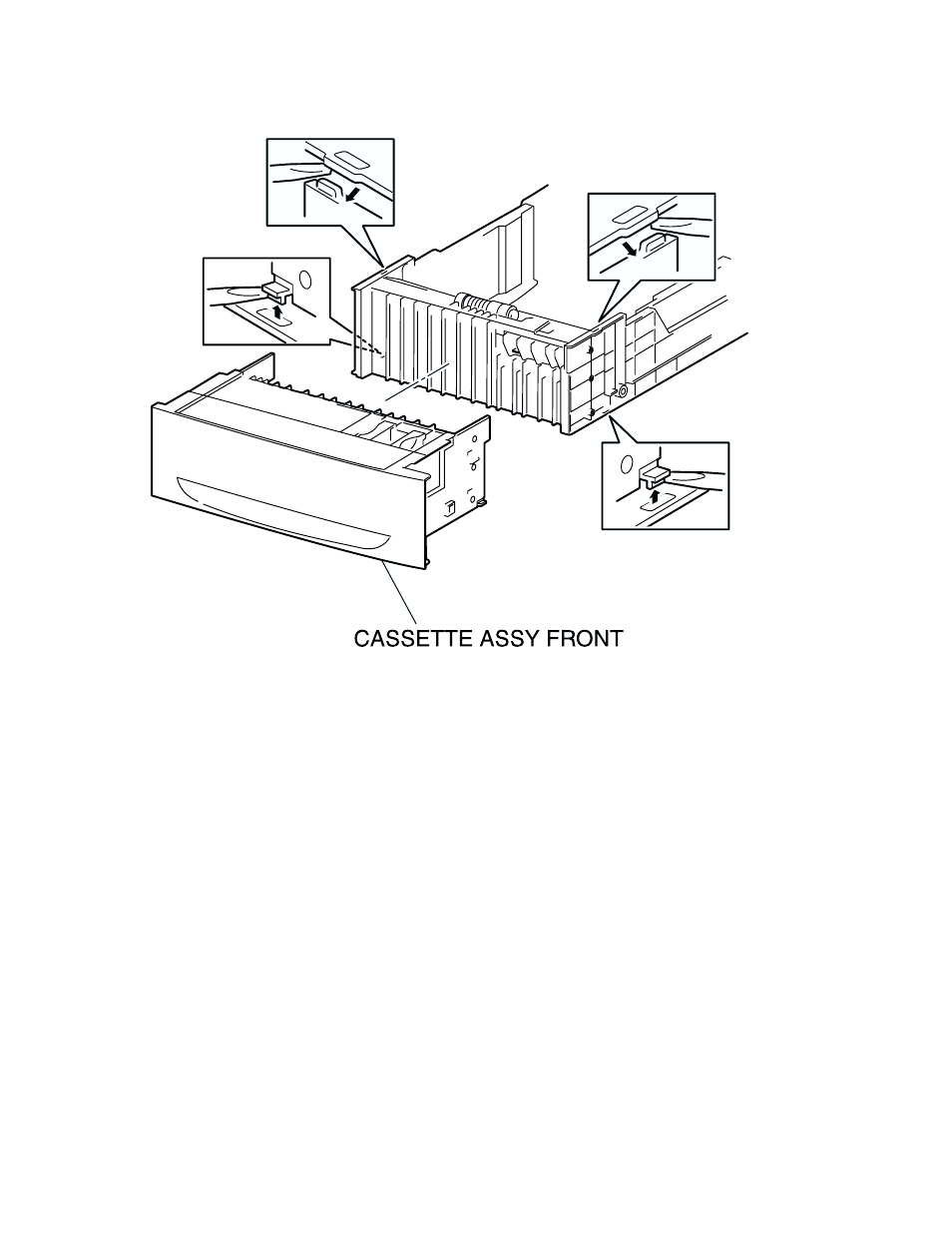

Figure: CASSETTE ASSY FRONT Removal
Removal
1) Pull out the CASSETTE from the printer.
2) Release the bottom and top hooks securing the CASSETTE ASSY FRONT from the right side of the
CASSETTE using a mini screwdriver or the like.
3) Release the bottom and top hooks securing the CASSETTE ASSY FRONT from the left side of the
CASSETTE using a mini screwdriver or the like.
4) Pull out the CASSETTE ASSY FRONT from the CASSETTE.
Replacement
Replace the components in the reverse order of removal.
