1.1
Getting started

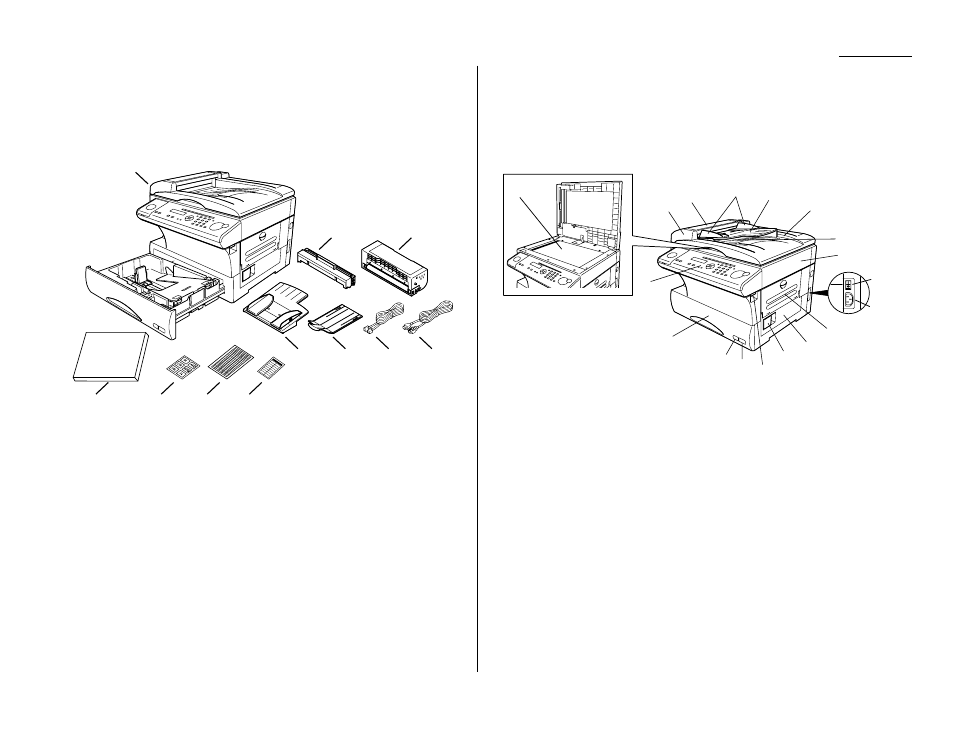

Packaging contents
Included in your machine s packaging:
1. Main unit with 500-sheet paper cassette installed
2. Drum cartridge
7. AC power cord
3. Toner cartridge
8. Operating instructions
4. Document tray
9. Paper size stickers
5. Extension paper tray
10. One-touch labels
6. Telephone line cord
11. Soft Key labels
Note: Be sure to save the box (or boxes) and packing materials for reshipment.
Parts of your machine
Note: Any terms used here that are unclear to you right now will be explained in
detail in the coming pages.
1
Control Panel
The keys you use to operate your machine. (See pages
1.3 1.4 for more details.)
2
ADF (Automatic Document Feeder)
The ADF automatically feeds
original document into the machine, one at a time. It can hold up to 50 pages.
3
Scanner cover Opens this cover to remove original document jams.
4
Document guides
Adjust these to fit the width of the original document
so it will feed properly into the machine.
5
Document tray Holds original documents placed for scanning into the
machine.
6
Platen cover Opens to scan an original document using the FBS (Flatbed
Scanner) glass.
7
Original document exit
Where your original document comes out after
being scanned.
8
Top cover Opens to provide access for changing the toner and drum car-
tridge (or, occasionally, fixing printout jams).
1
2
3
4
5
6
7
8
9
13
14
15
16
17
12
11
10
18
