REMOTE CONTROL
OPERATION (RC8001SR)
NAME AND FUNCTION
The provided remote controller is a universal
remote controller. The POWER button, numeric
buttons and control buttons are used in common
across different input source components.
The input source controlled with the remote controller
changes when one of the input selector buttons is
pressed.
z Infrared Transmitter and Learning
Sensor
This transmitter emits infrared light. Press the buttons
while pointing the transmitter towards the infrared
receiver window of the unit or other AV equipment.
Be sure to also point towards other remote controls
when using the learning function.
x POWER ON and OFF buttons
(When AMP mode is selected)
These buttons are used to turn the unit on or off.
c SOURCE ON/OFF button
This button is used to turn a specifi c source (such as
a DVD player) on or off independently from the rest
of the system.
v M (Mode) button
This button is used to program Macros. Pressing this
button switches between Normal mode and Macro
mode.
The > button is used to move to the next page. Up to
20 programs (4 pages) can be made. Holding down
the M button for three seconds or more switches to
the Setup mode, where the Setup menu is shown on
the LCD. The Setup menu has four pages, and the >
button is used to move to the next page. Pressing the
> button from page 4 returns you to page 1.
b D1 to D5 (Direct) buttons
Five types of direct operations can be performed
for each of the 12 source buttons such as the DVD,
television, amplifi er, and other AV equipment. The
pages can be switched, so 4 pages × 5 types = 20
operations can be performed for a single source. The
text display can also be changed.
n > (Page) button
This button is used to switch pages for the Direct
button. The current page is shown on the LCD.
m VOL (Volume) button
This button is used to adjust the volume for the
amplifi er and television.
Note:
• Set the AMP mode to use this button with the unit.
2 3 1
5 6 4
8
0
9 7
MEMO CLEAR
DSS
AMP AUX2 AUX1 TAPE
TUNER CD CD-R MD
VCR DVD TV
SOURCE
OFF ON/OFF
POWER
ON
D4
D5
D2
M
D1
D3
D5
OK
VOL CH
PREV MUTE
MENU EXIT
GUIDE
TEST CH.SEL
LIP·SYNC
THX
SURR
7.1CH ATT SPK-AB
DISP OSD SLEEP
1 2
LIGHT

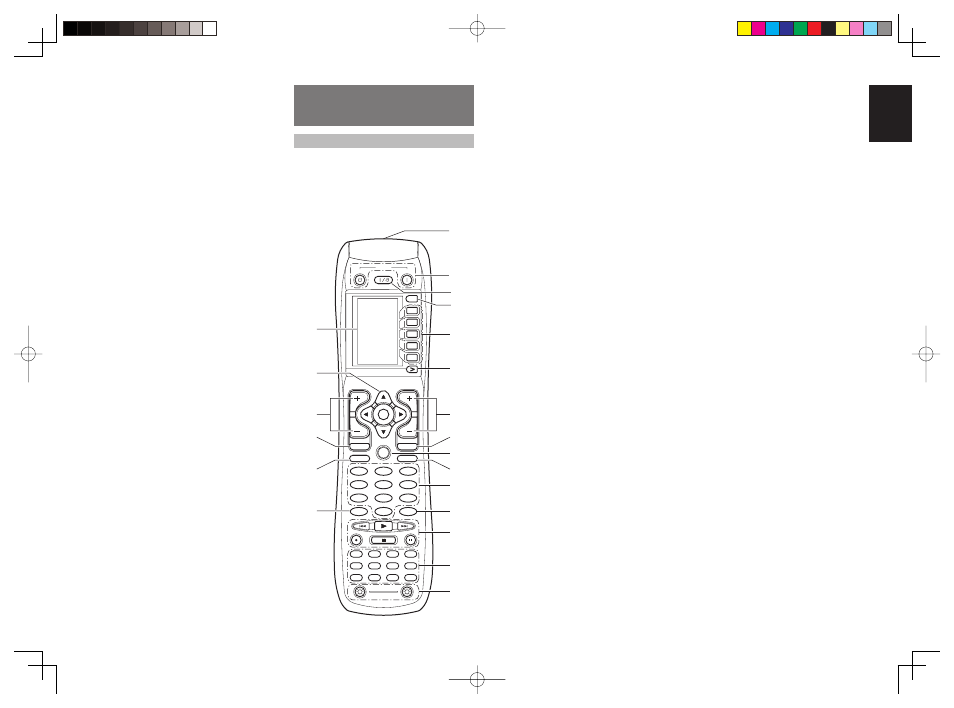

Learning Remote Controller RC8001SR
z
c
v
b
n
x
m
,
.
⁄1
⁄2 ⁄6
⁄7
⁄8
⁄9
¤0
¤1
⁄3
⁄4
⁄5
⁄0
@0 REMOTE CONT. IN/OUT terminals
Connect to a Marantz component equipped with
remote control (RC-5) terminals.
@1 AUDIO IN/OUT (TV, DVD, VCR1,
DSS/VCR2, TAPE, CD/CDR)
These are the analog audio inputs and outputs.
There are 6 audio inputs and 4 audio outputs. The
audio jacks are nominally labeled for cassette tape
decks, compact disc players, DVD players and etc....
The audio inputs and outputs require RCA-type
connectors.
@2 DIGITAL INPUT (Dig.1 - 6) /
OUTPUT (coaxial, optical)
These are the digital audio inputs and outputs. There
are 3 digital inputs with coaxial jacks, 3 with optical
jacks.
The inputs accept digital audio signals from a
compact disc, LD, DVD, or other digital source
component.
For digital output, there is 1 coaxial output and 1
optical output.
The digital outputs can be connected to MD
recorders, CD recorders, DAT decks, or other similar
components.
@3 VIDEO IN/OUT
(TV, DVD, VCR1, DSS/VCR2)
These are the video inputs and outputs. There
are 4 video inputs and 2 video outputs and each
one includes both composite video and S-video
confi gurations. Connect VCRs, DVD players, and
other video components to the video inputs.
The 2 video output channels can be used to be
connected to video tape recorders for making
recordings.
@4 HDMI INPUT / OUTPUT
This unit has 4 HDMI inputs and 2 HDMI output. The
input function can be selected from the OSD menu
system. (See page 43)
, MUTE button
This button is used to mute the audio for the amplifi er
and television.
Note:
• Set the AMP mode to use this button with the unit.
. GUIDE button
This button is used to display the menus for the DVD
player, DSS (satellite broadcasting tuner), or other
AV equipment.
(when AMP mode is selected)
This button is used to select the LIP.SYNC mode.
⁄0 EXIT button
(when AMP mode is selected)
This button is used to cancel settings in the setup
menu.
⁄1 Numeric buttons
These buttons are used to switch between 0 to 9
of the source components. If the source is set to
the amplifier, these buttons are used to perform
operations.
(when AMP mode is selected)
(1) TEST button
This button is used to enter the test tone menu.
(2) CH SEL. (channel select) button
This button is used to call up SETUP MAIN MENU
and adjust speaker levels or 7.1 ch input level.
(3) SURR (surround) button
This button is used to select the surround mode.
(4) 7.1CH button
This button is used to select the output of an external
multi channel decoder.
(5) ATT button
When the input signal is too high and the voice
distorts even by throttling the unit VOLUME control,
turn on this function. “ATT” is indicated when this
function is activated.
The input level is reduced. Attenuator is invalid for
use with the output signal of “REC OUT”.
Note:
• This function is unavailable during the digital input
is selected.
(6) SPK-AB button
Speaker mode is switched in the following
sequence.
A
→ B → A+B → off
