78D0011 27
WDV Series Gas Fireplace stOne & Glass placeMent
stOne & Glass placeMent
1. For best results, place the stones first.
2. Place the stones randomly against the stone stop bracket, in front of and behind the burner.
cautIOn: Do not allow stones to sit directly on burner or in flame. Figure 37
3. Cover the outer front back and side floor with glass covering the entire surface evenly.
Sprinkle lightly over the burner area and in between the stones. Covering the black stone
stop brackets is important to not have glass too heavy on the burner. You should have glass
left over.
4. Turn burner on and adjust glass over the ported area to achieve an even, clean flame. Page
36, Figure 52
5. Replace glass frame and access door in reverse order of removal.
Glass Only placeMent
1. Remove the three (3) front and rear stone stop brackets by removing screws. Discard brack-
ets. The brackets are not used with glass only placement.
2. Spread glass evenly in one layer over the entire floor and burner. It is important to not have
the glass too heavy on ported area.
3. Turn burner on and adjust glass over ported ares to achieve an clean flame.
4. Replace glass frame and access door in reverse order of removal.

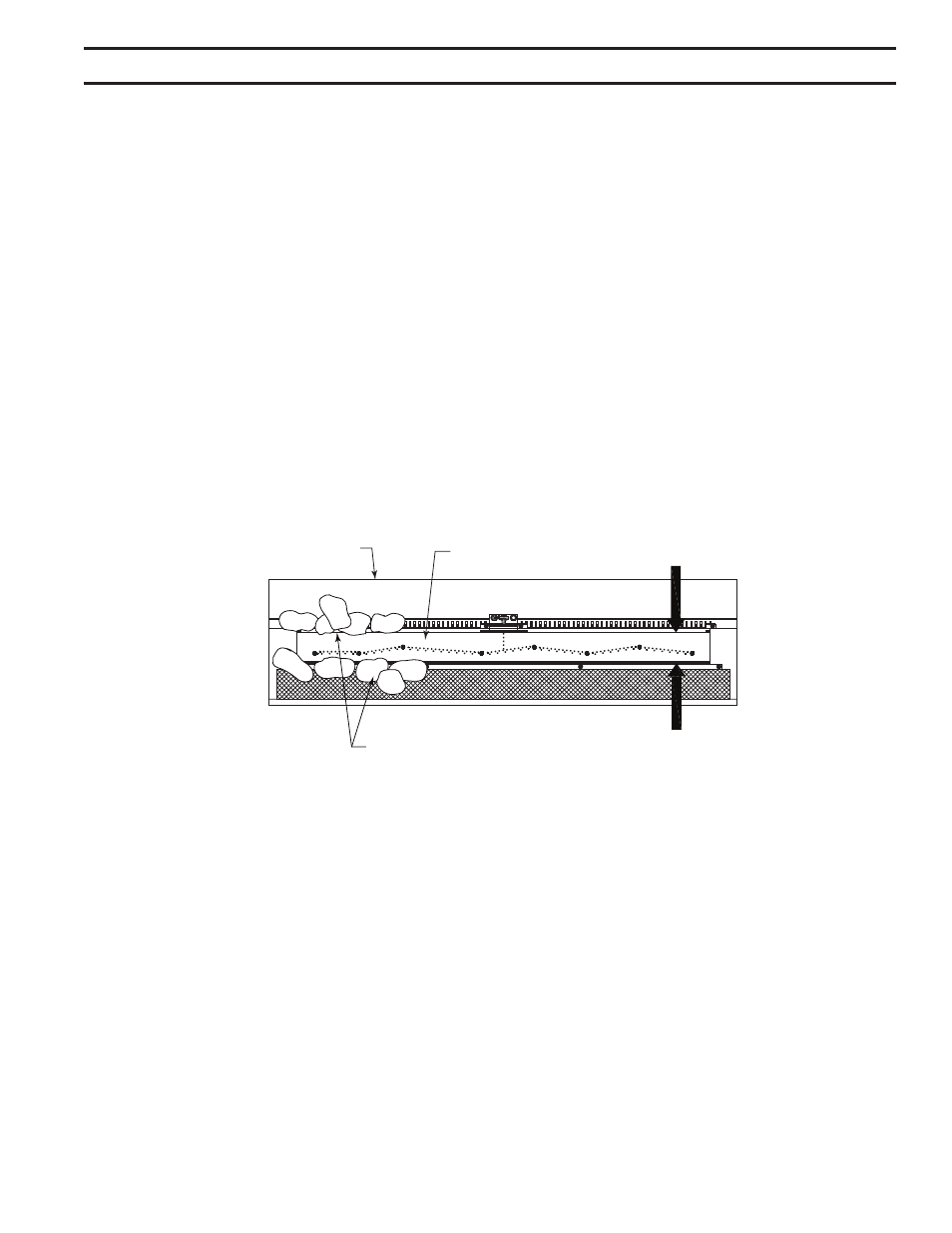

FP2434
stone placement
Firebox Perimeter Burner Surface
Back Stone-Stop
Bracket
Front Stone-Stop
Bracket
FP2434
Figure 37 -
Stone Placement
Example of Stone
Placement
