WDV Series Gas Fireplace Glass reMOVal & lIGht placeMent
Glass FraMe reMOVal
1. Remove the front access door by lifting up and sliding the two (2) spring hinge pins inward and
lifting off.
2. Rotate the three (3) cam levers in the lower access area 90° clockwise.
3. Tilt glass away from unit. Lift glass frame up and away from unit.
lIGht InstallatIOn
1. Remove the front floor screen frame by unfastening
the four (4) screws securing the front and sides.
2. Install the six (6) halogen light bulbs provided. Do not
touch light bulbs directly with fingers.
3. Replace the front floor screen frame. Be sure wires do
not get pinched below the light channel.

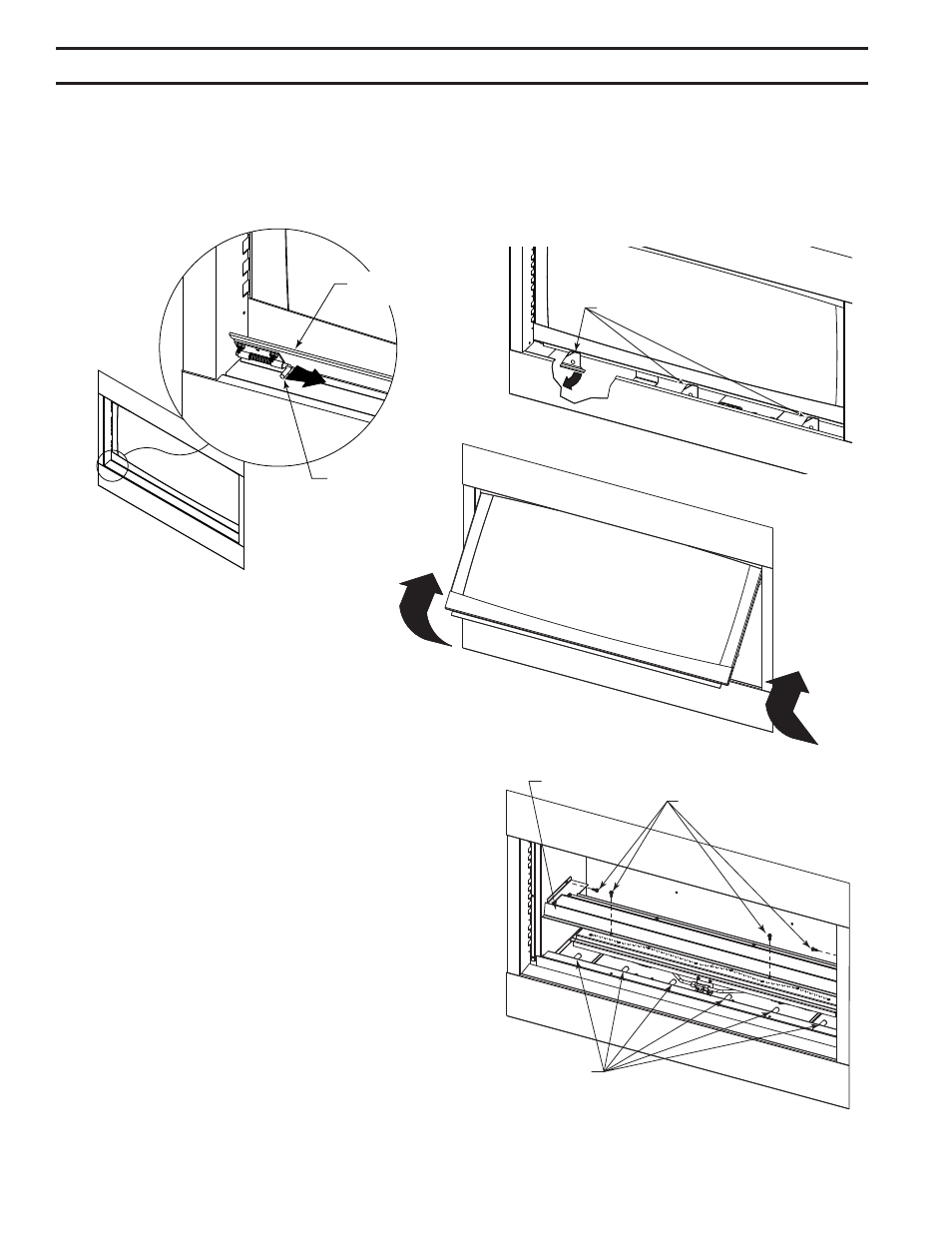

FP2431
remove glass 1
Front Access
Door
Spring Hinge
Pin
FP2431
FP2432
open cam levers
Cam Levers
FP2432
FP2433
lift glass
FP2433
Figure 35 -
Remove Glass Frame
FP2434
replace light bulbs
Floor Screen
Frame
Screws
Halogen Light
Bulbs
FP2435
Figure 36 -
Install Light Bulbs
