MSI FUZZY 945GME1 - Manual (Page 82)

MS-7265 Mainboard
A-12
1. MIC-In
2. Line-Out (Rear channels) *
3. Line-Out (Front channels)
* Line-In function is converted to Line Out function when 4-Channel Mode for
4-Speaker Output is selected.
4-Channel Mode for 4-Speaker Output
The audio jacks on the back panel always provide 2-channel analog
audio output function, however these audio jacks can be transformed to 4- or
6- channel analog audio jacks by selecting the corresponding multi-channel
operation from No. of Speakers.

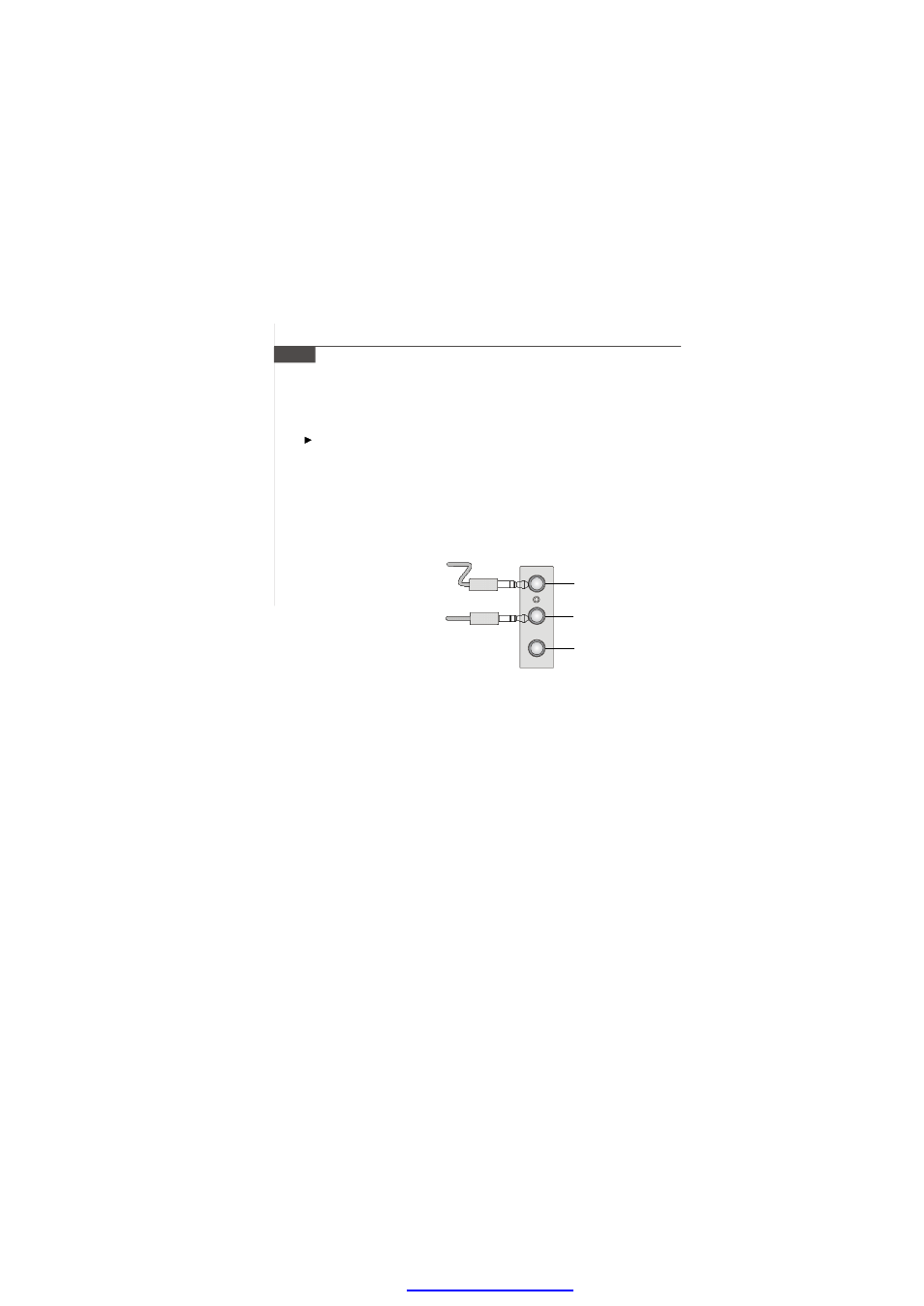

Refer to the following diagram and caption for the founction of each jack
on the back panel when 4-Channel Mode is selected.
Back Panel
2
3
1
