MS-7265 Mainboard
2-8

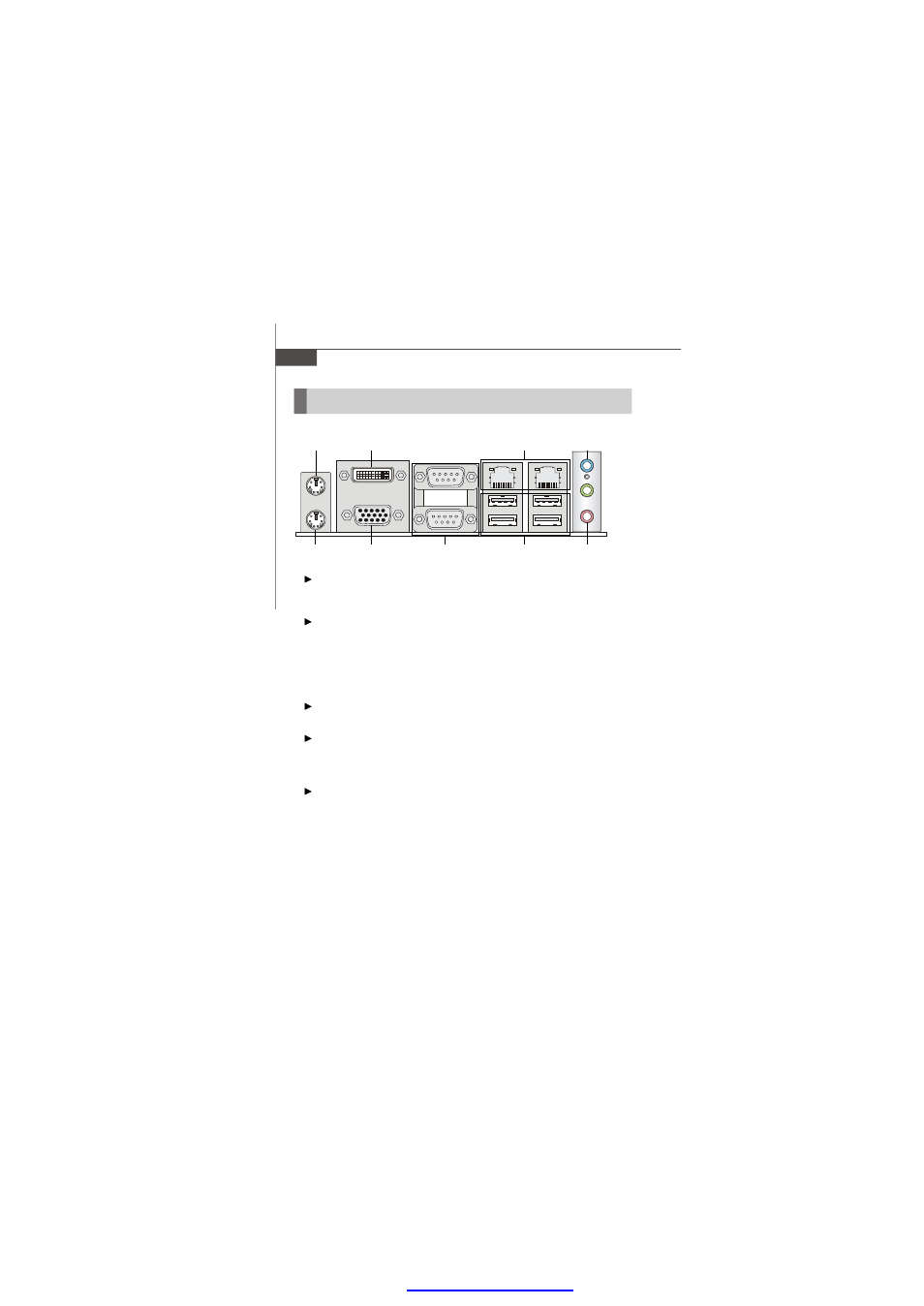

Back Panel
Mou se/Keyb oard
The standard PS/2 ® mouse/keyboard DIN connector is for a PS/2 ® mouse/
keyboard.
DVI Port
The DVI (Digital Visual Interface) connector allows you to connect an LCD
monitor. It provides a high-speed digital interconnection between the computer
and its display device. To connect a LCD monitor, simply plug your monitor
cable into the DVI connector, and make sure that the other end of the cable is
properly connected to your monitor (refer to your monitor manual for more
information).
VGA Port
The DB15-pin female connector is provided for monitor.
Serial Port
The serial port is a 16550A high speed communications port that sends/ re-
ceives 16 bytes FIFOs. You can attach a serial mouse or other serial devices
directly to the connector.
USB Port
The USB (Universal Serial Bus) port is for attaching USB devices such as
keyboard, mouse, or other USB-compatible devices.
MIC-In
(Pink)
Line-Out
(Green)
Line -In
(Blue)
VGA Port USB Ports Keyboard
(purple)
LAN Jacks
Mouse
(green)
Serial Ports
DVI Port
