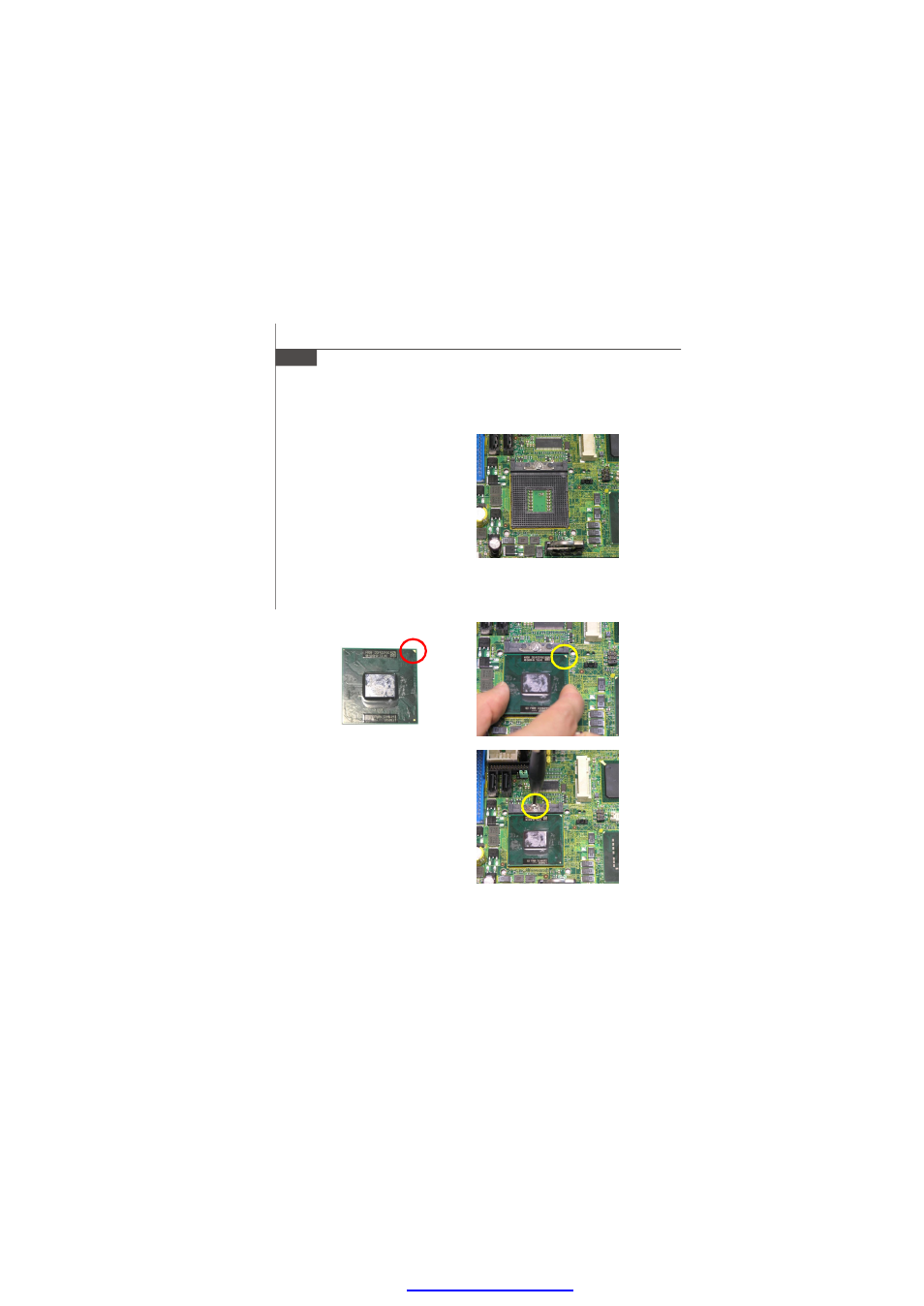

2. Place the CPU on top of the socket. Make sure to align the gold arrow on the
CPU with the arrow key on the socket.
3. Push the CPU down until its pins securely fit into the socket.
CPU & Cooler Installation for PGA Package
4. On the front end of the CPU socket is
a locking mechanism designed into
the form of a screw head. Make sure
that you actuate or deactuate this
mechanism with a screwdriver be-
fore and after installing the CPU.
1. Locat e t h e CPU socket on t h e
mainboard.
