2-5
Hardware Setup

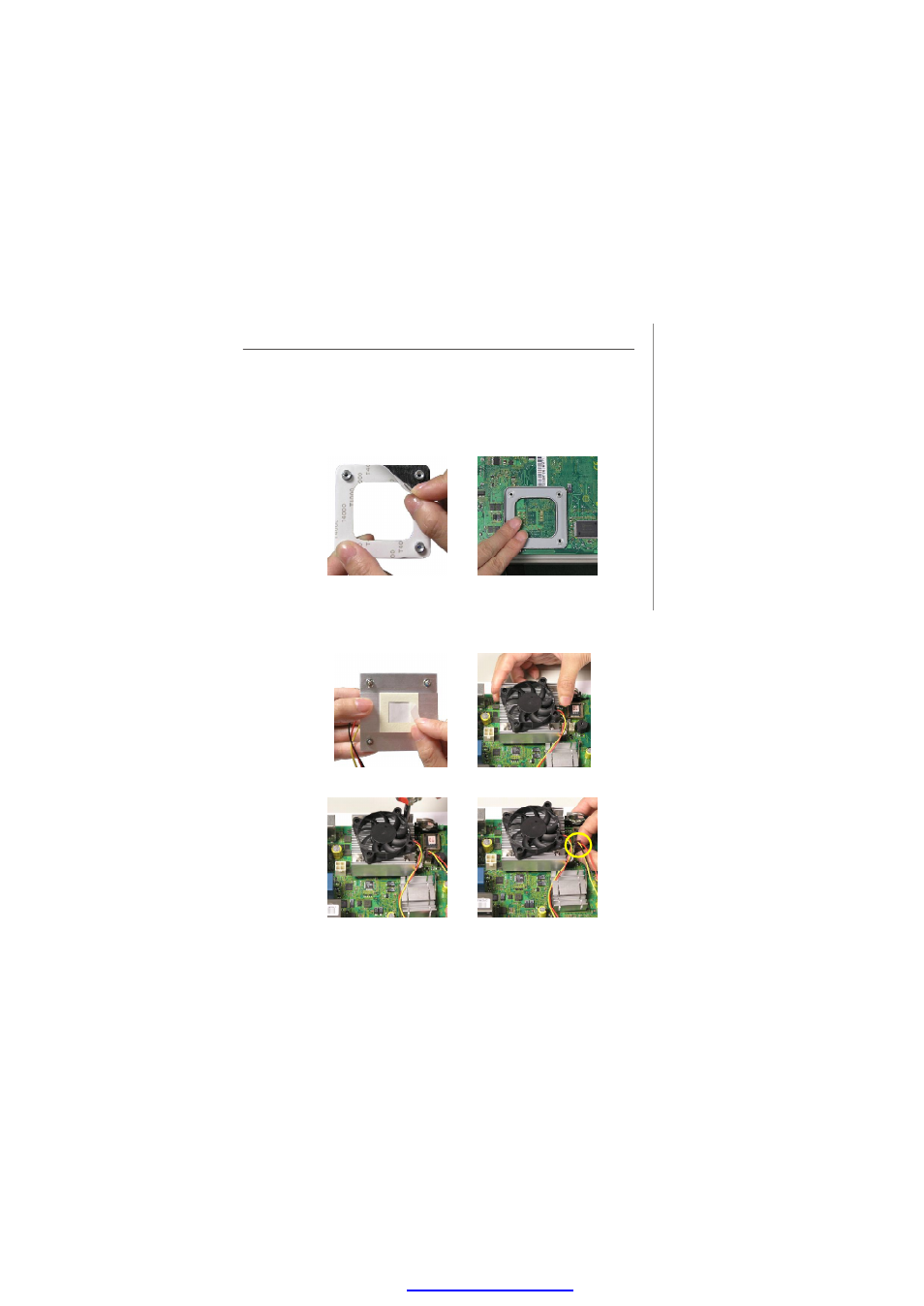

7. The heatsink paste helps to enhance heat dissipation of the CPU. Before
installing the cooler set (fan & heatsink bundled), make sure that you detach
the shield of the heatsink paste under the cooler set.
8. Locate the four screw holes around the CPU socket where the CPU cooler
backplate was installed. Align the cooler set with the screw holes and mount
it on top of the CPU.
9. Screw to secure the cooler set to the mainboard.
10. Connect the fan power cable to the CPUFAN1 connector on the mainboard.
5. Flip over the mainboard and locate the position of the CPU socket.
6. Detach the shield of the CPU cooler backplate paste and install the backplate
to the back of the CPU socket with holes aligned.
