A-11
Realtek ALC655 Audio
In addition to a default 2-channel analog audio output function, the audio
connectors on the Back Panel also provide 4- or 6-channel analog audio output
function if a proper setting is made in the software utility.
Read the following steps to have the Multi-Channel Audio Function properly
set in the software utility, and have your speakers correctly connected to the
Back Panel.
Connecting the Speakers
When you have set the Multi-Channel Audio Function mode properly in
the software utility, connect your speakers to the correct phone jacks in
accordance with the setting in software configuration.

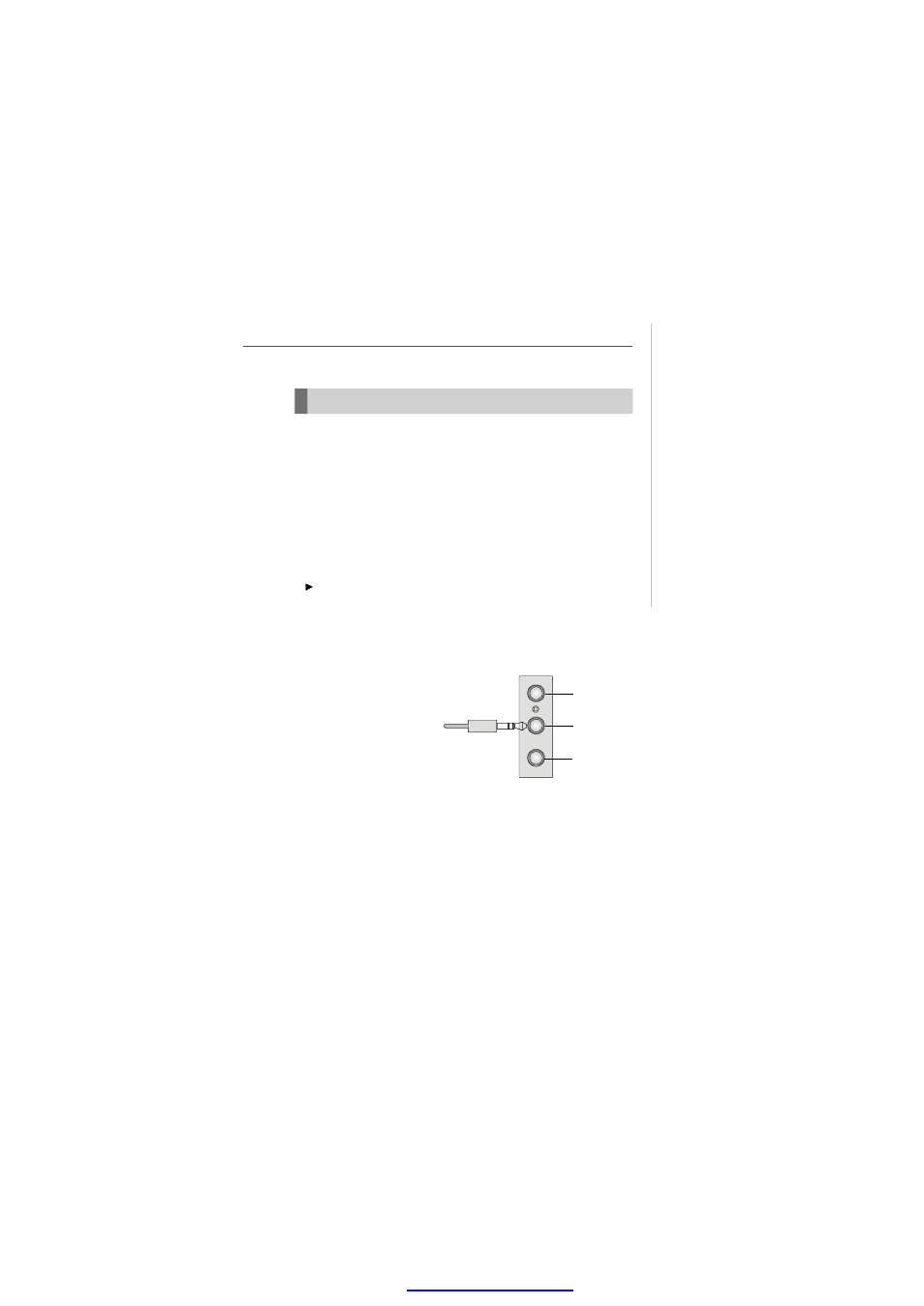

2-Channel Mode for Stereo-Speaker Output
Refer to the following diagram and caption for the function of each
phone jack on the back panel when 2-Channel Mode is selected.
1. MIC-In
2. Line-In
3. Line-Out (Front channels)
Hardware Setup
Back Panel
2
3
1
