MS-7265 Mainboard
2-6
Memory
These DIMM slots are used for installing memory modules.
64x2=128 pin 56x2=112 pin
DDR2
240-pin, 1.8V

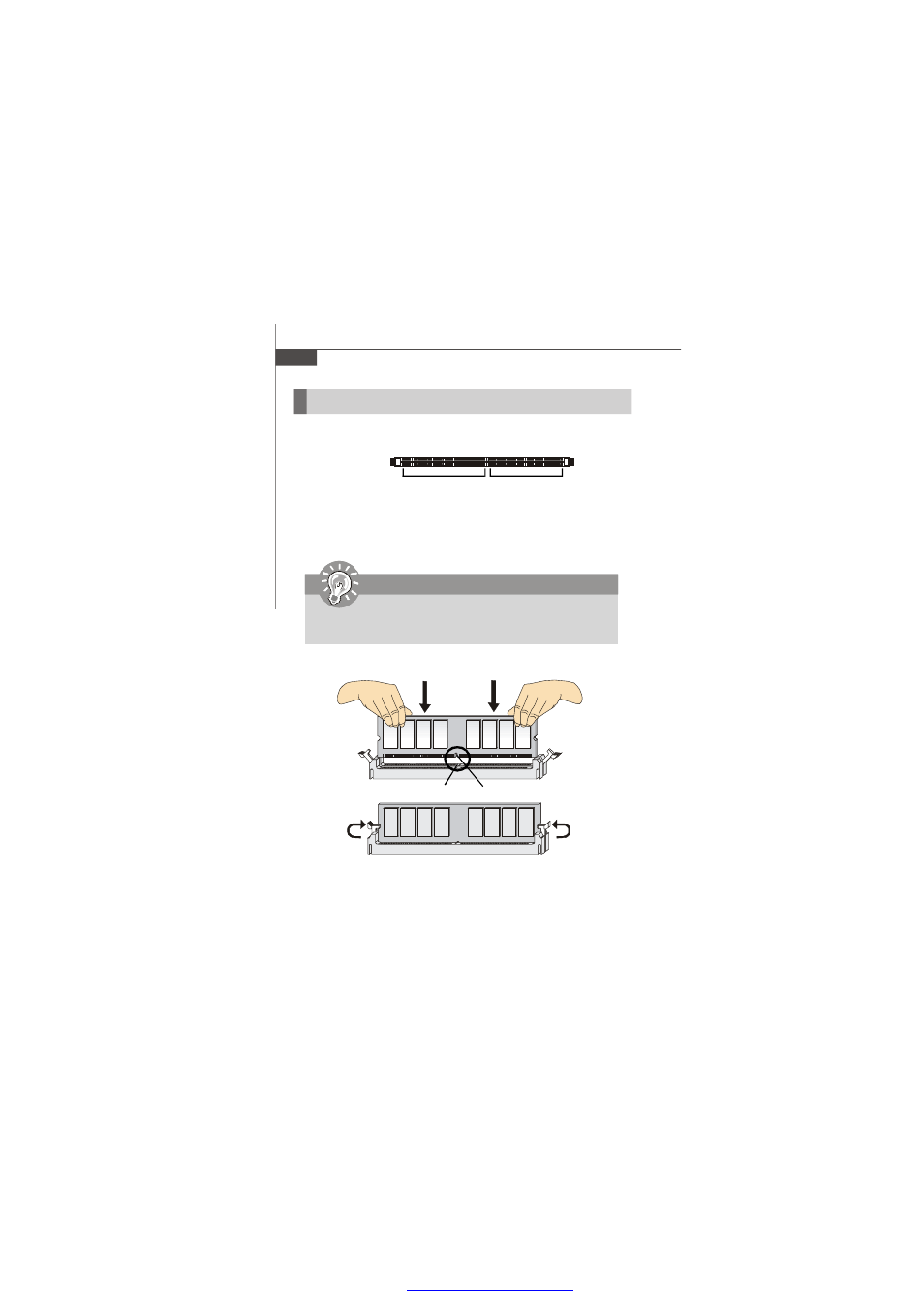

Installing Memory Modules
1. The memory module has only one notch on the center and will only fit in the
right orientation.
2. Insert the memory module vertically into the DIMM slot. Then push it in until the
golden finger on the memory module is deeply inserted in the DIMM slot.
3. The plastic clip at each side of the DIMM slot will automatically close.
Volt Notch
Important
You can barely see the golden finger if the memory module is
properly inserted in the DIMM slot.
