MS-7265 Mainboard
2-14

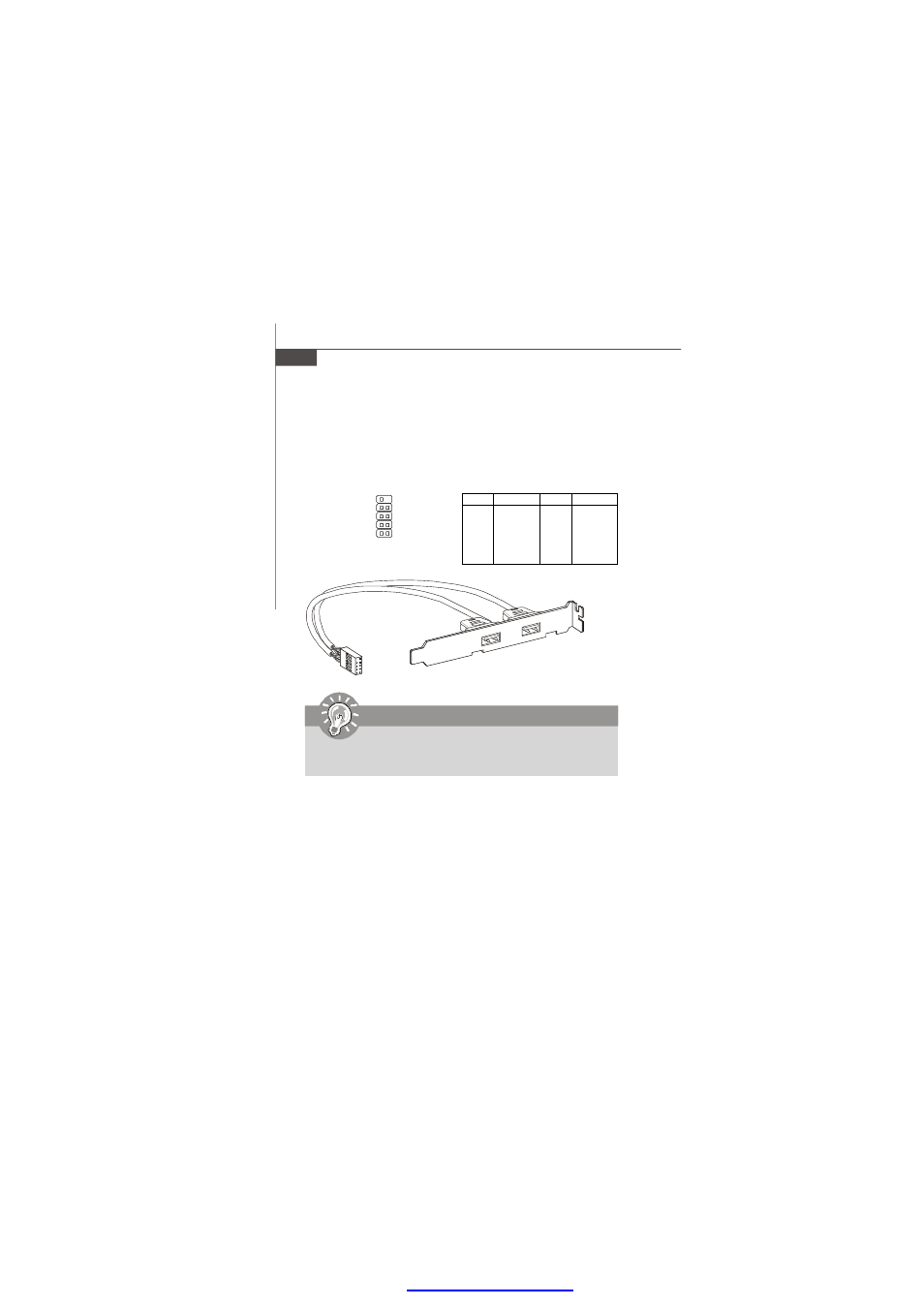

Front USB Connector: F_USB1, F_USB2
This connector, compliant with Intel ® I/O Connectivity Design Guide, is ideal for
connecting high-speed USB interface peripherals such as USB HDD, digital
cameras, MP3 players, printers, modems and the like.
VCC
USB0-
USB0+
GND
Key (no pin)
Pin Definition
2
4
6
8
10
PIN SIGNAL PIN SIGNAL
1
3
5
7
9
VCC
USB1-
USB1+
GND
USBOC F_USB1/2
9 10
1 2
USB 2.0 Bracket
(Optional)
Important
Note that the pins of VCC and GND must be connected correctly
to avoid possible damage.
