Blade Guard retaining
wing nut
Rotate Knob Counter-
clockwise to loosen
Upper
Screw
No Gaps between
Blade and Square

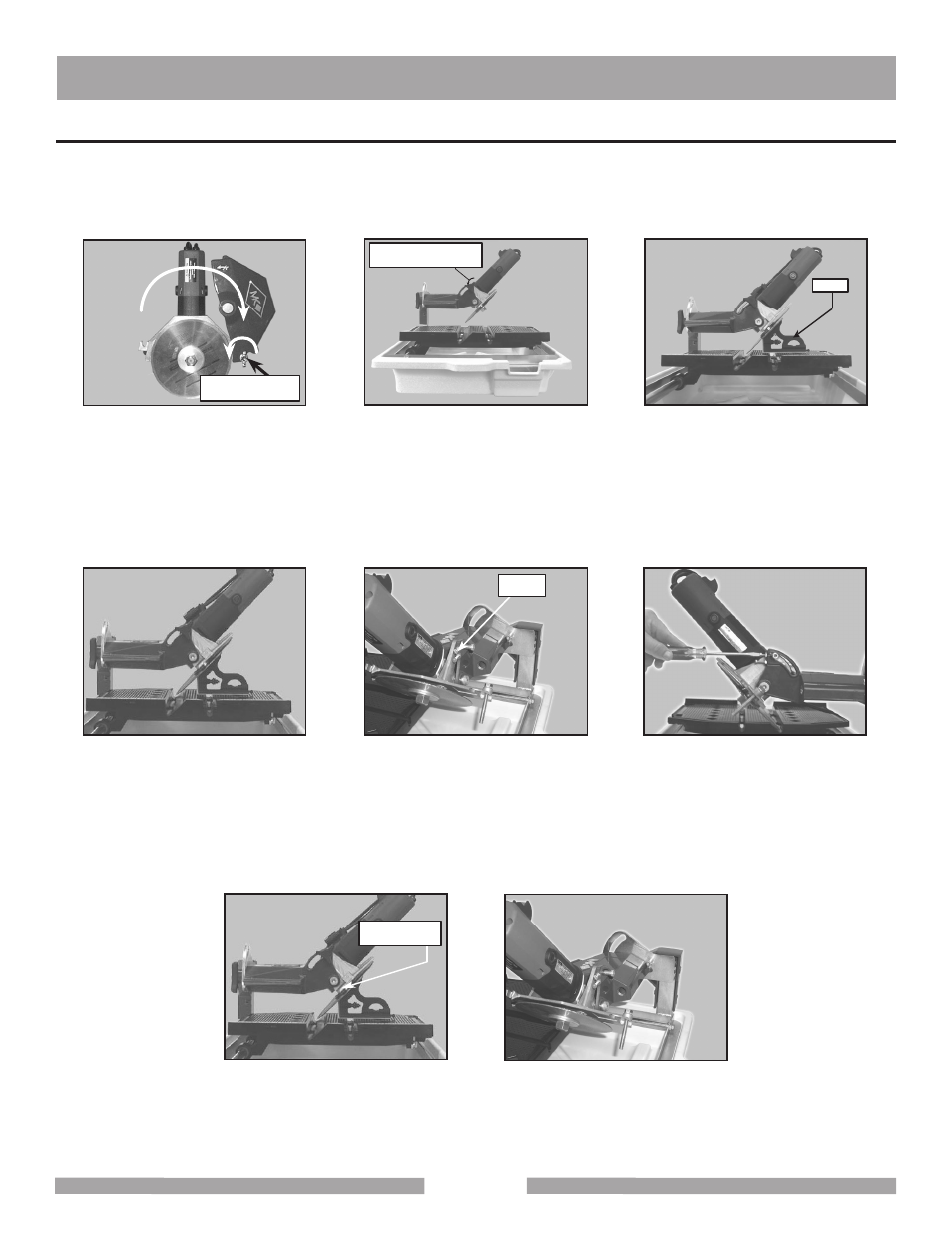

45° ALIGNMENT VERIFICATION
NOTE: If the blade is misaligned following this alignment procedure, return the saw to MK Diamond for
repair. The Diamond Blade must be removed and reinstalled when removing the Blade Guard.
The 45° Alignment Verification is done to ensure the blade will cut tile at a 45° angle.
(B)
Position the Cutting Head
to the 45° Cutting Angle
(A)
Remove Blade Guard
(If not done Previously)
(C)
Place Square on the Movable
Cutting Table and position the
Square against the Blade
(E)
To Adjust 45° Cutting
Angle, locate the
45°Adjustment Screw
(D)
Verify Blade is even
across all points of Square
and there are no gaps
between Blade and Square
(F)
Rotate 45° Adjustment Screw
clockwise or counter-
clockwise to realign 45°
Cutting Angle
(G)
Verify Blade is now even
across all points of Square
(H)
Repeat steps A to G until Blade is
even across all points of Square
Square
MK-370EXP MAINTENANCE & TROUBLESHOOTING
