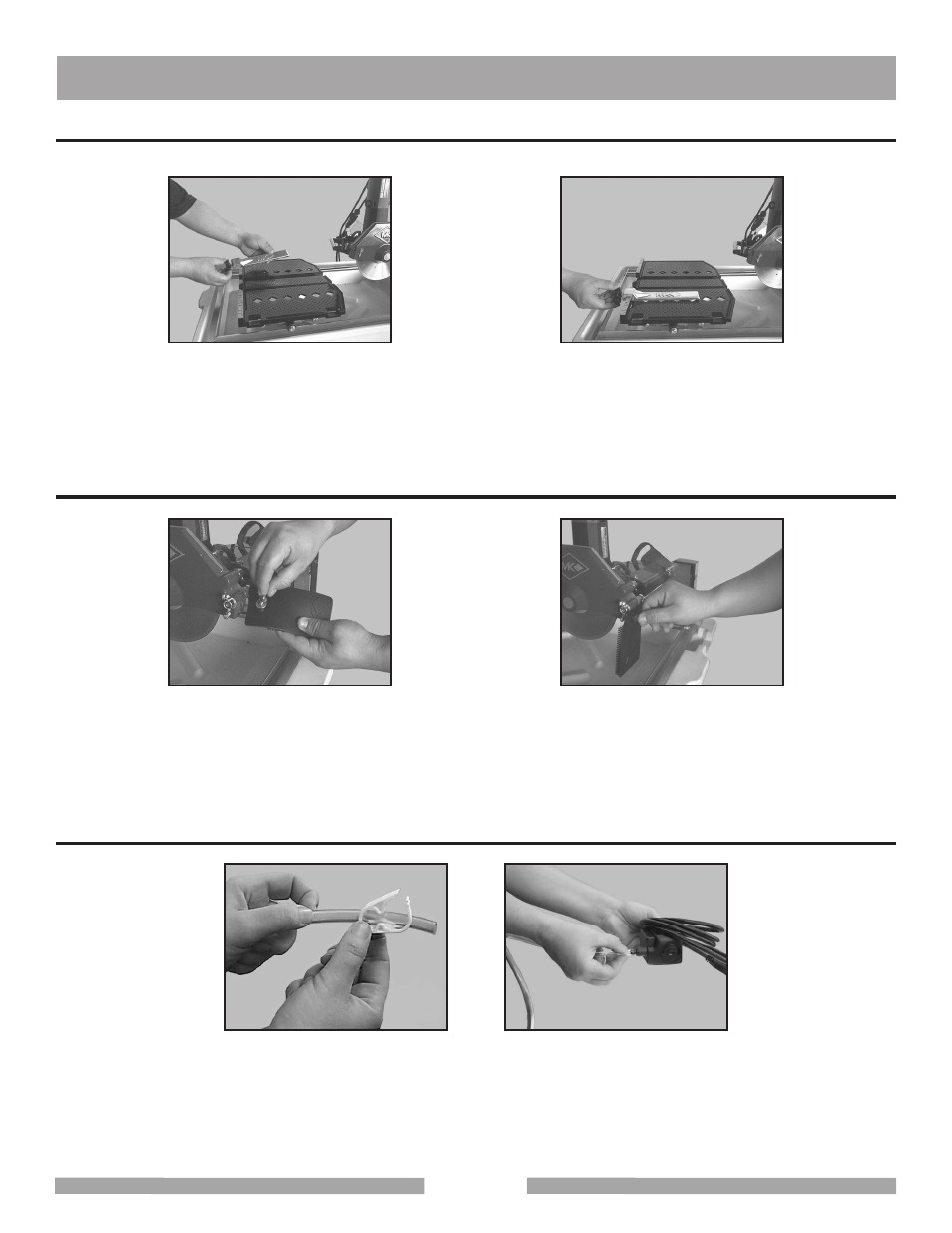

ADJUSTABLE CUTTING GUIDE INSTALLATION
NOTE: The Adjustable Cutting Guide can be used on either side of the Diamond Blade.
(A)
Loosen Adjustable Cutting Guide
retaining thumbscrew and place it
over the Movable Cutting Table,
Ruler/Stop
(B)
Place the Adjustable Cutting Guide
onto the Movable Cutting, Table
Ruler/Stop and tighten the retaining
thumbscrew
SPLASH GUARD INSTALLATION
WATER PUMP PREPARATION
(B)
Press one end of the Cooling
Transfer Tube onto the Water
Pump Discharge Fitting
(A)
Slide Cooling Flow Adjusting
Clamp onto the Cooling
Transfer Tube
(A)
Install the retaining thumbscrew
through the washer and Splash
Guard then align to the hole found
on back of the Blade Guard
(B)
Install the Splash Guard
onto the Blade Guard
MK-370EXP ASSEMBLY
