25

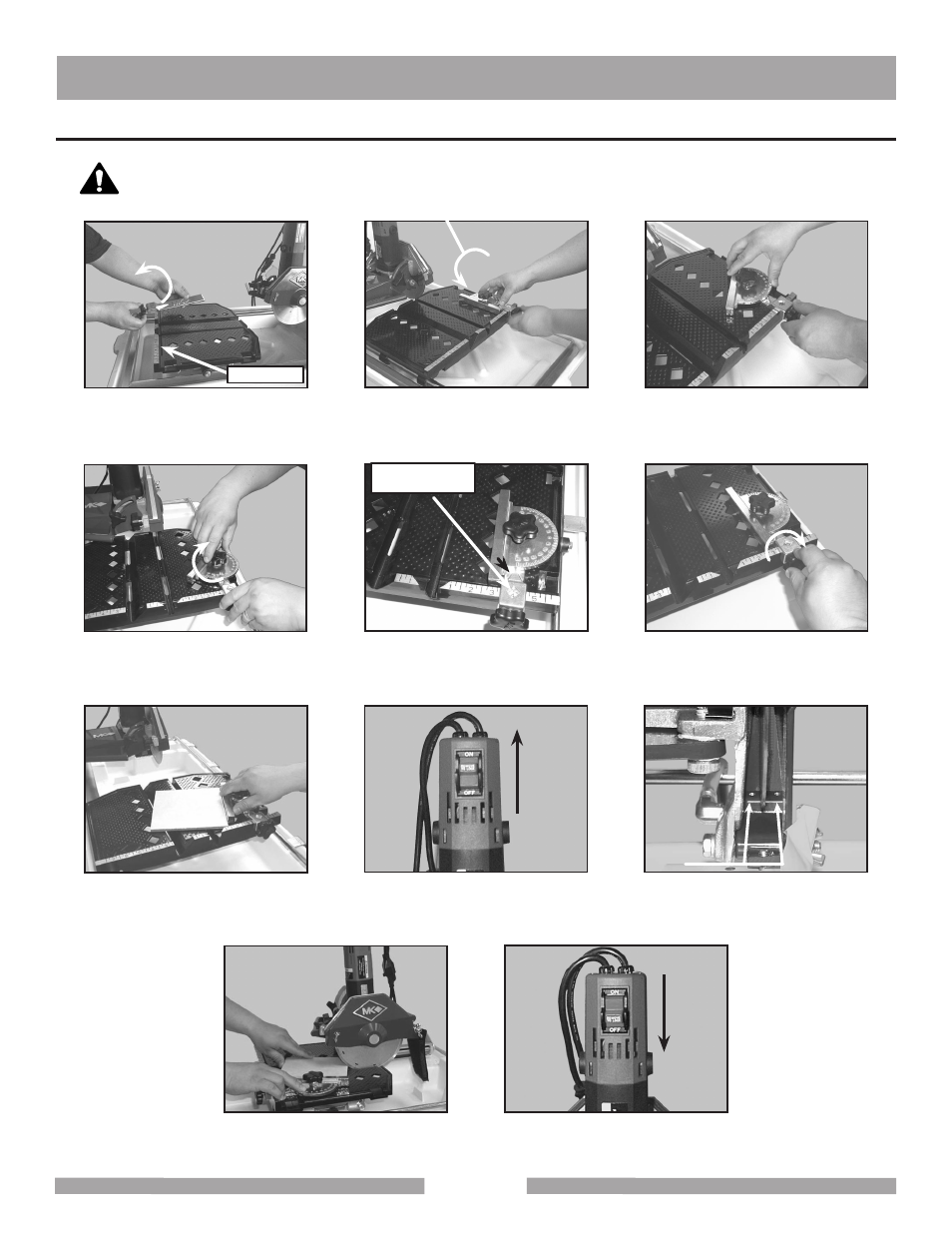

OFF-ANGLE CUTTING
DO NOT FORCE THE TOOL. It will do the job better and safer at the rate for
which it was designed.
NOTE: Use a Protractor (MK Part No. 134569-MK) to cut angles other than 45º angles. (not included)
(B)
Place the Protractor on the Ruler/
Stop. Turn CCW to loosen
(A)
Remove the Adjustable
Cutting Guide
(C)
Set the desired angle on
the Protractor Gage
(E)
Position the Protractor Cutting
Guide to the desired length
(D)
Tighten the Protractor
Gage retaining knob
(F)
Tighten the retaining knob
(H)
Turn the motor ON
(G)
Position the tile against the
Protractor and the Ruler/Stop
(I)
Verify cooling flow on both
sides of the blade
(G)
Perform the cut
(H)
Turn the motor OFF when
work is complete
Ruler/Stop
Desired cut length
indicated here
CAUTION
MK-370EXP ADJUSTMENT & OPERATION
