(D)
Install the Height Adjusting Knob
through the Post into the Cutting
Head and tighten the Knob
15
Follow the assembly instructions to prepare your MK-370EXP for operation.

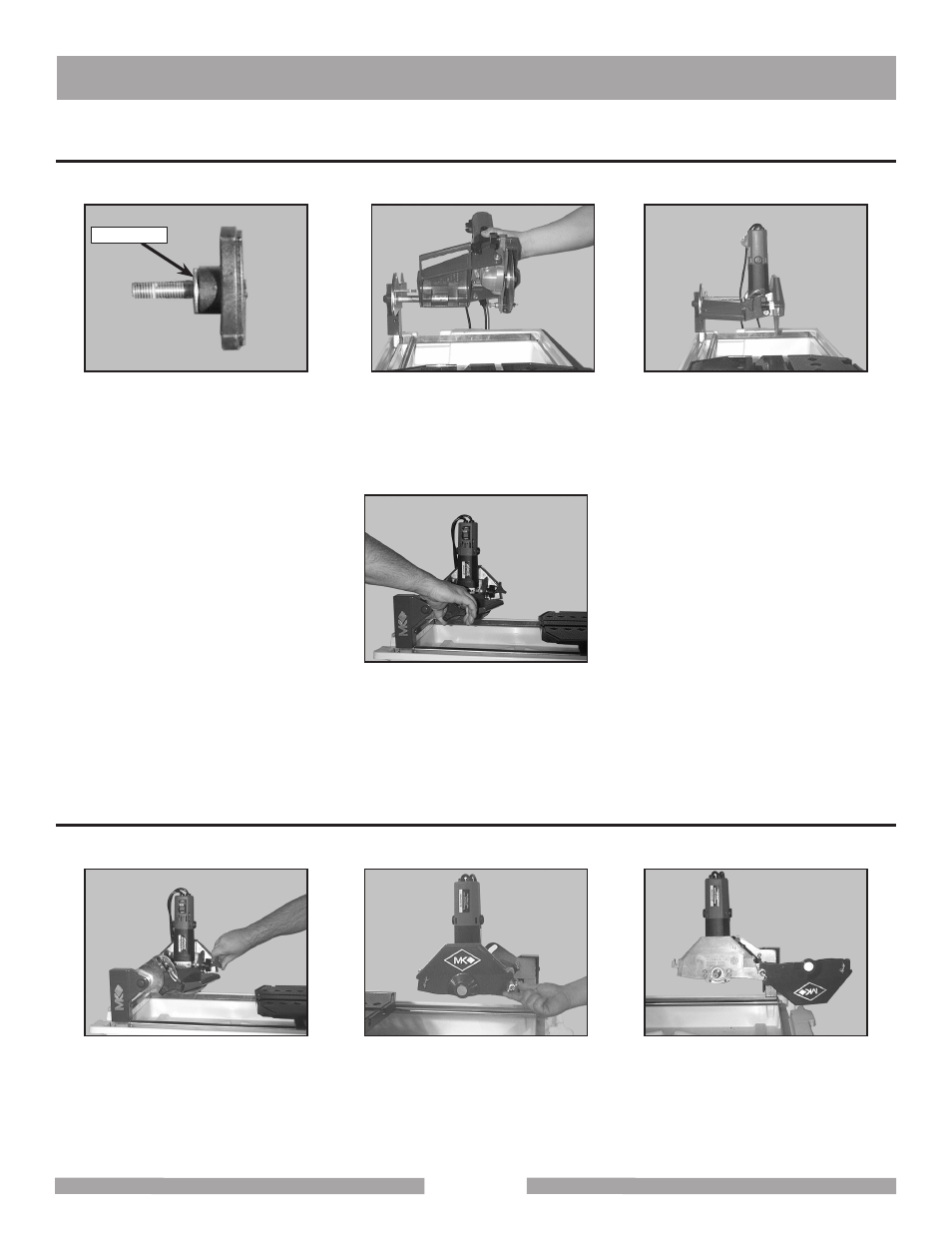

CUTTING HEAD INSTALLATION
(B)
Align Cutting Head Pivot
Hole to the Post, Pivot
Shaft
(A)
Place the Flat Washer onto
the Height Adjusting Knob
(C)
Verify the Cutting Head is
completely installed and
seated on the Post
(B)
Loosen the Blade Guard
Retaining Wing nut
(A)
Loosen and remove the
Blade Guard Retaining
Knob
(C)
Open the Blade Guard
DIAMOND BLADE INSTALLATION
NOTE: When installing the Retaining Screw, do not "cross-thread" and DO NOT over tighten the screw.
Flat Washer
MK-370EXP ASSEMBLY
