36
(B)

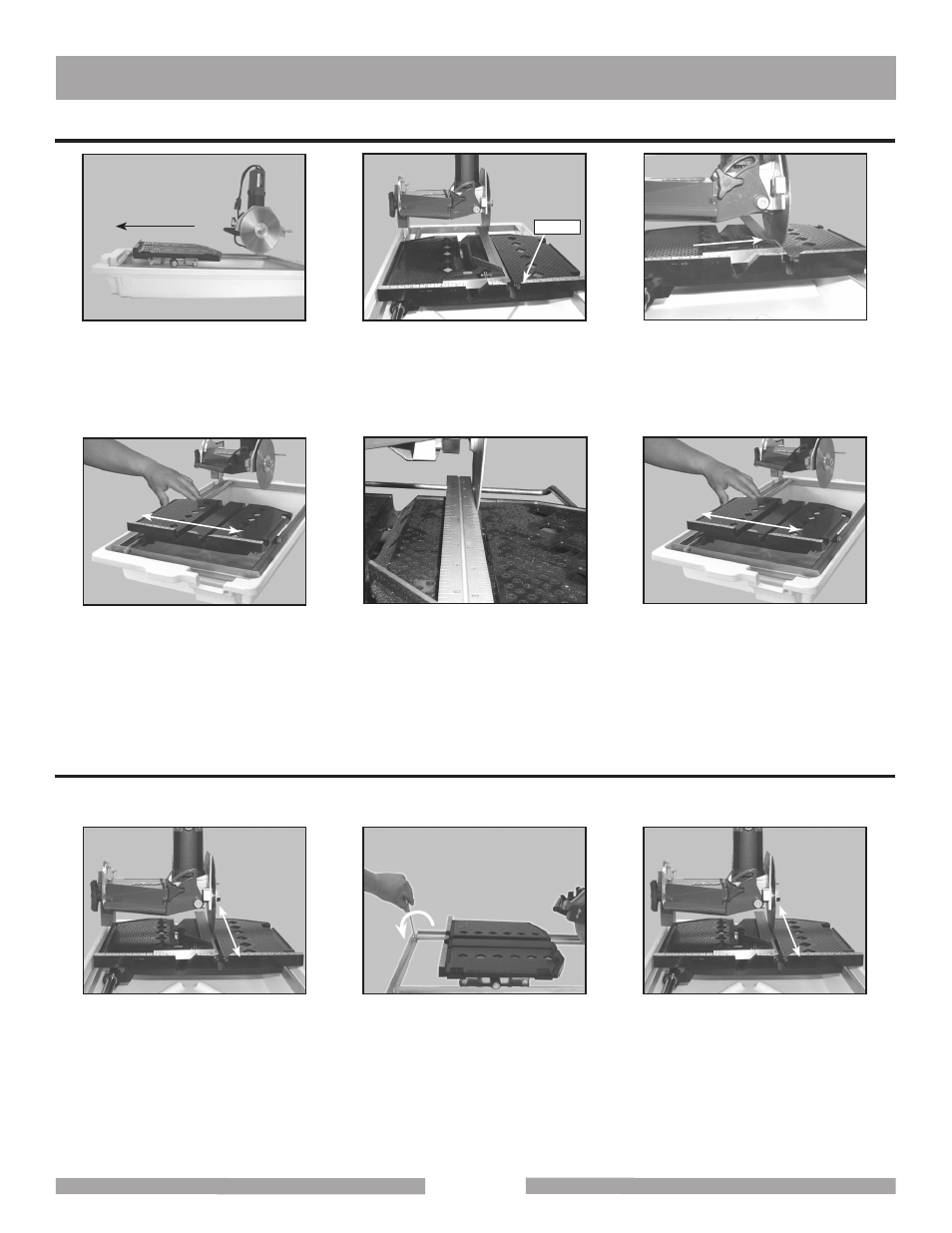

Position Square flat on Movable
Cutting Table against Ruler/
Stop
(A)
Pull Movable Cutting Table
to front of Tile Saw
(C)
Position front of Square
against Blade
(E)
Position end of Square
against Blade
(D)
Move Guide Bar and table
until Square rests evenly
across Blade
(F)
Move Guide Bar and table
until Square rests evenly
across Blade
(B)
Tighten Guide Bar
Retaining Bolts
(A)
Move the Cutting Table
back and forth to verify
Blade is even
across all points of Square
(C)
Move the Cutting Table back
and forth to re-verify Blade
is even across all points of
Square
HORIZONTAL FINAL ALIGNMENT
HORIZONTAL ALIGNMENT VERIFICATION
Ruler/Stop
MK-370EXP MAINTENANCE & TROUBLESHOOTING
