16
(E)

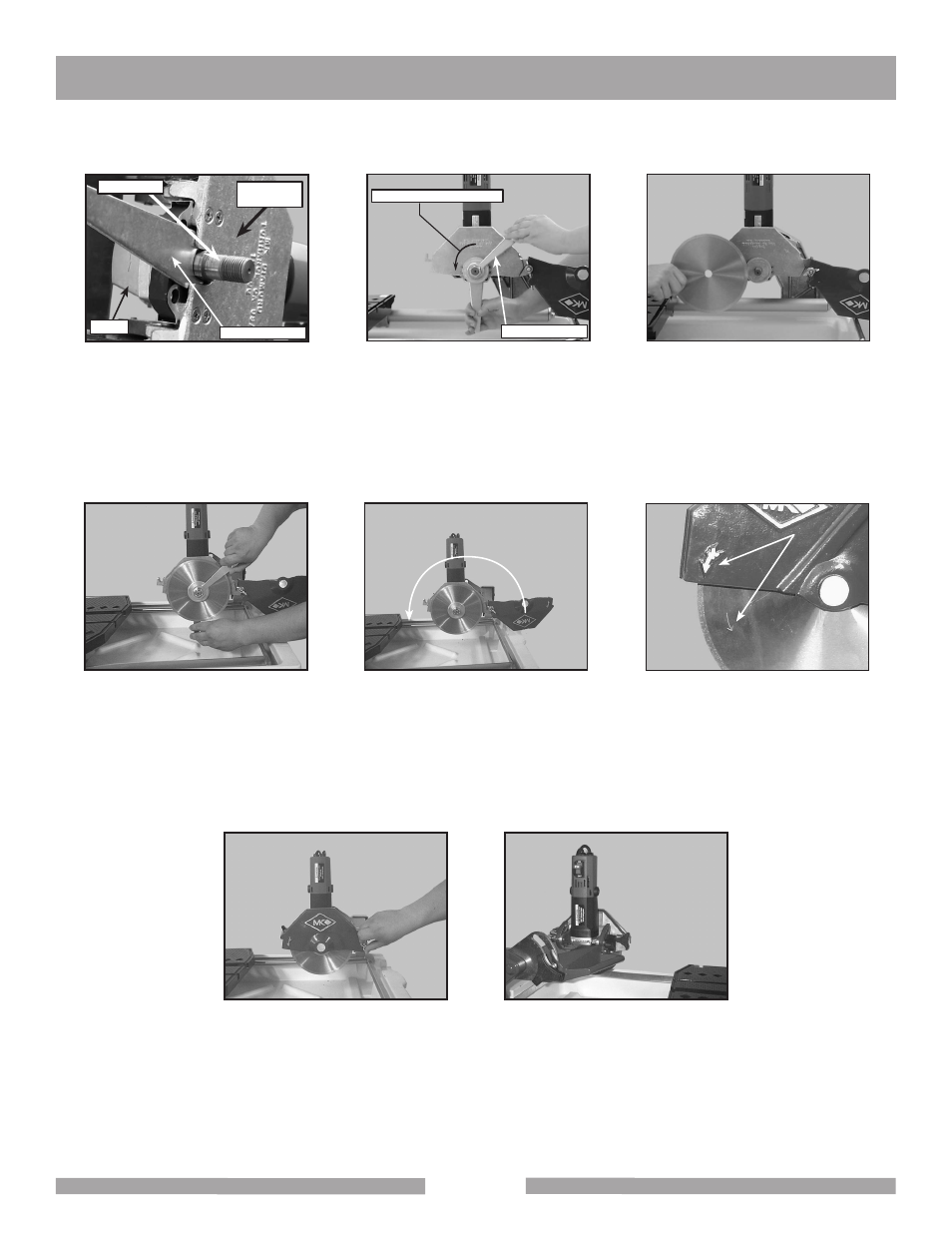

Using the Blade and Shaft
Wrenches, loosen and
remove the Retaining Nut
and Outer Flange
(D)
Place the Shaft Wrench
between the Inner Blade
Guard and the Motor and
onto the Motor Shaft
(F)
Install Diamond Blade
onto Blade Shaft
(H)
Close the Blade Guard
(G)
Install the Retaining Nut
and Outer Flange and then
tighten using the Blade and
Shaft Wrenches
(I)
Verify the Blade is seated
on the Blade Shaft and
direction of rotation is
correct
(K)
Tighten the Blade Guard,
Retaining Knob
(J)
Tighten the Blade Guard
Retaining Wing nut
Motor
Shaft Wrench
Motor Shaft Inner blade
Guard
Blade Wrench
Turn Counter-Clockwise
MK-370EXP ASSEMBLY
