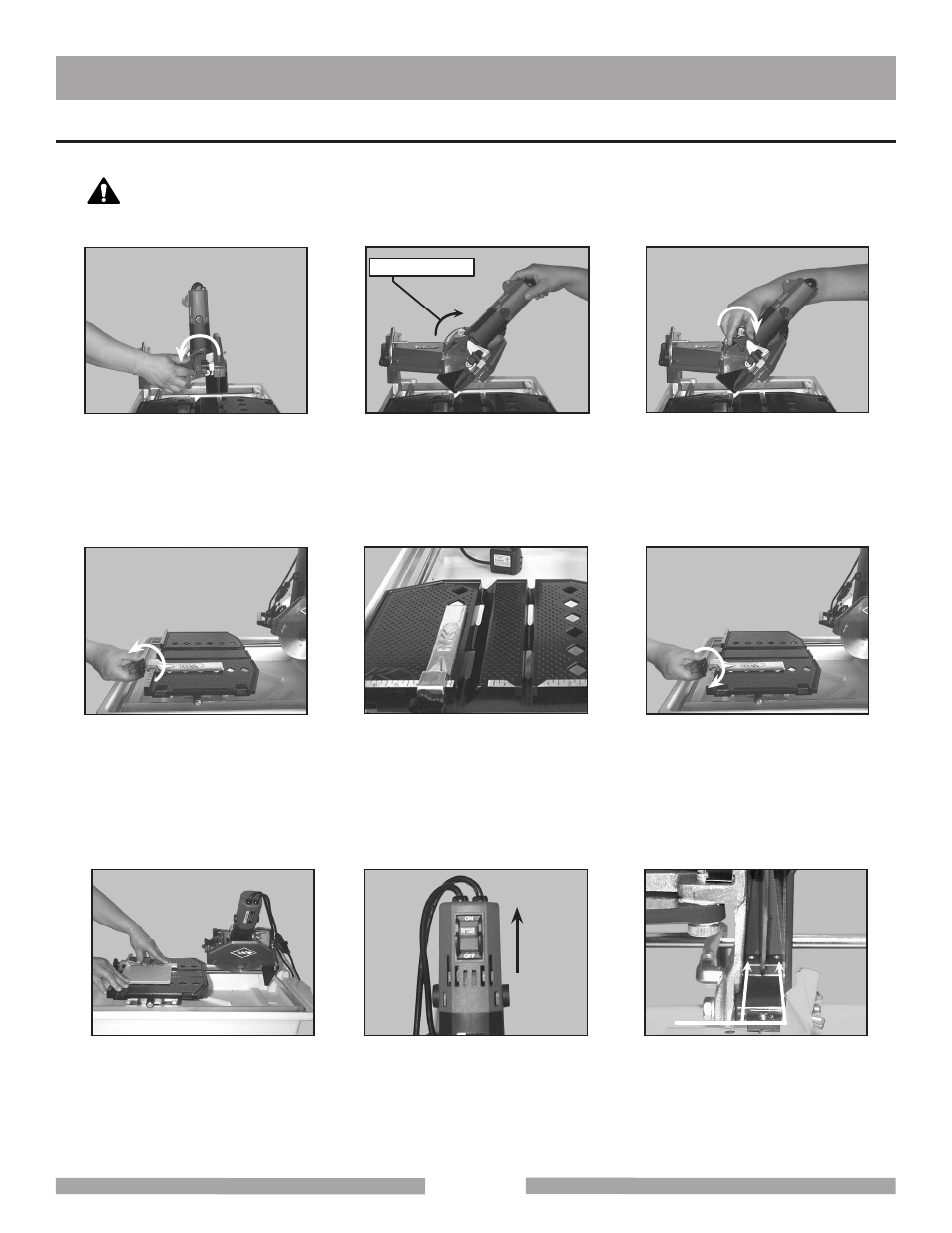

CUTTING 45° MITERS
DO NOT FORCE THE TOOL. It will do the job better and safer at the rate for which
it was designed.
(B)
Pivot the Cutting Head to
the 45º cutting position
(A)
Loosen the Cutting Head
Pivot, Retaining Knob
(C)
Tighten the Cutting Head,
Pivot Retaining Knob
(E)
Position the Adjustable
Cutting Guide to desired
cut length
(D)
Loosen the Adjustable
Cutting Guide retaining
thumbscrew
(F)
Tighten the retaining
thumbscrew
The MK-370EXP is designed with an adjustable Cutting Head for precision 45º Miter Cuts.
(H)
Turn the motor ON
(G)
Place the tile against the
Ruler/Stop and Cutting
Guide
(I)
Verify cooling flow on both
sides of the blade
Pivot Direction
CAUTION
MK-370EXP ADJUSTMENT & OPERATION
