1 - 6
1. FUNCTIONS AND CONFIGURATION

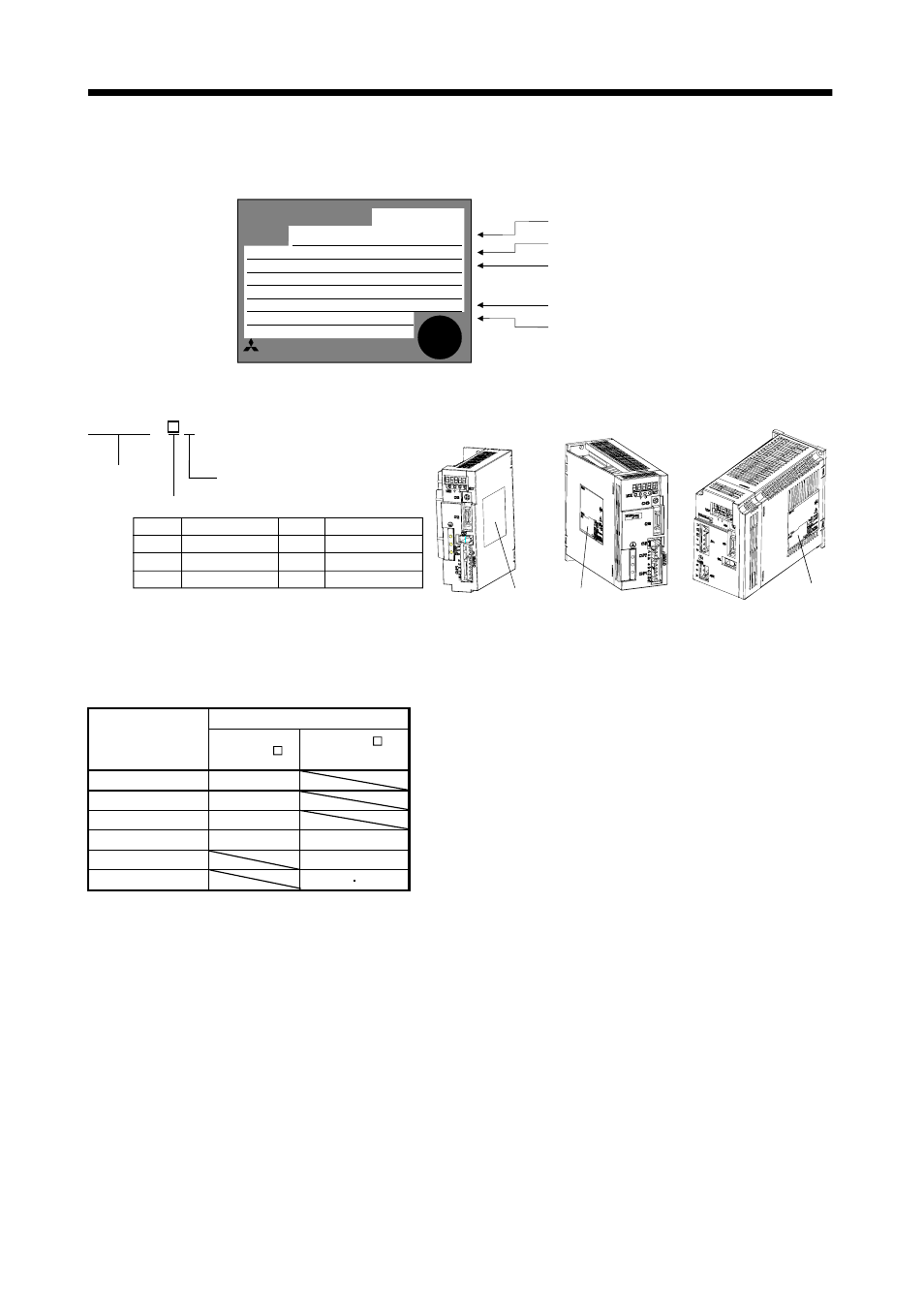

1.5 Model code definition
(1) Rating plate
MR-E-40A
MITSUBISHI
AC SERVO
MADE IN JAPAN
MODEL
MITSUBISHI ELECTRIC CORPORATION
AC SERVO
PASSED
POWER
INPUT
OUTPUT
SERIAL
:400W
:2.6A 3PH200-230V 50Hz
:2.6A 3PH200-230V 60Hz
:170V 0-360Hz 2.8A
:XXXXYYYYY
:TCXXXAYYYGZZ
:
Model
Capacity
Applicable power supply
Rated output current
Serial number
(2) Model
70 750
40 400
10 100
20 100 200 1000
200 2000
MR-E-200A MR-E-40A or less MR-E-70A, 100A
Rating plate Rating plate
Rating plate
Series
Rated output
General-purpose interface
Symbol Rated output [W] Symbol Rated output [W]
- A MR - E
1.6 Combination with servo motor
The following table lists combinations of servo amplifiers and servo motors. The same combinations apply
to the models with electromagnetic brakes and the models with reduction gears.
Servo motors
Servo amplifier
HC-KFE
HC-SFE
2000r/min
MR-E-10A 13
MR-E-20A 23
MR-E-40A 43
MR-E-70A 73 52
MR-E-100A 102
MR-E-200A 152 202
