CLEARANCES and HEIGHT REQUIREMENTS

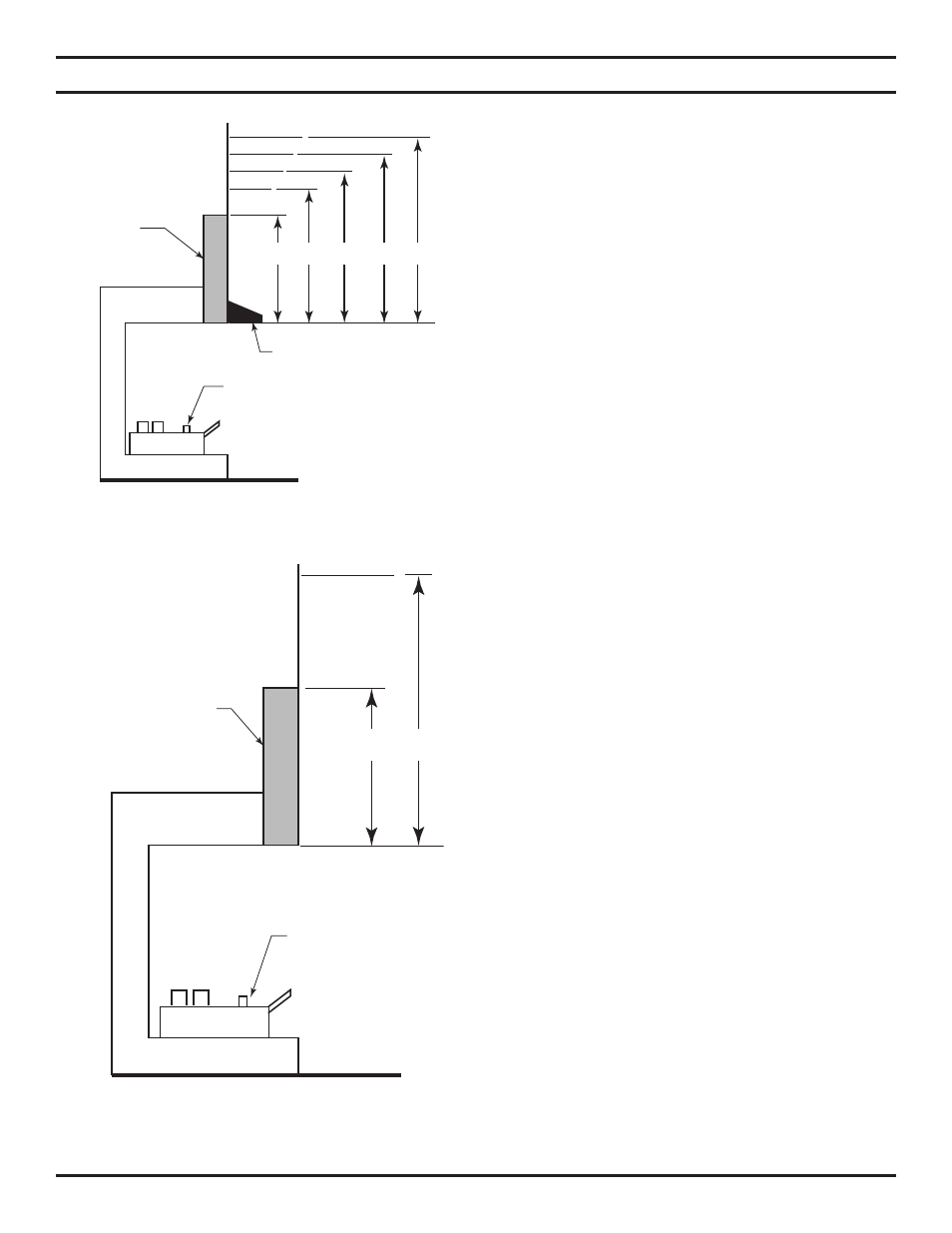

Figure 7 - Minimum Mantel Clearance with Hood - All Models
Example: A mantel may project from the wall a maxi-
mum of 2 1 /
2
" at a minimum of 8" above the
opening, and a maximum of 6" at a minimum
of 14 1 /
2
" above the opening.
10"
12"
8"
6"
2
1/2 "
8" 14 1/2 "18 5/8 " 22 1/2 " 26"
FP1999
min. mantel clearance
Heat
Resistant
Material
Hood
Heater in
Fireplace or
Firebox
FP1999
Figure 8 - Minimum Mantel Clearance with No Hood — MJ27
Example: The bottom of the mantel may project
from the wall a maximum of 10" at a
minimum of 28" above the opening.
12" min. 28"
FP2001
minimum mantel clearance no hood
Heat Resis-
tant Material
Heater in Fire-
place or Firebox
FP2001
10" or Less
