Installation and User Manual
1 — 5 86-173010-00 A00

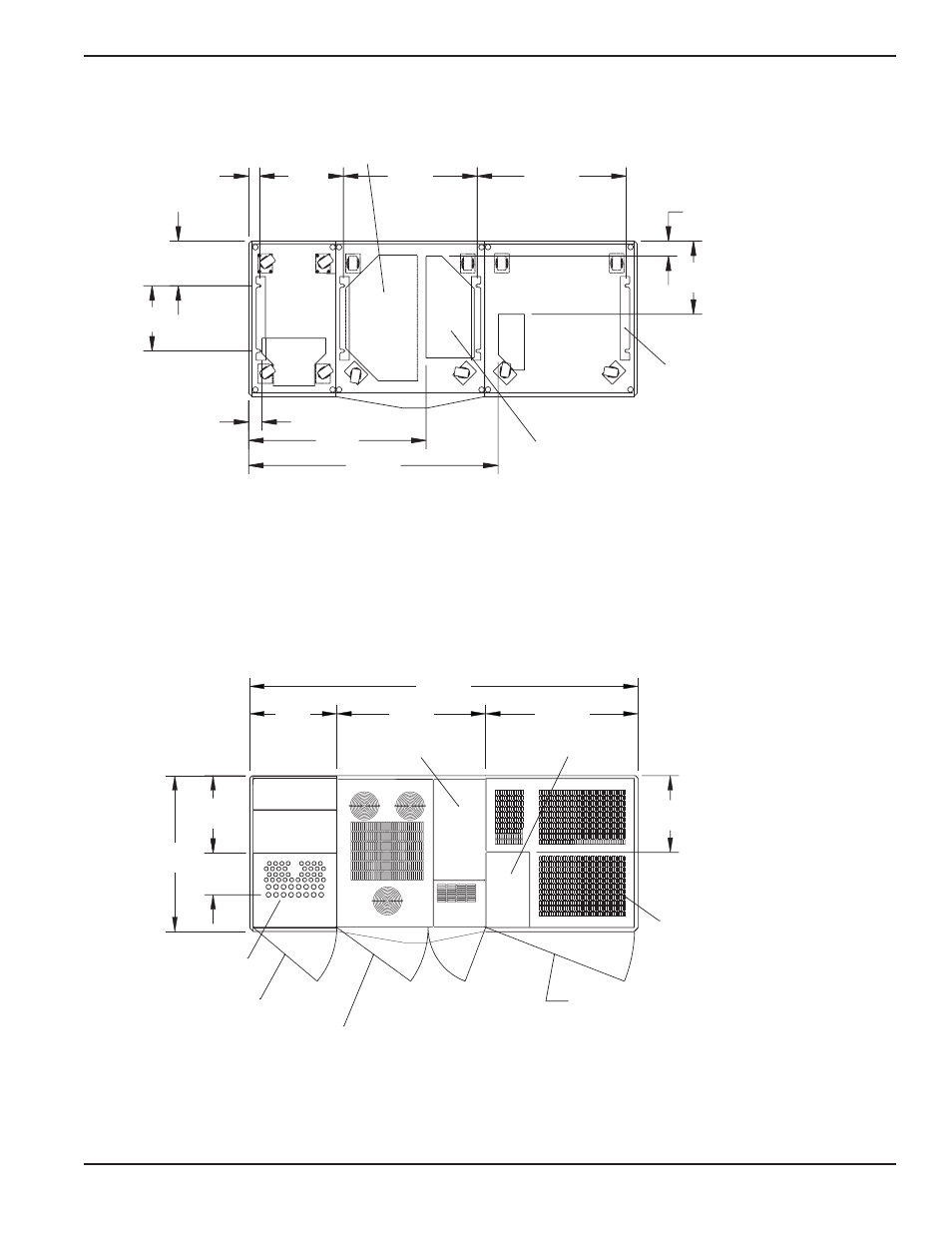

Figure 1-4: Configuration for Bottom Entry.
1.10 Conduit Plate Locations for Top Entry
The UPS cabinet for the Galaxy 4000 is capable of accepting power input and output cables through a top entry.
The conduit plate on the top of the cabinet provides provisions for knockouts for conduit and is secured to the
cabinet with screws. See Figure 1-5.
Figure 1-5: Configuration for Top Entry.
26W BATTERY
(33W BATTERY) DISTRIBUITION
UPS
(16) x 1.125 K.O.
(34) .857 K.O.
AIR EXHAUST
DO NOT BLOCK
16.5 16.7
8.9
33.5
18.8 32.0
76.5
(83.5)
25.0
(32.0)
9 x 20.5
CONDUIT 10 x 20.5
CONDUIT
AIR INTAKE
DO NOT BLOCK
SEISMIC BRACKET (optional)
(4 PLCS)
CABLE ENTRY PLATE
2.4 18.0 28.8
25.0
(32.0)
9.6
14.0
2.9
38.1
46.6
(53.6)
3.2
15.7
Introduction
