Marathon Monitors Inc.
AACC 2000 Carbon Nov. 1, 1997
72

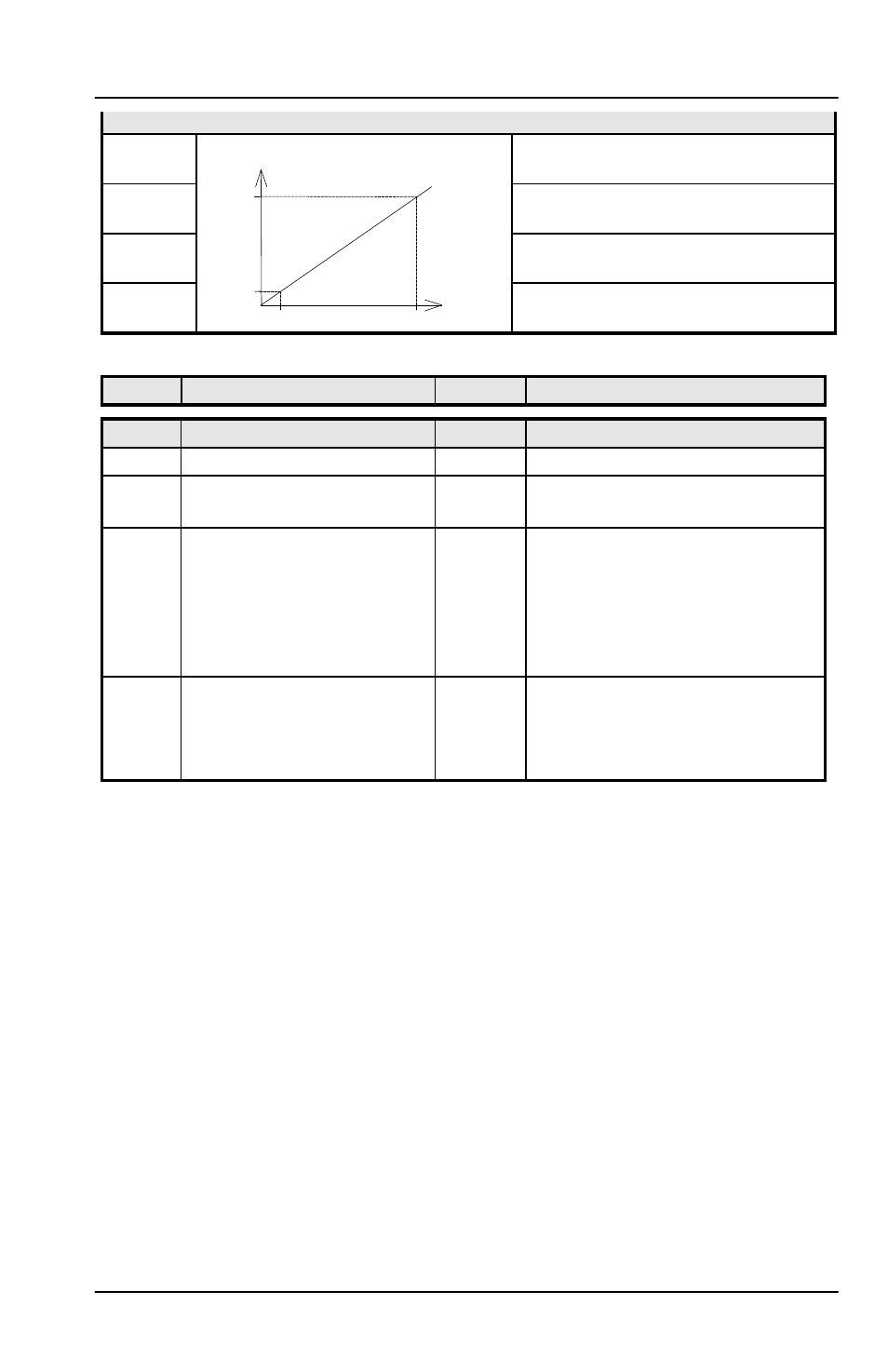

Linear Input Scaling
−
The next 4 parameters only appear if a linear or sq rt input is chosen.
inp.L
Input value low
inp.H
Input value high
VAL.L
Displayed reading low
VAL.H
Displayed reading high
Name Description Values Meaning
SP SP
Setpoint configuration
nSP
Number of setpoints
2, 4, 16
Select number of setpoints available
rm.tr
Remote Tracking
OFF
Disable
trAc
Local setpoint tracks remote setpoint
m.tr
Manual Track
OFF
Disable
trAc
Local setpoint tracks PV when in
manual
rmP.U
Setpoint rate limit units
PSEc
Per second
Pmin
Per minute
PHr
Per hour
rmt
Remote setpoint configuration
nonE
Disable
SP
Remote setpoint
Loc.t
Remote setpoint + local trim
rmt.t
Remote trim + local setpoint
inP.H inP.L
VAL. H
Displayed Value
VAL. L
Electrical
Input
