All electrical connections are made to the screw terminals at the rear of the controller. If
you wish to use crimp connectors, the correct size is AMP part number 349262-1. They
accept wire sizes from 0.5 to 1.5 mm
2
(16 to 22 AWG). A set of connectors is supplied with
the controller. The terminals are protected by a clear plastic hinged cover to prevent hands,
or metal, making accidental contact with live wires.
Rear terminal layouts
The rear terminal layouts are shown in Figure 1-6. The right-hand column carries the
connections to the power supply, digital inputs 1 and 2, alarm relay and sensor input. The
second and third columns from the right carry the connections to the plug-in modules. The
connections depend upon the type of module installed, if any. To determine which plug-in
modules are fitted, refer to the ordering code and wiring data on the controller side labels.

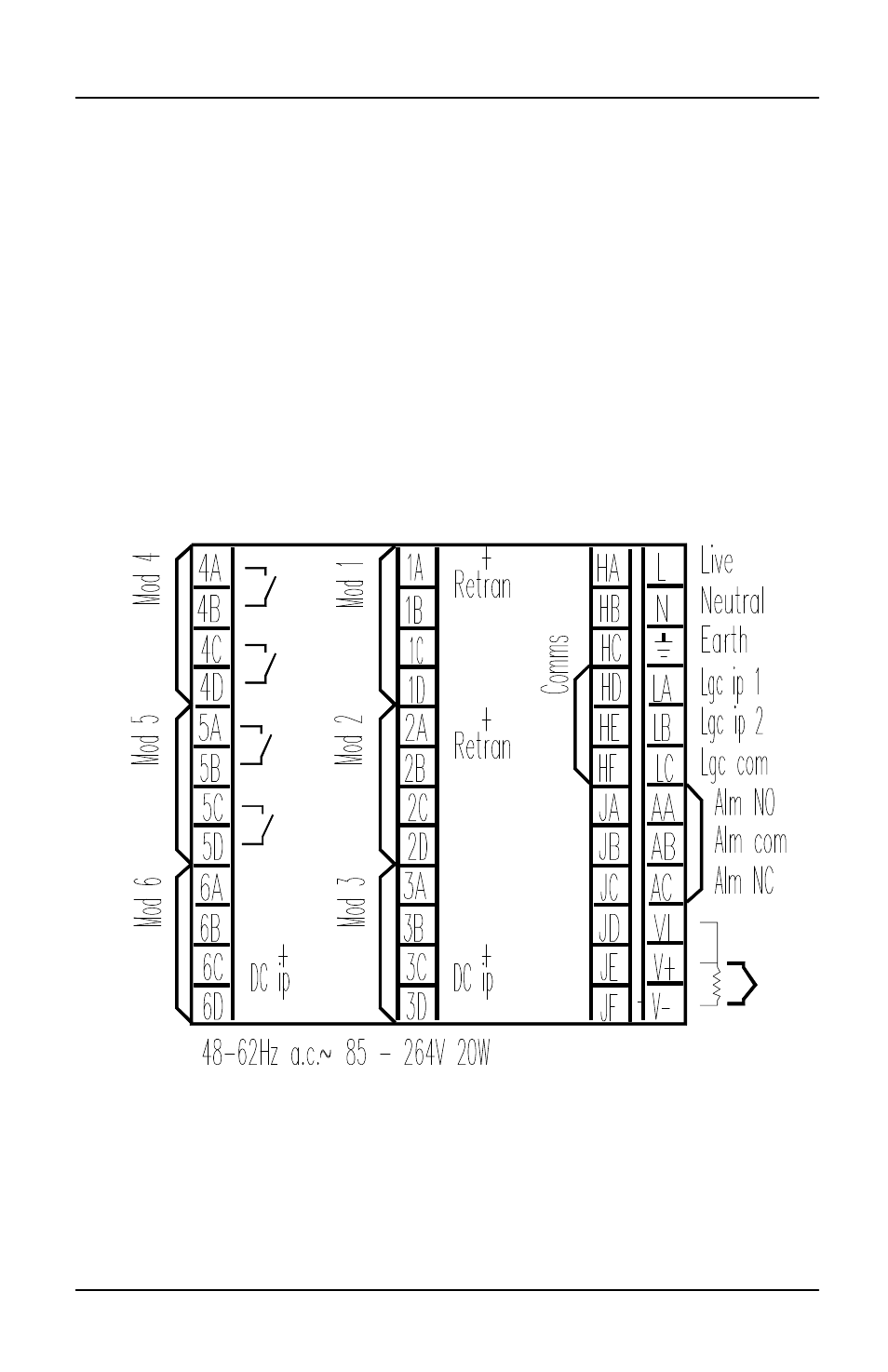

Model AACC 2000 rear terminal layout
Figure 1-6 Rear terminal layout
