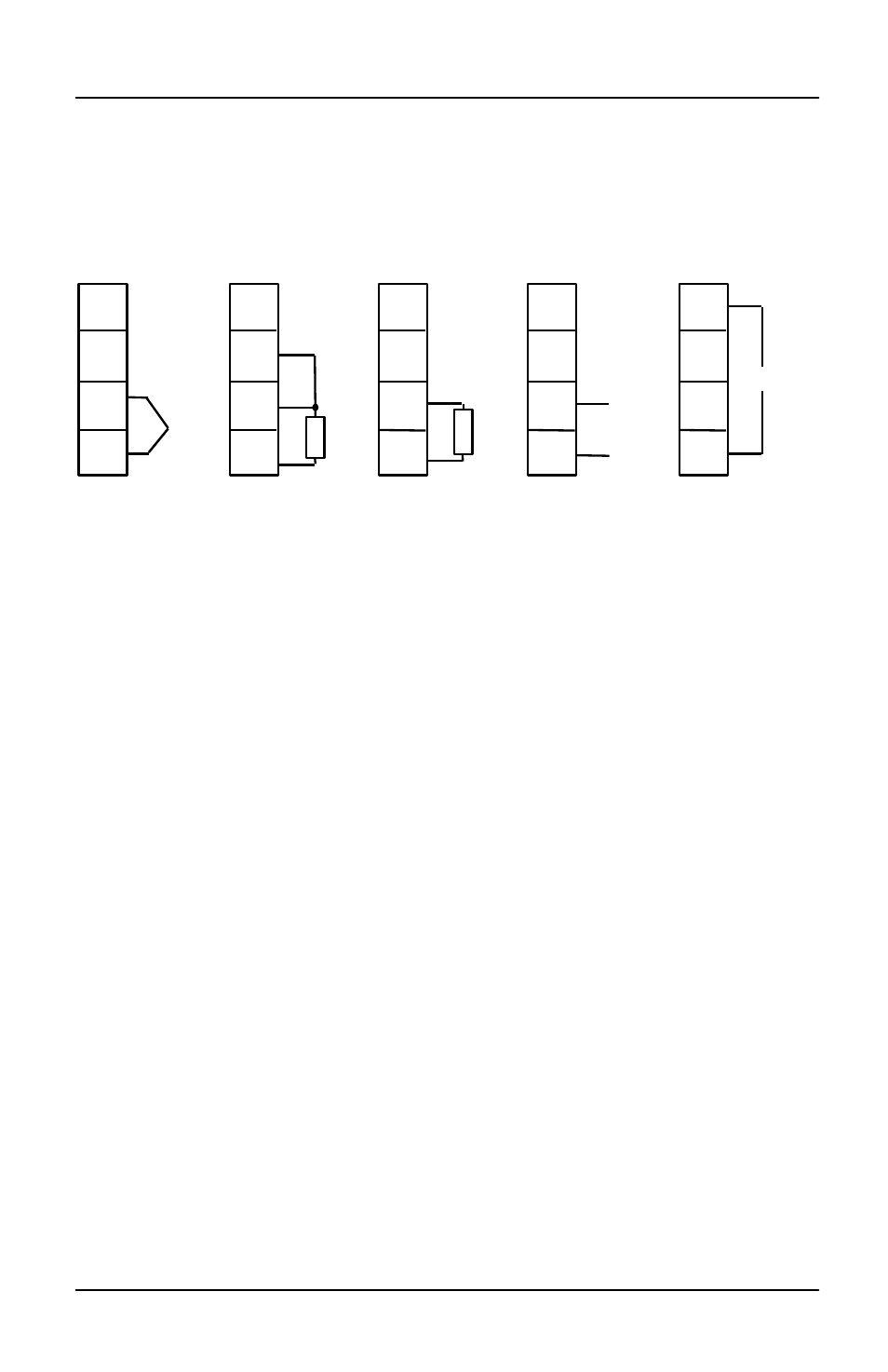

C onnections for Process Value 3 in module position 3
The diagrams above show the connections for the various types of input.
The input will have been configured in accordance with the ordering code.
Figure 1-8 Connections for Process Value 2 (PV2)
Volts or
mV inputs
+
−
0-1.6Vdc
High Impedance
or mVdc
3B
3C
3D
3A
10V inputs
+
-
0-10Vdc
3B
3C
3D
3A
Thermocouple
3B
3C
3D
3A
−
Current
sense
resistor
2.49
Ω
mA input
3B
3C
3D
3A
+
−
Resistance
thermometer
3B
3C
3D
3A
