HDV Series Direct Vent Gas Fireplace

5

56D3048

RePlACeMeNt PARtS

1

5

10

3

2

4

6

9

8

13

7

12

11

11

563048

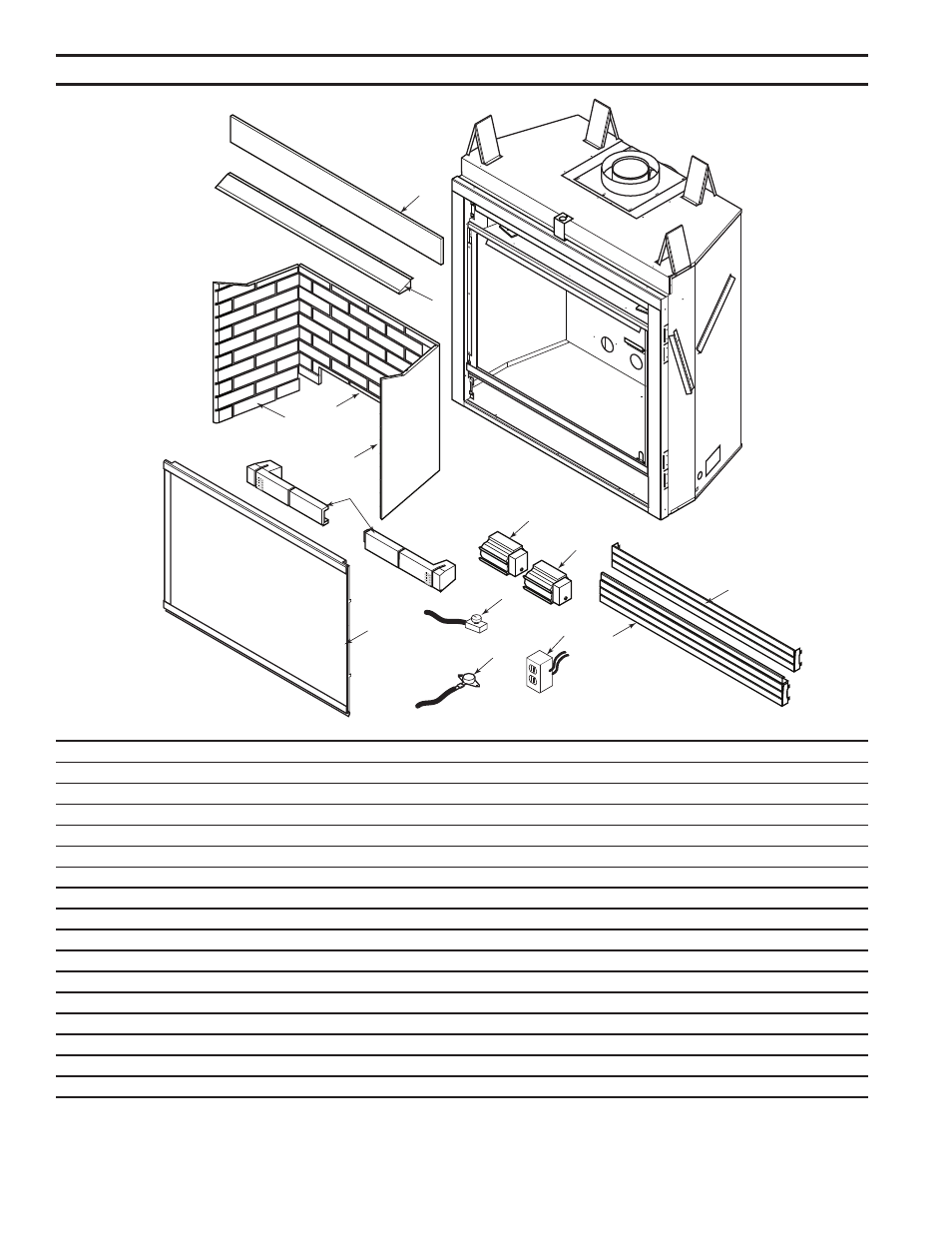

HDV firebox parts

FIReBox CoMPoNeNtS

Ref.

Description

qty.

HDV500

1.

Junction Box Assy.

1

6D18K

.

Top Louver Assy.

1

56D140K

3.

Bottom Louver Door Assy.

1

56D141K

4.

Glass Frame Assy.

1

56D3050

5.

Canopy

1

56D056K

6.

Firebrick Floor

1

56D3055

7.

Insulation Board

1

56D156K

8.

Firebrick Center

1

56D030K

9.

Firebrick Right

1

56D031k

10.

Firebrick Left

1

56D03K

Accessories / Field Installed options

11.

Blower*

56D16K

1.

Thermostat Sensor*

1

6D870K

13.

Speed Control*

1

6D0746K

11,1,13. T-Stat Blower w/ Speed Control*

1

BLOTSDV

11.

SCS Blower

1

BLOTBLDVSC

* Blower is a standard feature in HDV500RNV and HDV500RPV models.
